    Upgrade memory on HPg7z2100 laptop

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Lmc1200, Sep 27, 2012.

  1. Lmc1200

    Lmc1200 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi,

    I just purchased an HP g7z2100 Laptop and want to upgrade the memory. I bought the memory but am trying to determine where the memory is located. There is a section on the back with one screw, but when I try to unscrew it the screw will not come all the way out. The section has HP ProtectSmart on it. Can anyone tell me where the memory is on this model? On the back or under the keyboard? Just don't want to break something trying to do a simple upgrade. Appreciate any feedback.

    Lynda

    Lmc1200, Sep 27, 2012
    #1
  2. Atom Ant

    Atom Ant Hello, here I go again

    Reputations:
    1,340
    Messages:
    1,497
    Likes Received:
    272
    Trophy Points:
    101
    Hi,

    It's good idea to upgrade your memory to achieve Full speed of your laptop.

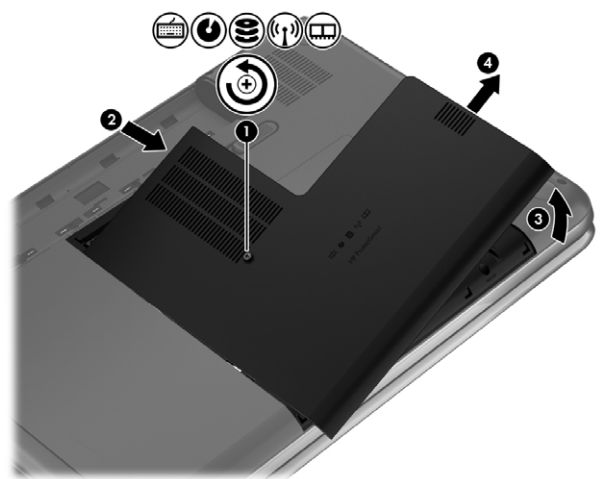

    The memory slots are under the backplate;

    1. Using a small Phillips screwdriver, loosen the service door capture screw. The screw won't coming out, bat that is Ok.
    2. Slide the service door forward slightly and lift the front right corner to tilt the service door.
    3. Remove the service door at an angle.

    [​IMG]

    Atom Ant, Sep 27, 2012
    #2
  3. kisetsu17

    kisetsu17 Took me long enough

    Reputations:
    289
    Messages:
    780
    Likes Received:
    2
    Trophy Points:
    31
    AKA it's really not meant to go out all the way--this is so you won't lose the screw for the backplate.

    kisetsu17, Sep 27, 2012
    #3
