    Used GPUs

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by InOrderToSignIn, Sep 2, 2017.

  1. InOrderToSignIn

    InOrderToSignIn Notebook Consultant

    Reputations:
    21
    Messages:
    221
    Likes Received:
    94
    Trophy Points:
    41
    When you purchase a used gpu do they usually come with the two bolts/screws that fix the gpu to the board?

    In YouTube videos it looks like people use these fancy bolt looking things, but would a simple screw suffice? If so about what size?

    I'm not talking about the screws for the heat sink. Will upload a picture to see if that helps.

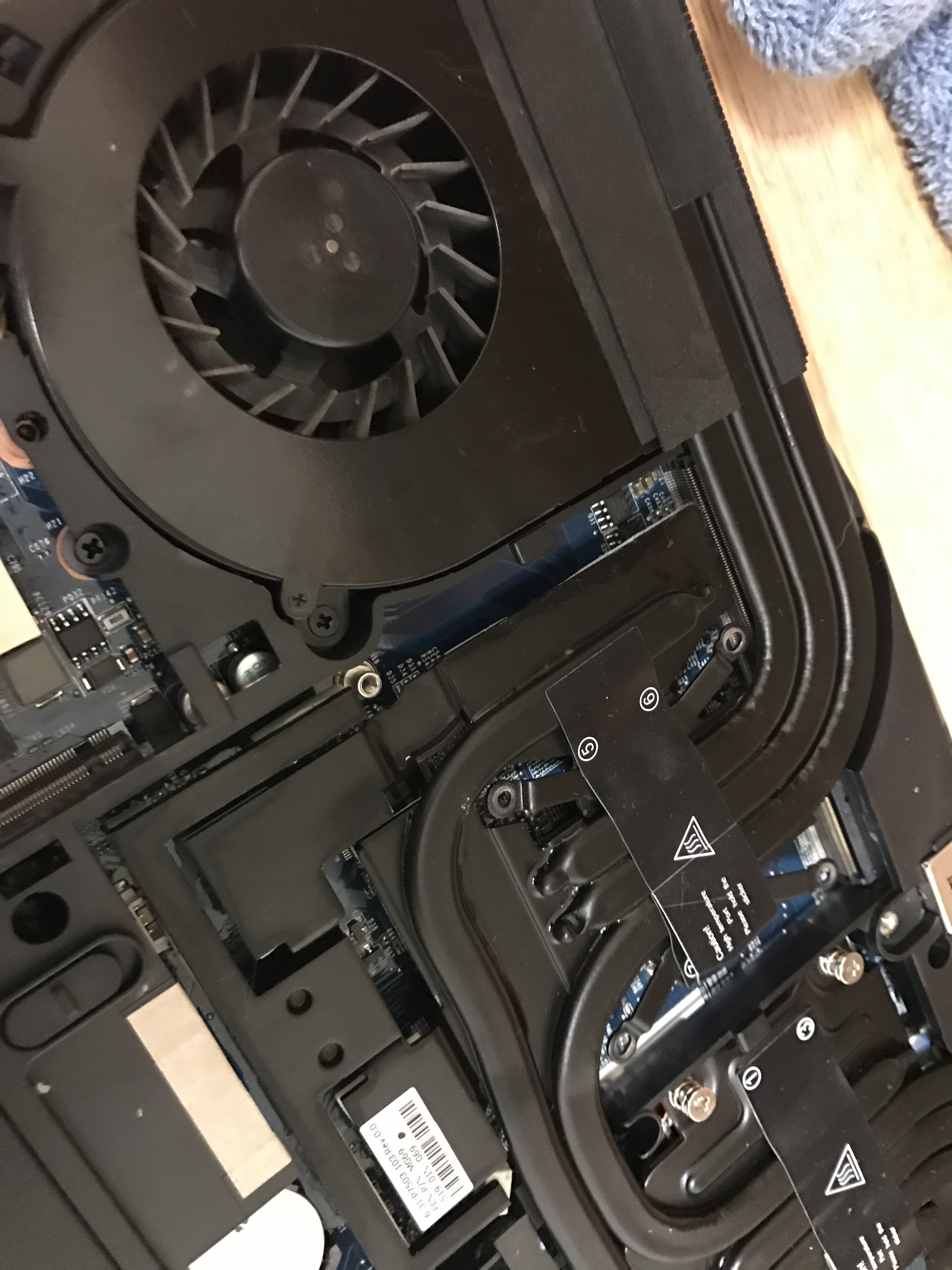

    In the picture, I'm talking about the threaded hole between the heat sink and fan on the left. There's a similar one on the right out of view.

    I'm sure having a few extra laying around wouldn't be a bad thing either.


    Attached Files:

    Last edited: Sep 3, 2017
    InOrderToSignIn, Sep 2, 2017
    #1
  2. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    Find service manual (not user manual) for your laptop

    Go to exploded diagrams/part lists, find the screw on the diagram (probably "VGA" page)

    Look up the part number, it will probably also tell you the thread and length of the screw (e.g. M2.5x6mm)

    Buy on ebay/aliexpress etc

    bennyg, Sep 4, 2017
    #2
    InOrderToSignIn likes this.
  3. InOrderToSignIn

    InOrderToSignIn Notebook Consultant

    Reputations:
    21
    Messages:
    221
    Likes Received:
    94
    Trophy Points:
    41
    Thanks! Doubt I would have been able to find them in stores :)

    InOrderToSignIn, Sep 4, 2017
    #3
