    Using 2.5inch external HD as internal?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by LT21, May 18, 2008.

  1. LT21

    LT21 Notebook Consultant

    Reputations:
    0
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    Is this possible? I plan on getting a 2.5 inch external hard drive. Can I take it out of its case and put it in my inspiron 1520?

    LT21, May 18, 2008
    #1
  2. powerpack

    powerpack Notebook Prophet

    Reputations:
    7,101
    Messages:
    5,757
    Likes Received:
    0
    Trophy Points:
    0
    Should work if all are standard form factor. Is it really most economical to do that way? Why are you not just buying a replacement HDD?

    powerpack, May 18, 2008
    #2
  3. leaftye

    leaftye Notebook Consultant

    Reputations:
    135
    Messages:
    283
    Likes Received:
    0
    Trophy Points:
    30
    It was cheaper and worked for me.

    leaftye, May 18, 2008
    #3
  4. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    Only bad part of that is it will void the warranty on the drive. That stinks because most retail drives come with 3 to 5 year warranties.

    nizzy1115, May 18, 2008
    #4
  5. jisaac

    jisaac Notebook Deity

    Reputations:
    306
    Messages:
    1,141
    Likes Received:
    0
    Trophy Points:
    55
    i don't see how an external drive that has to come with the enclosure +cables etc. is going to have better performance/storage than a similarly priced hd. did you get an offer or something? If the product states 2.5" you most likely will be able to remove the internal hd

    jisaac, May 18, 2008
    #5
  6. LT21

    LT21 Notebook Consultant

    Reputations:
    0
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    its just cheaper because you get an enclosure with it

    LT21, May 18, 2008
    #6
  7. LT21

    LT21 Notebook Consultant

    Reputations:
    0
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    how do you know what kind of drive is in the external drive?

    LT21, May 18, 2008
    #7
  8. jisaac

    jisaac Notebook Deity

    Reputations:
    306
    Messages:
    1,141
    Likes Received:
    0
    Trophy Points:
    55
    it my state ide /sata on the packaging (or it may state what internal hd is enclosed)- if not you''d have to open it yourself and check the connections

    jisaac, May 18, 2008
    #8
  9. leaftye

    leaftye Notebook Consultant

    Reputations:
    135
    Messages:
    283
    Likes Received:
    0
    Trophy Points:
    30
    X-ray vision.....or open it.....or look at device manager.

    leaftye, May 18, 2008
    #9
  10. Tusin

    Tusin Notebook Evangelist

    Reputations:
    72
    Messages:
    696
    Likes Received:
    0
    Trophy Points:
    30
    It is sometimes cheaper period to buy a external as oppsosed to just the drive by itself. Also depending on where you live, and don't want to wait for shipping (or pay for it), places like Bestbuy and Circut City usally have a limited supply of internal HD's, but pleanty of choices for 2.5" portables.

    Like in my situation, where I live in Alaska computer stores are very limited, and our local "mom and pop" shops charge crazy high prices. But we do have a BestBuy. And they just happened to have a 320gb Simpletech 2.5" external for $140.00, use a 10 or 12% coupon and the price is nicer. And anyone that I have talked to that has opened up one of these Simpletech Drives have a WD 320gb in it. And mine did too. Also it is really really easy to open, with no damage to the drive, or case.

    Tusin, May 18, 2008
    #10
  11. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,841
    Likes Received:
    2,166
    Trophy Points:
    581
    200GB or 320GB external has to be SATA since no one makes PATA HDDs in those sizes.

    It is then likely that other HDD sizes in the same product range would also be SATA for ease of production (ie same enclosure).

    John

    John Ratsey, May 18, 2008
    #11
  12. DMANbluesfreak

    DMANbluesfreak Notebook Consultant

    Reputations:
    17
    Messages:
    153
    Likes Received:
    0
    Trophy Points:
    30
    I got in on that deal, and its the best thing I've ever done... This thing is smokin.

    DMANbluesfreak, May 18, 2008
    #12
  13. vEnOmZkI

    vEnOmZkI Notebook Guru

    Reputations:
    0
    Messages:
    71
    Likes Received:
    0
    Trophy Points:
    15
    whoa whoa! wait a sec!

    the external 2.5 inch hdd's end connector which by the way has brush like golden pins on them,

    and my internal HDD of my laptop(HP DV6000t) the has an adaptor to a chip like end of the hdd not a golden brush like pin...........

    so how is that possible to interchange them, with a different end slot of the laptop hdd, dont they have totaly different end connectors???


    hmmmmm..........

    vEnOmZkI, Jun 4, 2008
    #13
  14. jisaac

    jisaac Notebook Deity

    Reputations:
    306
    Messages:
    1,141
    Likes Received:
    0
    Trophy Points:
    55
    post a picture of the external hard drive's connections.

    jisaac, Jun 4, 2008
    #14
  15. Pheel

    Pheel Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Im pretty sure you can remove the end connector of your internal and put that on the external. should be easily removed, if not. Don't force it and stop trying :p

    I've done it on my dell vostro 1400 internal and swap it with a simpletech external drive. So I believe its possible.

    Pheel, Jun 4, 2008
    #15
  16. vEnOmZkI

    vEnOmZkI Notebook Guru

    Reputations:
    0
    Messages:
    71
    Likes Received:
    0
    Trophy Points:
    15

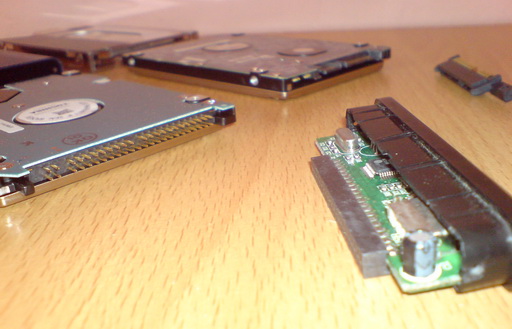

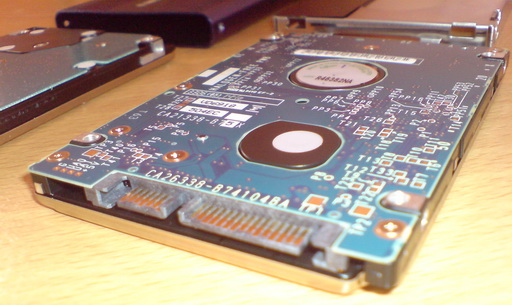

    Hi there guys, got some pix here you might wana see.......

    take note:

    External HDD = the one witht the gold brush-like pins at the end

    Internal HDD(Laptop HP DV6000t) = the one with the chiplike end slot thinggy

    so i dont think this two can be interchangable, dont they???


    Attached Files:

    vEnOmZkI, Jun 5, 2008
    #16
  17. sgogeta4

    sgogeta4 Notebook Nobel Laureate

    Reputations:
    2,389
    Messages:
    10,552
    Likes Received:
    7
    Trophy Points:
    456
    yeah, you can't interchange them. one is IDE, the other is SATA (third and fourth picture).

    sgogeta4, Jun 5, 2008
    #17
  18. unknowntt

    unknowntt Notebook Evangelist

    Reputations:
    94
    Messages:
    652
    Likes Received:
    0
    Trophy Points:
    30
    Yep, your internal drive from your HP Pavilion is a SATA drive, the other is an IDE/ATA/PATA drive. Not interchangeable.

    unknowntt, Jun 5, 2008
    #18
  19. vEnOmZkI

    vEnOmZkI Notebook Guru

    Reputations:
    0
    Messages:
    71
    Likes Received:
    0
    Trophy Points:
    15
    whoa! thanks a lot guys..........didnt know that my external hdd is an IDE/pata/ata one........that makes a lot of sense now,and thats why they are both different.......

    now everythings all cleared up...........

    cheers

    vEnOmZkI, Jun 5, 2008
