    What is the Jumper on the WD Scorpio Blue?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by meansizzler, Nov 15, 2008.

  1. meansizzler

    meansizzler Notebook Consultant

    Reputations:
    43
    Messages:
    252
    Likes Received:
    0
    Trophy Points:
    30
    Got a 400GB WD Scorpio Blue I removed from a WD Passport, has a jumper on it, is it for the SATA 2 Mode?, as the 7200.2 one was? Do I need to remove it before installing it in the laptop?

    meansizzler, Nov 15, 2008
    #1
  2. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    If your laptop is only sata 1 then you need to jumper it to only run in sata1 mode. Else remove it for sata 2. Thats how mine have been that i have gotten. I would say leave it in as most laptops are only sata 1

    nizzy1115, Nov 15, 2008
    #2
  3. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    You can remove it. Intel systems based on the Santa Rosa platform and further, support SATA2, but SATA1/2 don't really make a difference in performance.

    If SATA2 is not supported, the HDD will itself run in SATA1 mode, since SATA2 is backwards compatible.

    After installation, you can download Data Lifeguard Tools, which should let you know the whole jumper config thing for your HDD. (Not sure if WD4000BEVT is supported yet)

    Andy, Nov 15, 2008
    #3
  4. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    Not always true. I had a sata 1 motherboard on my desktop before and my hard drive would not function without the sata 1 jumper installed. When i got my new motherboard with sata 2 i forgot about the jumper setting and it took me a while to figure out why i was having so many hard drive problems.

    If it has no jumper it will auto select the right one, but if it has it you need to use it.

    nizzy1115, Nov 15, 2008
    #4
  5. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    Only seen this problem on a handful of VIA and SiS controllers, whereas there is no such issue with any Intel Controller. (Dunno about ATI southbridges)

    Andy, Nov 15, 2008
    #5
  6. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206

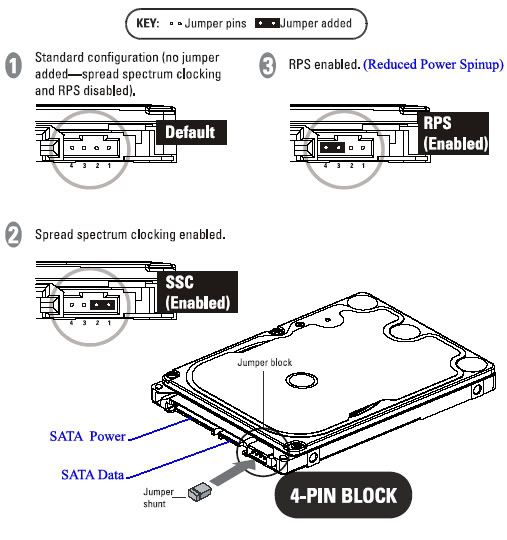

    Just for the record, the jumpers don't seem to have anything to do with the data transfer speeds, as an option to enable/disable OPT1 may not be available via the jumper pins.

    [​IMG]

    Your HDD might have RPS enabled, which is WD's optimized feature for external storage devices.

    Andy, Nov 15, 2008
