    What's causing this bad screen

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Goren, Jan 4, 2014.

  1. Goren

    Goren Notebook Virtuoso NBR Reviewer

    Reputations:
    951
    Messages:
    2,739
    Likes Received:
    0
    Trophy Points:
    55

    Dell Precision M4300 from a relative.

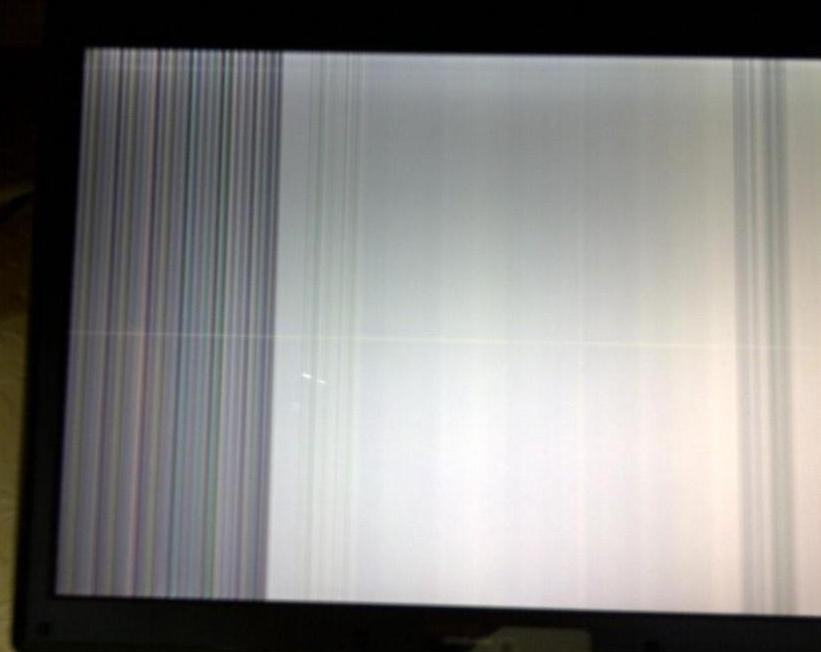

    it was working normally until a few weeks ago, I keep getting this screen or something similar.
    blank with a few strange lines.

    Connecting it to an external monitor, windows runs almost normally.
    except that the colors are in 4-bit and super low resolution. It can't be changed in control panel. Its a "worse than safe-mode" effect.

    I tried to open the bezel and lid, every thing seems to be connected properly

    think the vid card is dying? mobo?
    time to junk this computer?

    Goren, Jan 4, 2014
    #1
  2. Jarhead

    Jarhead 恋の♡アカサタナ

    Reputations:
    5,036
    Messages:
    12,168
    Likes Received:
    3,133
    Trophy Points:
    681
    Since it doesn't look like there's obvious physical damage to the display, it could be a dying video card.

    I've dealt with one or two laptops from family friends that looked similar and they ended up being faulty GPUs.

    Jarhead, Jan 4, 2014
    #2
  3. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,740
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    what graphics do you have?

    Tinderbox (UK), Jan 4, 2014
    #3
  4. Goren

    Goren Notebook Virtuoso NBR Reviewer

    Reputations:
    951
    Messages:
    2,739
    Likes Received:
    0
    Trophy Points:
    55
    should be quadro fx 360m (nvidia)

    Goren, Jan 4, 2014
    #4
  5. MrDJ

    MrDJ Notebook Nobel Laureate

    Reputations:
    2,594
    Messages:
    10,832
    Likes Received:
    363
    Trophy Points:
    501
    that sure looks like a dying gpu. connecting to the external monitor is most prob using the internal graphics.


    Attached Files:

    MrDJ, Jan 4, 2014
    #5
