    applying arctic mx2 compound safe?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by wulfe, Oct 15, 2008.

  1. wulfe

    wulfe Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    it says in the product specs that it is safe to apply anywhere because it is non-capacitive, but is it really so..?

    i mean, this is the first time i would upgrade a laptop and i'm planning to apply it on the cpu, gpu, and chipset northbridge when i reassemble the heatsink

    thanks in advance folks

    wulfe, Oct 15, 2008
    #1
  2. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,740
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    Hi.

    If you follow the guide for you processor on the arctic silver website, you only use a small amount anyway as it spreads itself out when you attach the heatsink.

    EDIT : You have to be careful, as you should not remove some thermal pads, as if you do, there might be to large a gap for the paste to work correctly.

    regards

    John.

    Tinderbox (UK), Oct 15, 2008
    #2
  3. wulfe

    wulfe Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    thanks for the reply

    uhmmm, the thermal pads you're talking about are the copper plates..?

    wulfe, Oct 15, 2008
    #3
  4. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,740
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    Hi.

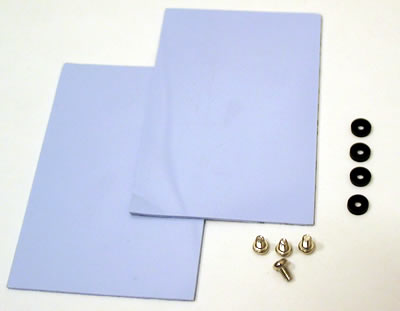

    It looks like a thin square of bubblegum, it sits between the core and the heatsink, they are used instead of thermal paste, but some of them can be quite thick.


    Regards

    John.


    Attached Files:

    Tinderbox (UK), Oct 15, 2008
    #4
  5. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    if you have thermal pads, and you replace the pads with paste, the heatsink will not touch the memory/gpu. That is not good. That means that the heat is not going to be transferred to the heatsink, resulting in overheating and a burnt out gpu.
    If you want to replace the pad, you will need to get a piece of copper which has teh same dimensions and thickness as the thermal pad. That will help dissipate heat better and keep the card running cooler.

    K-TRON

    K-TRON, Oct 15, 2008
    #5
  6. wulfe

    wulfe Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    ok..its clear to me now...

    is it ok if i dont replace the thermal pads of the gpu..?

    wulfe, Oct 15, 2008
    #6
  7. wulfe

    wulfe Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    wait, on a second look, i think the gpu of this laptop (msi gx600) doesn't have a thermal pad...instead it has a copper plate and thermal paste to contact it with the heatsink...

    the only one here that has a thermal pad is the chipset northbridge...

    so its ok for me to apply arctic mx-2 on the cpu and gpu, but not on the chipset..? thanks again

    wulfe, Oct 15, 2008
    #7
  8. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    the chipset does not get very hot, so I wouldnt worry about it too much.

    K-TRON

    K-TRON, Oct 15, 2008
    #8
  9. wulfe

    wulfe Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    ok thanks very much..wish me luck :)

    wulfe, Oct 15, 2008
    #9
  10. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    Good luck. is the gpu on the gx600 removeable or the soldered type?

    Ayle, Oct 15, 2008
    #10
