    connect 3.5" HDD to laptop

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by caldran, Jul 29, 2009.

  1. caldran

    caldran Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    hi

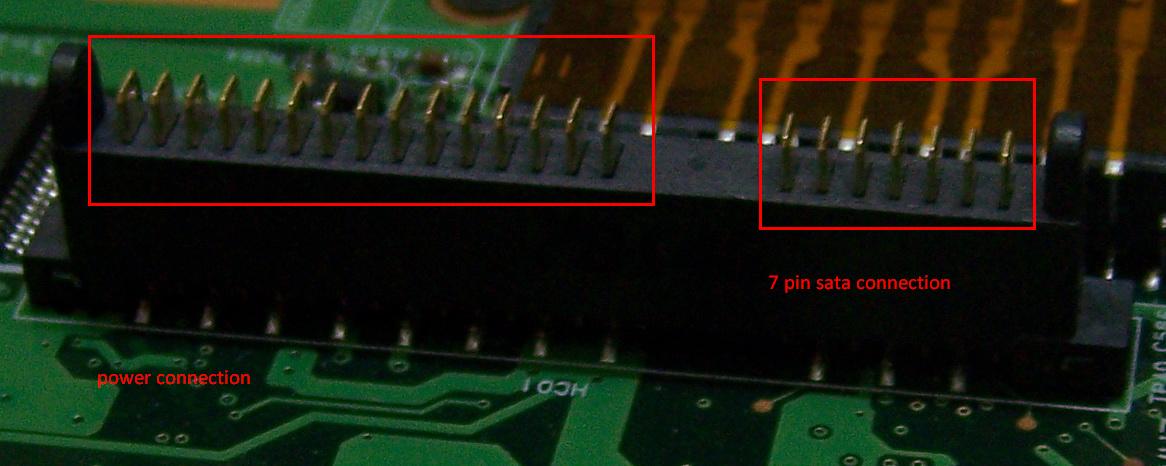

    i want to connect 3.5" hdd to my hp dv2315nr laptop. The sata line i think is a normal 7 pin one but it uses a different connector for hard drive interface. I can get separate power supply for the hard disk..... the problem is to connect the 3.5" connector to an alien looking connector... i have attached pics...Are there any ready made connectors that i can use.


    Attached Files:

    caldran, Jul 29, 2009
    #1
  2. awdark

    awdark Notebook Consultant

    Reputations:
    21
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    awdark, Jul 31, 2009
    #2
  3. Lithus

    Lithus NBR Janitor

    Reputations:
    5,504
    Messages:
    9,788
    Likes Received:
    0
    Trophy Points:
    205
    The adapter (2nd pic) is proprietary. You're going to have a very hard time finding anything that works with it.

    Lithus, Jul 31, 2009
    #3
  4. caldran

    caldran Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    thanks for ur reply....

    caldran, Oct 31, 2009
    #4
  5. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    This can be done
    All you need is a male to female 7 pin SATA cable
    You will need an ATX power supply to power the harddrive. The ATX power supply will need to be jumpstarted with a paperclip (short green wire and any black wire - use a paperclip)
    You will need to have the harddrive powered by the external power supply.

    It will work, but its not going to be portable.

    K-TRON

    K-TRON, Oct 31, 2009
    #5
  6. garetjax

    garetjax NBR Freelance Reviewer NBR Reviewer

    Reputations:
    1,706
    Messages:
    1,681
    Likes Received:
    0
    Trophy Points:
    55
    I guess I'm confused, but why not just use an external 3.5" hard drive enclosure with your 3.5" HDD and connect it to your laptop via a USB cable?

    garetjax, Oct 31, 2009
    #6
