    eDP 40 pin 4 lane pins

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by TheUberMedic, Apr 30, 2019.

  1. TheUberMedic

    TheUberMedic Notebook Evangelist

    Reputations:
    44
    Messages:
    374
    Likes Received:
    141
    Trophy Points:
    56
    Hi! No idea if I should put this here or not but worth a shot!
    I'm looking to make my own portable monitor using the AUO B173HAN01.6 panel and am looking at this controller board: https://rover.ebay.com/rover/0/0/0?mpre=https://www.ebay.com/ulk/itm/182754839375
    Only problem is that it needs each pin to be set manually and the labels are differently named on the board. Someone mind helping me match what goes where?

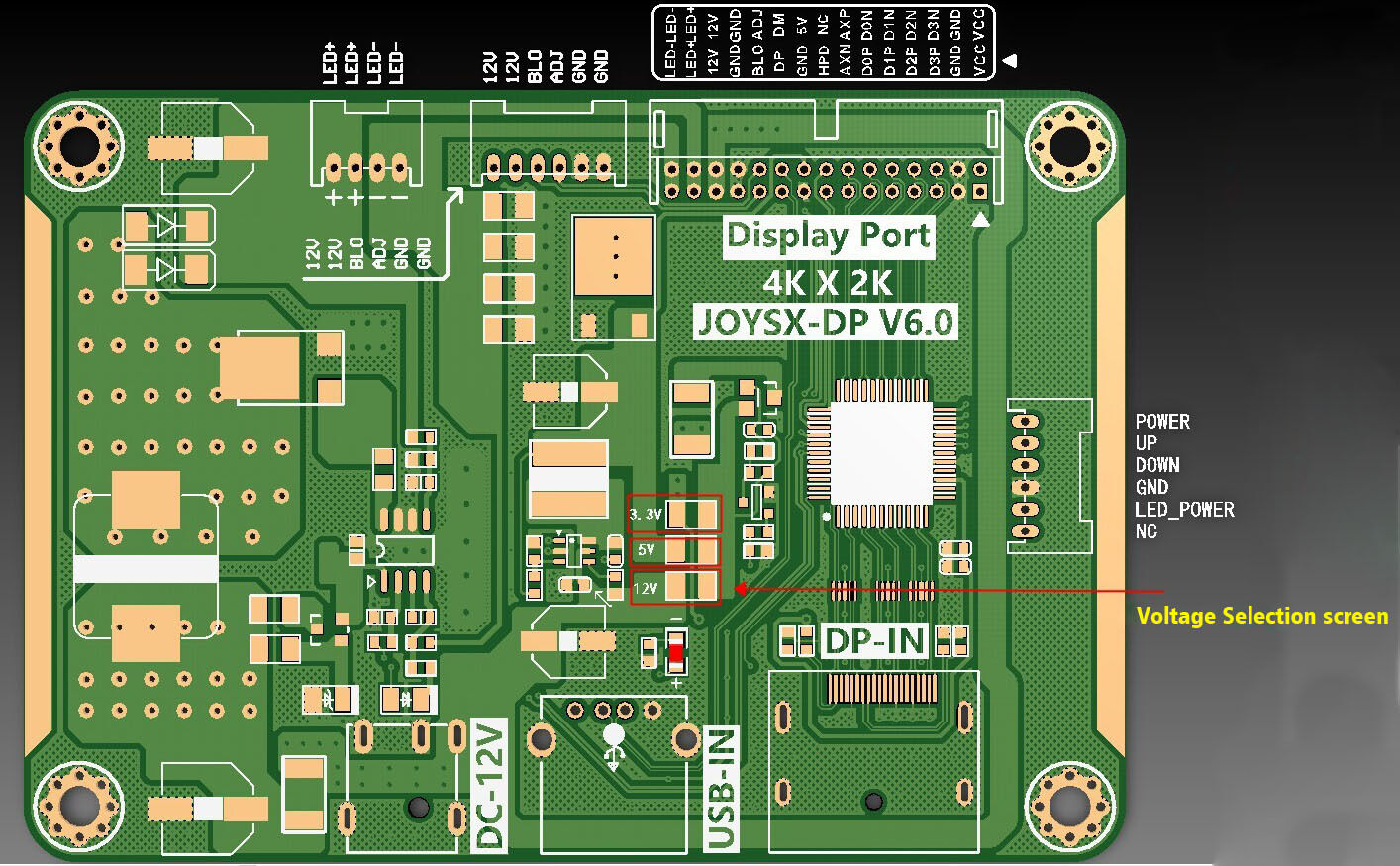

    Board Diagram: [​IMG]
    Pinout:
    [​IMG]

    Last edited: Apr 30, 2019
    TheUberMedic, Apr 30, 2019
    #1
