    external graphics card , what cable?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by ritfin, Apr 23, 2017.

  1. ritfin

    ritfin Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hi,



    What cables do I use for external graphics cards? I have a laptop

    would usb 3.0 or hdmi work for graphics card

    here is laptop plugs;
    [​IMG]

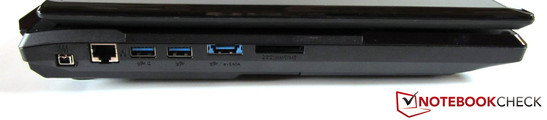

    Left side: Mini FireWire, RJ-45 Gigabit LAN, 2x USB 3.0, eSATA / USB 3.0, 9-in-1 card reader
    [​IMG]

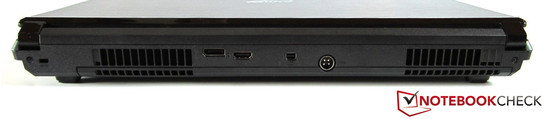

    Back: Kensington lock, DisplayPort, HDMI, Mini DisplayPort, power jack
    [​IMG]

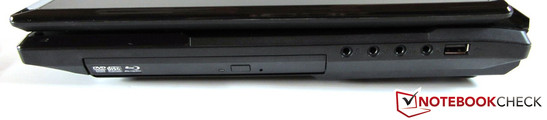

    Right side: optical drive, 4x sound, USB 2.0

    Last edited by a moderator: Apr 23, 2017
    ritfin, Apr 23, 2017
    #1
  2. Starlight5

    Starlight5 Yes, I'm a cat. What else is there to say, really?

    Reputations:
    826
    Messages:
    3,230
    Likes Received:
    1,643
    Trophy Points:
    231
    @ritfin neither of those would suit for eGPU. It may be possible to use WLAN slot, but it's not comfortable, and may not work at all. However, if you just need to add an extra monitor, without intent to play games on it, a USB 3.0 to HDMI adapter will do.

    Starlight5, Apr 23, 2017
    #2
  3. ritfin

    ritfin Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    @Starlight5
    so your telling me that out of the plugs below there is no option for a eGPU? thanks.
    here is laptop plugs;
    [​IMG]
    Left side: Mini FireWire, RJ-45 Gigabit LAN, 2x USB 3.0, eSATA / USB 3.0, 9-in-1 card reader
    [​IMG]
    Back: Kensington lock, DisplayPort, HDMI, Mini DisplayPort, power jack
    [​IMG]

    ritfin, Apr 23, 2017
    #3
  4. Starlight5

    Starlight5 Yes, I'm a cat. What else is there to say, really?

    Reputations:
    826
    Messages:
    3,230
    Likes Received:
    1,643
    Trophy Points:
    231
    @ritfin yes, that's what I'm telling you. None of the ports you mentioned are suitable for the task; only your Wi-Fi card slot can be. I's either mini PCIe or m.2 a-key, has pcie bus either way.

    Starlight5, Apr 23, 2017
    #4
  5. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Agreed, options are limited unfortunately!

    TomJGX, Apr 30, 2017
    #5
