    good set up?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Coolioguylio, Apr 9, 2008.

  1. Coolioguylio

    Coolioguylio Notebook Consultant

    Reputations:
    0
    Messages:
    126
    Likes Received:
    0
    Trophy Points:
    30
    I am going to assume that we all know what an xbox 360 is? If you don't you arent gonna help lol. okay Im going to send you links for everything. I purchased #1.

    # 1 Y adapter http://www.radioshack.com/product/i...+stereo+adapter&support=support&tab=techSpecs.


    #2 Xbox 360 VGA adapter
    http://www.gamestop.com/Catalog/ProductDetails.aspx?product_id=40681


    #3 Monitor
    http://www.newegg.com/Product/Product.aspx?Item=N82E16824155056&Tpk=kds+26%22



    #4 Speakers
    http://www.newegg.com/Product/Product.aspx?Item=N82E16836113008

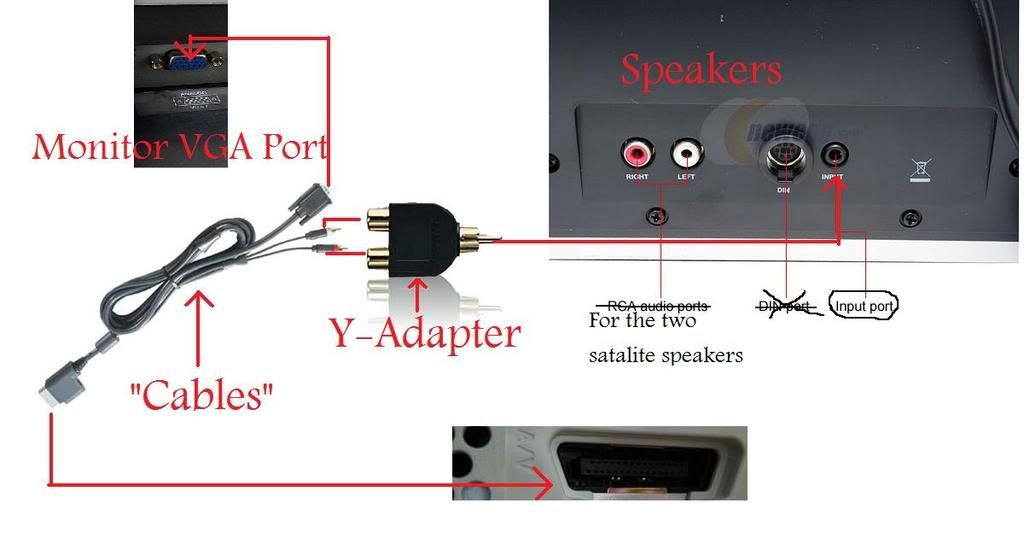

    I will only plug in the VGA cable from the cables (#2) into the monitor (#3) because there is no where to put the audio cables. I will then take the Y adapter (#1) and plug it into the input port of the speakers (#4). I will then take the two audio cables from the cables (#2) and proceed two plug that into the two ports that are open in the Y-adapter (#1)

    another picture explanation look at it with instructions...

    [​IMG]

    Will this work?

    Coolioguylio, Apr 9, 2008
    #1
  2. Budding

    Budding Notebook Virtuoso

    Reputations:
    1,686
    Messages:
    3,982
    Likes Received:
    0
    Trophy Points:
    105
    You don't really need the Y adaptor for the speakers, if those are stand alone speakers with phono inputs. If those are the speakers on the monitor, then you will need a phono to 3.5mm adaptor, which is the one you have linked to, but not the one in the big picture.

    Budding, Apr 9, 2008
    #2
  3. Coolioguylio

    Coolioguylio Notebook Consultant

    Reputations:
    0
    Messages:
    126
    Likes Received:
    0
    Trophy Points:
    30
    ummm can you be a little more clear, i didnt get a word of what u said.

    Coolioguylio, Apr 9, 2008
    #3
  4. StormEffect

    StormEffect Lazer. *pew pew*

    Reputations:
    613
    Messages:
    2,278
    Likes Received:
    0
    Trophy Points:
    55
    He said don't post the same topic in multiple forums.

    As for your diagram, it will work fine. Just make sure to set the resolution in the XBOX dashboard settings (video section) to 1080p or 720p or whatever the maximum resolution of the monitor is. Try and raise the black level setting too.

    It'll work, I do exactly that with my computer monitor and xbox. Though I have the audio out going into a pair of headphones.

    StormEffect, Apr 9, 2008
    #4
  5. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    Calm down, Coolioguy,

    Yes, that system you have their will work.
    Just to mention, be cautious about that "Y" adaptor.
    Read the back of the packaging before purchasing.
    SOme of them split the audio, so that one port is for the left ear, and the other for the right ear.
    You just want a standard splitter, not one which splits the physical audio bits.
    These were used for older headphones, and such. It is beyond me why radio shack carries them.
    Just make sure you are getting the right ones.

    K-TRON

    K-TRON, Apr 9, 2008
    #5
  6. Coolioguylio

    Coolioguylio Notebook Consultant

    Reputations:
    0
    Messages:
    126
    Likes Received:
    0
    Trophy Points:
    30
    so that isnt the one I want? I need to get a differenet model?

    Coolioguylio, Apr 9, 2008
    #6
  7. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    Just make sure its an audio multiplier, not a left to right ear audio splitter.

    K-TRON

    K-TRON, Apr 9, 2008
    #7
  8. Coolioguylio

    Coolioguylio Notebook Consultant

    Reputations:
    0
    Messages:
    126
    Likes Received:
    0
    Trophy Points:
    30
    its labeled as a coupler, which is what i want right?

    Coolioguylio, Apr 9, 2008
    #8
  9. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    Coupler, is what you want

    K-TRON

    K-TRON, Apr 9, 2008
    #9
  10. Coolioguylio

    Coolioguylio Notebook Consultant

    Reputations:
    0
    Messages:
    126
    Likes Received:
    0
    Trophy Points:
    30
    i love you ktron thanks so much lol.

    Coolioguylio, Apr 9, 2008
    #10
  11. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    You're welcome

    Please dont love me, I'm a guy.

    K-TRON

    K-TRON, Apr 9, 2008
    #11
  12. Coolioguylio

    Coolioguylio Notebook Consultant

    Reputations:
    0
    Messages:
    126
    Likes Received:
    0
    Trophy Points:
    30
    i know thats why lololololollolololololololololololololololololololololololololololololololololololololol im jping wit u
