    half speed ram???

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by fizzleation, Jun 21, 2006.

  1. fizzleation

    fizzleation Notebook Consultant

    Reputations:
    1
    Messages:
    256
    Likes Received:
    0
    Trophy Points:
    30
    when i look up the frequency of my ram in cpu-z, it says that it is running at 333 not the 667 that i ordered! does it automaticly clock down at idle or is this a problem? Thanks for your help


    Samuel

    fizzleation, Jun 21, 2006
    #1
  2. Ice-Tea

    Ice-Tea MXM Guru NBR Reviewer

    Reputations:
    476
    Messages:
    1,260
    Likes Received:
    0
    Trophy Points:
    55
    No, it's DDR or 'Dual Data Rate' RAM. They are clocked at per example 333Mc but take data in or out on both the rising and falling edge of the clock, resulting in an actual data rate corresponding to a single data rate clock of 667Mc?

    Ice-Tea, Jun 21, 2006
    #2
  3. fizzleation

    fizzleation Notebook Consultant

    Reputations:
    1
    Messages:
    256
    Likes Received:
    0
    Trophy Points:
    30

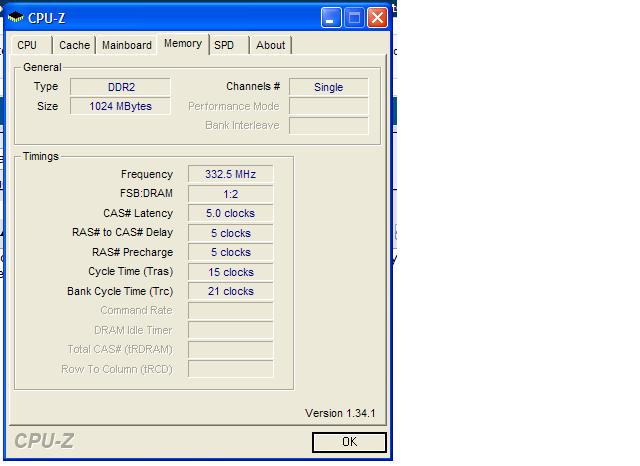

    so you are saying i have ddr ram, not the ddr2 i ordered and my computer says i have? this is what cpu-z gave me...


    Attached Files:

    fizzleation, Jun 21, 2006
    #3
  4. Iter

    Iter Notebook Evangelist

    Reputations:
    0
    Messages:
    465
    Likes Received:
    0
    Trophy Points:
    30
    Please go to BIOS and make sure that the speed of memory can be adjusted.
    If your memory is a DDR2, it's max. speed is only up to 667Mhz. If it is a DDR, the max. speed up to 400Mhz.

    Iter, Jun 21, 2006
    #4
  5. miner

    miner Notebook Nobel Laureate

    Reputations:
    1,326
    Messages:
    7,137
    Likes Received:
    0
    Trophy Points:
    205
    You have the correct DDR2 667 RAM and 333MHz is the clock speed at which it runs. Both DDR & DDR2 memory are capable of transferring data both on the rising/falling edges of the frequency. As such memory manufacturers take advantage of this and rate their memory at twice the clock speed. What this means is that a DDR/DDR2 memory running at 333Mhz memory is capable of data transfer rates of a single data rate memory running at 667MHz. So, they they rate their memory as DDR2 667.\

    This is true of any DDR or DDR2 memory.

    miner, Jun 21, 2006
    #5
