    help me fix my display hinges

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by AhmedouviX, Oct 23, 2015.

  1. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41

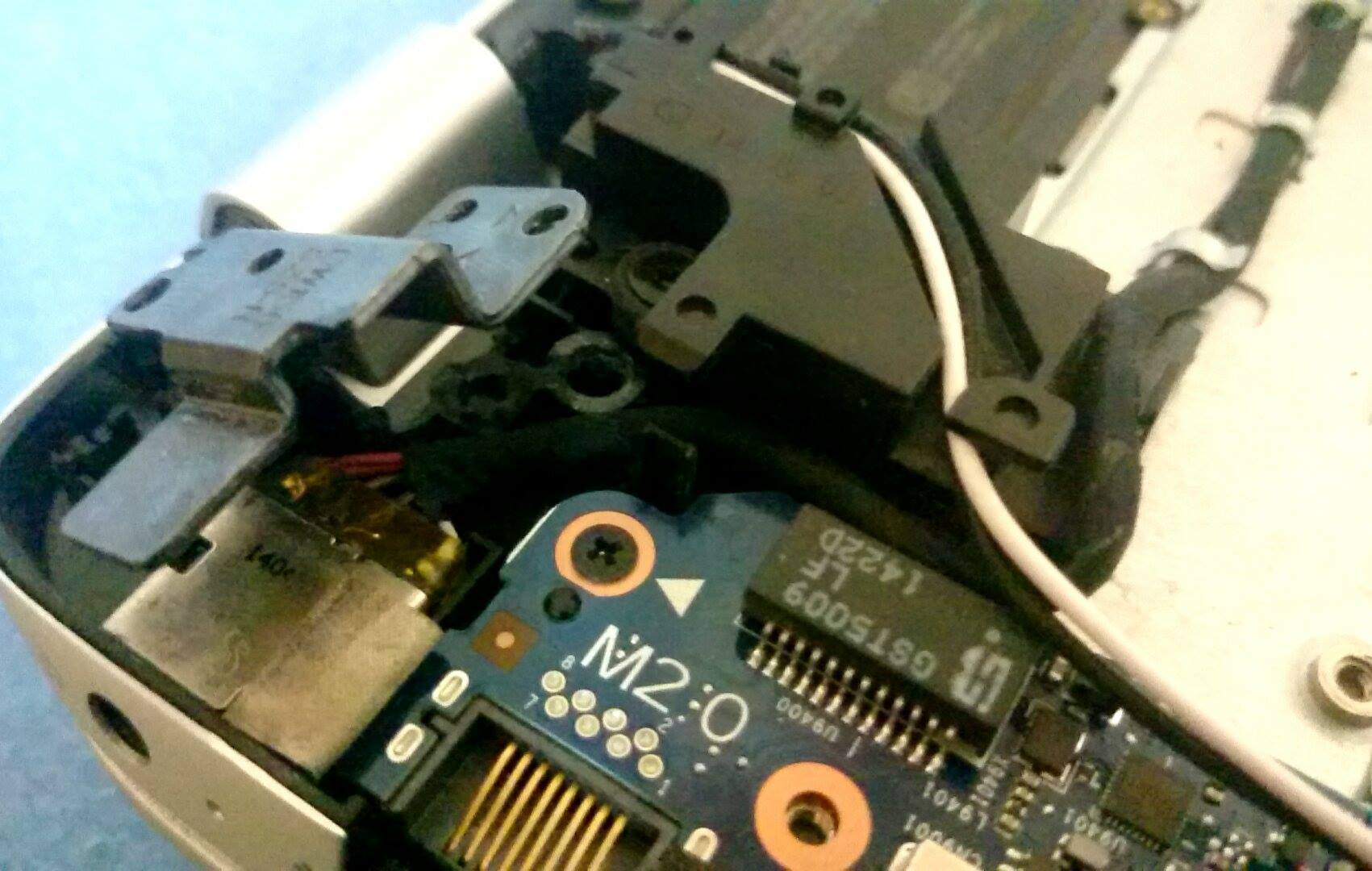

    so basically my laptop hinges are broken

    the plastic supports that holds the metal pushings that hold the screws of the hinges is broken

    glue doesn't work because it can't handle the tension, tried it.

    any idea how to fix it?

    it happened to the two hinges and i can't use the laptop now and i don't know what broke it. also another supports are broken because the the base enclosure can't handle the tension too

    [​IMG]

    AhmedouviX, Oct 23, 2015
    #1
  2. Metalman

    Metalman Notebook Consultant

    Reputations:
    113
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    Can you repair them with epoxy and then drill new holes.

    Metalman, Oct 23, 2015
    #2
  3. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    sorry can you be more specific? i was going to use epoxy and insert the metal bushings inside the epoxy then wait until it set and cure. is that what you mean?

    another photo for the other hinge

    https://i.imgur.com/GIO6ZZH.jpg

    AhmedouviX, Oct 23, 2015
    #3
  4. Metalman

    Metalman Notebook Consultant

    Reputations:
    113
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    Yes, that is something you can try. If that does not work then you may have to look for a new base on ebay.

    Metalman, Oct 23, 2015
    #4
  5. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    i will try it because i didn't find the uppers case on ebay. hopefully the epoxy will handle the tension

    AhmedouviX, Oct 23, 2015
    #5
  6. TANWare

    TANWare Just This Side of Senile, I think. Super Moderator

    Reputations:
    2,548
    Messages:
    9,585
    Likes Received:
    4,997
    Trophy Points:
    431
    Use a long curing epoxy. The shorter the cure time the weaker they generally are. If you have a Dremel and taps etc you could just build an epoxy block and work it from there.

    TANWare, Oct 23, 2015
    #6
  7. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    thanks TANWare that's what i will do.

    AhmedouviX, Oct 23, 2015
    #7
  8. Metalman

    Metalman Notebook Consultant

    Reputations:
    113
    Messages:
    144
    Likes Received:
    0
    Trophy Points:
    30
    Yes, what TANWare said. Also I would not use the clear epoxy.

    Metalman, Oct 23, 2015
    #8
  9. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    thanks. i didn't find the dremel any other way to clean up the holes?

    AhmedouviX, Oct 23, 2015
    #9
  10. TANWare

    TANWare Just This Side of Senile, I think. Super Moderator

    Reputations:
    2,548
    Messages:
    9,585
    Likes Received:
    4,997
    Trophy Points:
    431
    To do it properly a Dremel is the best way. You know as they say a proper tool for a proper job.

    TANWare, Oct 24, 2015
    #10
  11. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    I found this one but not sure if it's good and can handle the tension

    Should I use it? It's cheap, 1$

    [​IMG]

    [​IMG]

    Sent from my D6503 using Tapatalk

    AhmedouviX, Oct 24, 2015
    #11
  12. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    No. Fast curing = weaker.

    tilleroftheearth, Oct 24, 2015
    #12
  13. TANWare

    TANWare Just This Side of Senile, I think. Super Moderator

    Reputations:
    2,548
    Messages:
    9,585
    Likes Received:
    4,997
    Trophy Points:
    431
    It should state 24-48 hour cure time. On the same note avoid kickers as well as most will weaken the cured block.

    TANWare, Oct 24, 2015
    #13
  14. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    What are kickers?

    Sent from my D6503 using Tapatalk

    AhmedouviX, Oct 24, 2015
    #14
  15. TANWare

    TANWare Just This Side of Senile, I think. Super Moderator

    Reputations:
    2,548
    Messages:
    9,585
    Likes Received:
    4,997
    Trophy Points:
    431
    Kickers are fast curing agents.

    TANWare, Oct 24, 2015
    #15
  16. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    I will search for another one tomorrow and I hope I will find one. If I didn't I have no option except using the fast curing one and hopefully will fix my 6 months old laptop

    Sent from my D6503 using Tapatalk

    AhmedouviX, Oct 24, 2015
    #16
  17. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    Don't you have any warranty on your 6 month old laptop lol?

    Sent from my LG-H811 using Tapatalk

    TomJGX, Oct 25, 2015
    #17
  18. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    I bought it from UAE and I am in Egypt now so yes no warranty

    Sent from my D6503 using Tapatalk

    AhmedouviX, Oct 25, 2015
    #18
  19. KLF

    KLF NBR Super Modernator Super Moderator

    Reputations:
    2,844
    Messages:
    2,736
    Likes Received:
    896
    Trophy Points:
    131
    Have you asked from local service center or called their local number. I think the warranty should cover whole EMEA. There might be exceptions but I'd recommend at least asking since they might refuse fixing anything else later if there is some self made repairs :)

    KLF, Oct 25, 2015
    #19
  20. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    Yes I did.. And they told me they won't repair it because the damage is caused by bad usage.

    BTW I bought this epoxy with 45 mins working time and 24 hours curing time. Too long but hopefully will work

    If any one has any recommendations before proceeding please reply with it

    Thanks

    [​IMG]

    [​IMG]

    Sent from my D6503 using Tapatalk

    AhmedouviX, Oct 25, 2015
    #20
  21. KLF

    KLF NBR Super Modernator Super Moderator

    Reputations:
    2,844
    Messages:
    2,736
    Likes Received:
    896
    Trophy Points:
    131
    That's a bummer. It's darn difficult to try to prove otherwise.

    KLF, Oct 25, 2015
    #21
    TomJGX and AhmedouviX like this.
  22. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    Anyone knows an idea to apply a pressure for 10 Hours? [​IMG]

    Sent from my D6503 using Tapatalk

    AhmedouviX, Oct 25, 2015
    #22
  23. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    Rent a vise. ;)


    tilleroftheearth, Oct 25, 2015
    #23
  24. alexhawker

    alexhawker Spent Gladiator

    Reputations:
    500
    Messages:
    2,540
    Likes Received:
    792
    Trophy Points:
    131
    Binder Clip?

    alexhawker, Oct 27, 2015
    #24
  25. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    You mean vice :p

    TomJGX, Oct 27, 2015
    #25
  26. tilleroftheearth

    tilleroftheearth Wisdom listens quietly...

    Reputations:
    5,398
    Messages:
    12,692
    Likes Received:
    2,717
    Trophy Points:
    631
    tilleroftheearth, Oct 27, 2015
    #26
  27. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    AhmedouviX, Oct 27, 2015
    #27
  28. James D

    James D Notebook Prophet

    Reputations:
    2,314
    Messages:
    4,901
    Likes Received:
    1,132
    Trophy Points:
    231
    James D, Oct 27, 2015
    #28
  29. AhmedouviX

    AhmedouviX Notebook Consultant

    Reputations:
    0
    Messages:
    181
    Likes Received:
    63
    Trophy Points:
    41
    about the video, that's exactly what i did but with epoxy and it couldn't handle the tension, i put a lot of epoxy. i can't use this method now but thanks for sharing!

    AhmedouviX, Oct 27, 2015
    #29
  30. James D

    James D Notebook Prophet

    Reputations:
    2,314
    Messages:
    4,901
    Likes Received:
    1,132
    Trophy Points:
    231
    Well, he used mix of the exact same plastic and dichloroethane. I never used that before. What I did use is 2nd way which is in the link. soda + superglue.

    James D, Oct 27, 2015
