    how to alter the FSB of the M17X R1 ?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by mitsuhide, Mar 6, 2012.

  1. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    hello guys,

    My former MSI notebook GT628's CPU could be overclocked to 3.33GHz (304x11) , using SETFSB & Throttlestop

    I got a M17X R1 in a low price recently

    Now I am using 3.33GHZ quad core ,too (just 266.6 x 12.5,no faster than 304 x 11)

    anyone know how to alter the FSB of the M17X R1 ? (the PLL type)
    or any other software like setfsb or setpll to alter the FSB ?

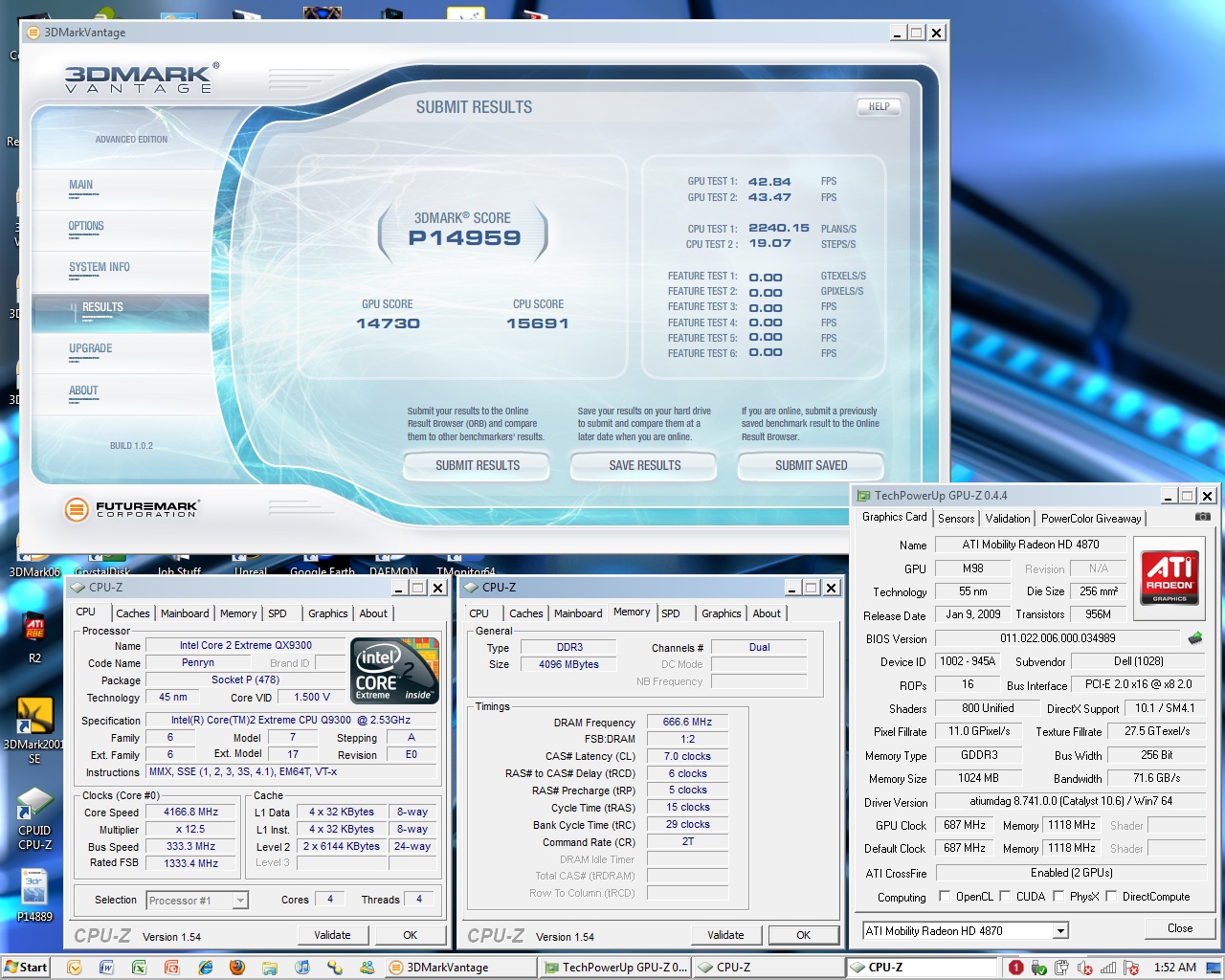

    I saw someone had overclocked the quad core to 4.17GHz (333.3 x 13.5)



    [​IMG]

    mitsuhide, Mar 6, 2012
    #1
  2. jclausius

    jclausius Notebook Virtuoso

    Reputations:
    6,160
    Messages:
    3,265
    Likes Received:
    2,573
    Trophy Points:
    231
    jclausius, Mar 6, 2012
    #2
  3. unclewebb

    unclewebb ThrottleStop Author

    Reputations:
    7,815
    Messages:
    6,414
    Likes Received:
    6,729
    Trophy Points:
    681
    I am not sure if he still hangs around NBR but scook9 used to push the outer limits with his M17X-R1 QX9300. That screen shot might be his.

    For maximum performance he discovered that raising the FSB gave him more performance per MHz than raising the multiplier did.

    unclewebb, Mar 6, 2012
    #3
