    how to connect audio port?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by EricaL, Jul 17, 2011.

  1. EricaL

    EricaL Notebook Consultant

    Reputations:
    750
    Messages:
    266
    Likes Received:
    2
    Trophy Points:
    31

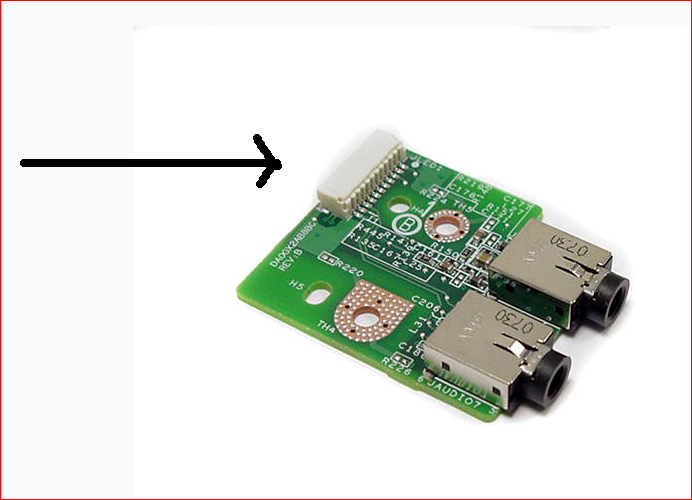

    hi. my audio port in my dell laptop is broken, so i'm ordering a new one. we can open the laptop completely (done it before to check the audio port) and put this there -

    [​IMG]

    but how do we connect it to the wires inside? will they just, like, pop in, or would we have to solder it etc?

    thank you.

    EricaL, Jul 17, 2011
    #1
  2. Kuu

    Kuu That Quiet Person

    Reputations:
    765
    Messages:
    968
    Likes Received:
    18
    Trophy Points:
    31
    You would have to take your lappy apart to actually know for sure, but in most cases the cable is detachable on the mainboard itself or to the daughterboard where the headphone port lies; if what you ordered didn't come with a cable anyway.

    Edit: ...where did that picture come from? >_>
    Looks like it's just a quick cable swap, no soldering needed

    Kuu, Jul 17, 2011
    #2
