    m.2 drive in msata slot

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Grump, Jun 26, 2017.

  1. Grump

    Grump Notebook Consultant

    Reputations:
    0
    Messages:
    261
    Likes Received:
    4
    Trophy Points:
    31
    Hi, can an m.2 ssd work in an msata slot? I see some answers but they are for the reverse situation.

    Grump, Jun 26, 2017
    #1
  2. Dr. AMK

    Dr. AMK Living with Hope

    Reputations:
    3,961
    Messages:
    2,182
    Likes Received:
    4,654
    Trophy Points:
    281
    Last edited: Jun 26, 2017
    Dr. AMK, Jun 26, 2017
    #2
  3. Starlight5

    Starlight5 Yes, I'm a cat. What else is there to say, really?

    Reputations:
    826
    Messages:
    3,230
    Likes Received:
    1,643
    Trophy Points:
    231

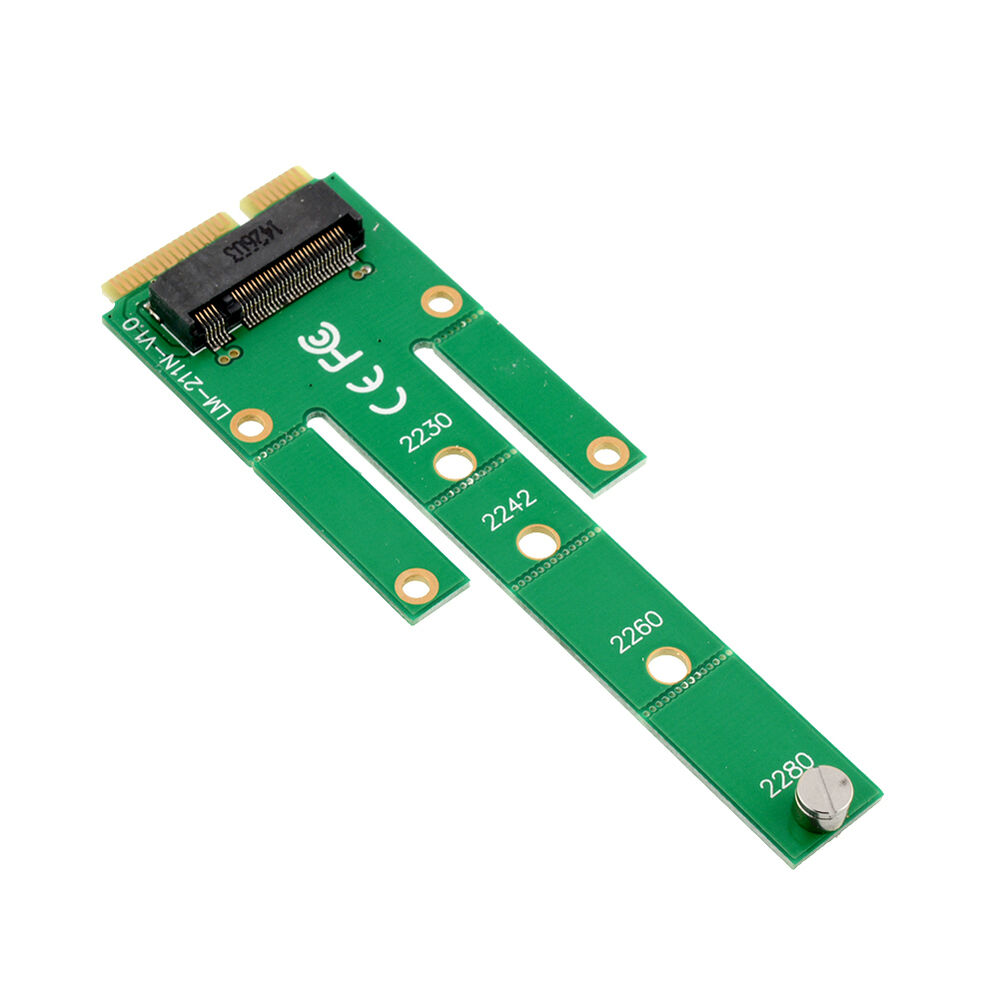

    @Grump m.2 SATA drive (B/B+M key) will work. However, fitting any drive larger than m.2 2242 will be impossible on most laptops, due to length constraints; also, there may not be enough height to accomodate the adapter and SSD at all. With desktops, it is much easier.

    [​IMG]

    Starlight5, Jun 26, 2017
    #3
  4. Grump

    Grump Notebook Consultant

    Reputations:
    0
    Messages:
    261
    Likes Received:
    4
    Trophy Points:
    31
    So theoretically both m.2 and nvme drives can work on an older msata?

    Grump, Jun 26, 2017
    #4
  5. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,708
    Messages:
    29,842
    Likes Received:
    59,622
    Trophy Points:
    931
    M.2 NVMe (PCIe) ssd's can't be used in M-sata slot :cool:

    Papusan, Jun 26, 2017
    #5
    Dr. AMK and Starlight5 like this.
