    m.2 ssd, so damn impressive yet so expensive

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by ole!!!, Nov 12, 2014.

  1. ole!!!

    ole!!! Notebook Prophet

    Reputations:
    2,879
    Messages:
    5,952
    Likes Received:
    3,982
    Trophy Points:
    431
    ole!!!, Nov 12, 2014
    #1
  2. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,840
    Likes Received:
    2,165
    Trophy Points:
    581
    Given the recent discussion about M.2 drives running hot I see this Intel SSD isn't a notably cool operator:

    John

    John Ratsey, Nov 12, 2014
    #2
  3. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    So that means it throttles when it exceeds 60C or that it doesn't exceed 60C peak?

    HTWingNut, Nov 12, 2014
    #3
  4. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    probably means that it throttles at 60C...

    TomJGX, Nov 12, 2014
    #4
  5. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,840
    Likes Received:
    2,165
    Trophy Points:
    581
    4W will make a 2.5" drive run hot. There's no way an M.2 board can dissipate that amount of heat without either having a heat sink or a fan blowing cold air at it.

    Under light usage conditions the 4W power might only occur in short bursts (I think writing is usually more power-demanding than reading) but sustained writing is going to end up getting throttled.

    John

    John Ratsey, Nov 12, 2014
    #5
  6. ole!!!

    ole!!! Notebook Prophet

    Reputations:
    2,879
    Messages:
    5,952
    Likes Received:
    3,982
    Trophy Points:
    431
    yep 4 watts pretty freaking hot consider controller / flash is even smaller on that small m.2 pcb. well theres m.2 pcie and m.2 sata so i'd assume sata runs cooler cause slower than pcie 2.0 x4

    ole!!!, Nov 14, 2014
    #6
  7. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931

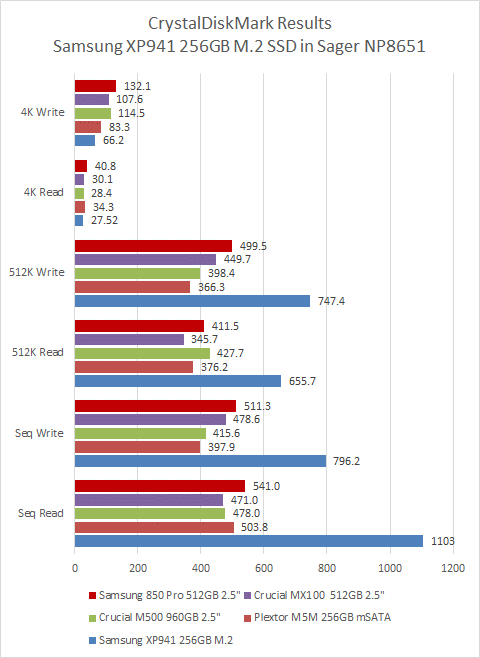

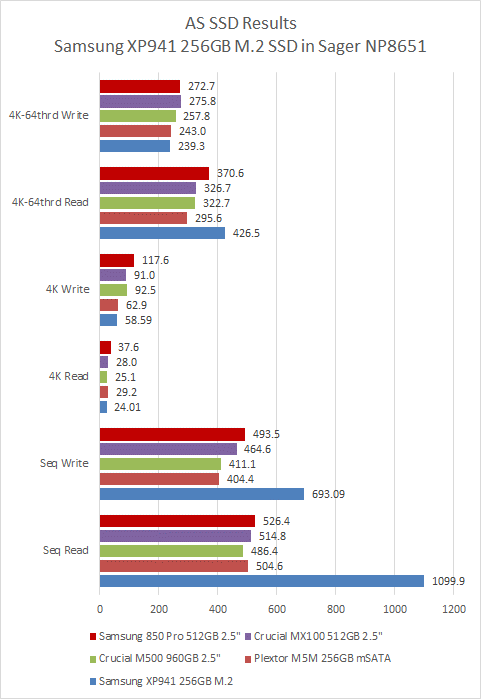

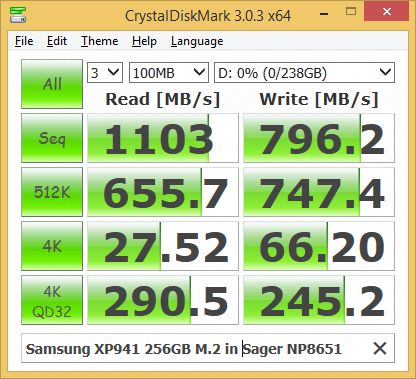

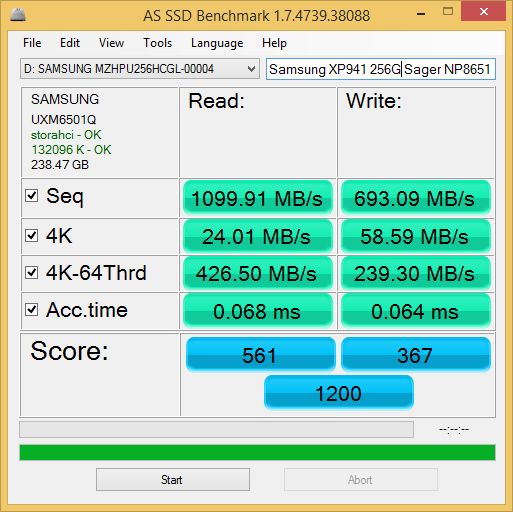

    Sequential and 512K speeds decent, 4k not so spectacular...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    HTWingNut, Nov 16, 2014
    #7
