    upgrade the video card from GTS160M to 9800MGTX ,worth it?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by mitsuhide, Jul 5, 2010.

  1. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30

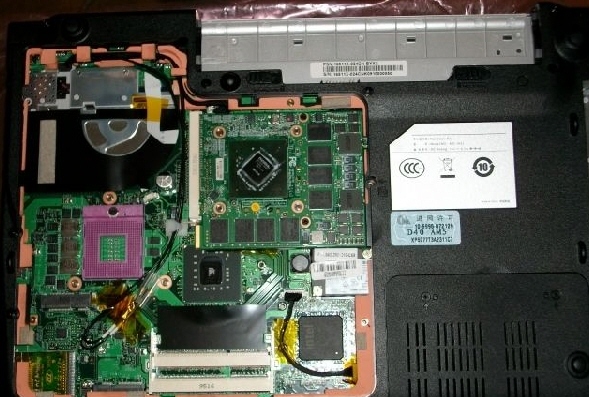

    GTS160M
    based on G94b core
    64 Stream processors
    default clock: Core600 / SP1500 / Mem1600

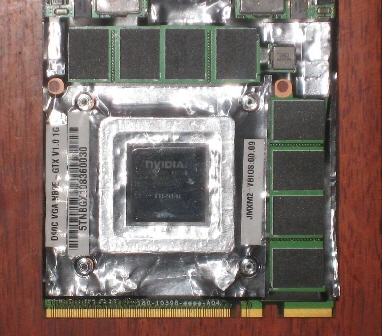

    9800MGTX
    based on G92 core
    112 Stream processors
    default clock: Core500 / SP1250 / Mem1600



    my laptop is MSI-GT628

    I am going to sell my GTS 160M for $90 and buy a 9800M GTX for $150

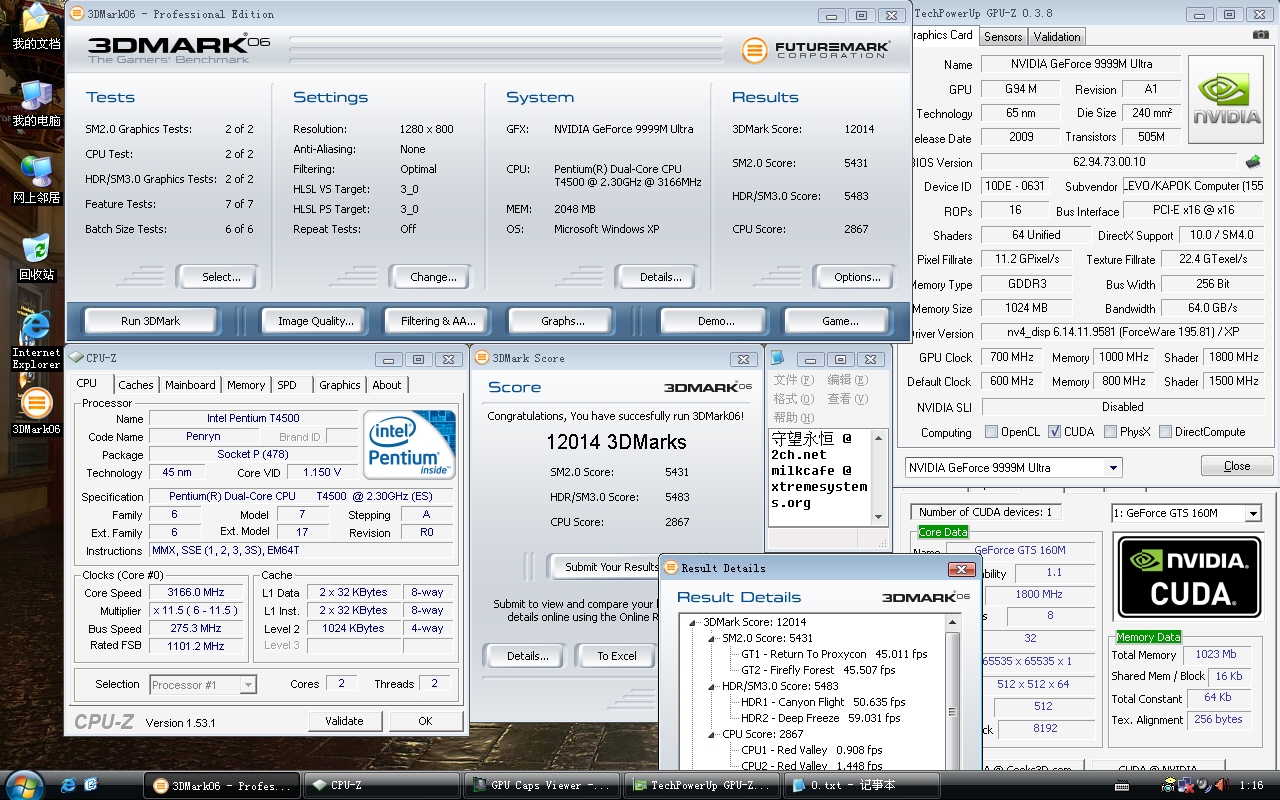

    when I am using a Pentium T4500 @ 3166MHz
    the GTS160M can be overclocked to Core700 / SP1800 / Mem2000
    3D06 benched for 12000 marks

    when I upgrade the CPU to QX9200 @ 2.9GHz
    the GPU can hold only Core675 / SP1675 / Mem1900 stable in gaming
    3D06 benched for 13600 marks

    the question is : if I upgrade the GPU to 9800M GTX , will I get higher performance after overclocking ? :confused:

    I am not sure if the larger core GPU(9800MGTX) can be overclocked to such high GPU clock (like the GTS160M) :confused:

    GTS 160M TDP 35W
    9800MGTX TDP 65W
    QX9200 TDP 45W

    my Power supply is only 120W and I am using a QX9200 @ 3.3GHz right now :(


    Attached Files:

    mitsuhide, Jul 5, 2010
    #1
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Nice prices, I would guess that you could sell your GPU for more.

    moral hazard, Jul 5, 2010
    #2
  3. G73Guy

    G73Guy Notebook Consultant

    Reputations:
    151
    Messages:
    248
    Likes Received:
    0
    Trophy Points:
    0
    I would not do for such a little increase.

    G73Guy, Jul 5, 2010
    #3
  4. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    there will be no MXM 2.0b video card any more

    all of the coming cards is MXM 3.0

    mitsuhide, Jul 5, 2010
    #4
  5. darnok44

    darnok44 Notebook Consultant

    Reputations:
    177
    Messages:
    285
    Likes Received:
    87
    Trophy Points:
    41
    And there's another thing, will 9800M GTX work in Your system? 9800M GTX is 65W card. It's MXM-HE form factor with extra connector for power and MSI have only MXM III socket if I not mistake. GTS 160M have as well extra connector but probably beacause it's much lower power hungry card then 9800M GTX it actually don't need feed via this connector. But I'm not sure about that, You have to ask about that someone with greater knowledge in subject.

    darnok44, Jul 5, 2010
    #5
  6. Fenrir85

    Fenrir85 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Where do you guys even find these cards to buy? My 8700m GT recently burned out. I baked it, it works now, but tanks on any 3D applications. I'd love to get another card and save this $2.8k lappy from becoming a paper weight.

    Fenrir85, Jul 5, 2010
    #6
  7. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Sometimes you can find them for sale in the forum marketplace.
    Here is where you will usually find the best price.

    But ebay is also good. And there are places that sell cards new like:
    MXM Upgrade Home Page

    moral hazard, Jul 5, 2010
    #7
  8. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    I believe your GT628 could do a x2 1.0 DIY ViDock Setup. A desktop HD5770 at x2 1.0 will outperform the 9800GTX.

    User Retired 2, Jul 6, 2010
    #8
  9. sean473

    sean473 Notebook Prophet

    Reputations:
    613
    Messages:
    6,705
    Likes Received:
    0
    Trophy Points:
    0
    u should do this.. its should be a super upgrade... only thing is u can't OC much and really u don't need too... u might want to get a 150W PSU... i thing u might have a power shortage otherwise..

    sean473, Jul 6, 2010
    #9
  10. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    the Mobility HD5850 and the GTX 460M is MXM 3.0

    no support on my mainbroad :(

    the 9800M GTX max clock as far as I know is 562/1440/1900
    bcz of the limited PSU

    almost the same performance comparing to the GTS160M @ 700/1800/2000

    that is a sad info

    mitsuhide, Jul 6, 2010
    #10
  11. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Maybe you should get a 4850, it doesn't need the HE tab.

    moral hazard, Jul 6, 2010
    #11
  12. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    HD4850 has no PhyX

    I need DirectX 10 + PhyX

    mitsuhide, Jul 6, 2010
    #12
  13. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    Where do you get that? :D

    Ayle, Jul 6, 2010
    #13
  14. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30

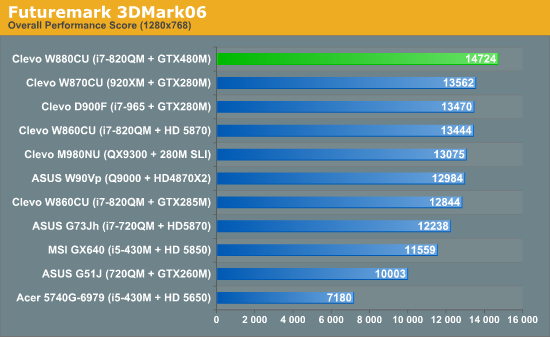

    9800M GTS SLI> GTS 160M = HD 4850 > HD 5850 GDDR3


    Attached Files:

    • he.png
      File size:
      131.1 KB
      Views:
      146
    mitsuhide, Jul 6, 2010
    #14
  15. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Jul 6, 2010
    #15
  16. Amnesiac

    Amnesiac 404

    Reputations:
    1,312
    Messages:
    3,433
    Likes Received:
    20
    Trophy Points:
    106
    Yeah, but only marginally. It's not phenomenally better.

    I think his GTS 160M = 4850 is a bit off, considering that the 4850 is a little better than the GTX 260M, and the 260M is better than the 160M.

    Amnesiac, Jul 7, 2010
    #16
  17. sean473

    sean473 Notebook Prophet

    Reputations:
    613
    Messages:
    6,705
    Likes Received:
    0
    Trophy Points:
    0
    pure nonsence.. 4850 can trash a 9800M GTX.. even a GTS SLI... anyways , go ahead with upgrade but get a bigger power supply..

    sean473, Jul 7, 2010
    #17
  18. thundernet

    thundernet Notebook Deity

    Reputations:
    609
    Messages:
    1,285
    Likes Received:
    0
    Trophy Points:
    55
    I don't think the change is worth all the hasle...Minimal,if any,improvement...

    thundernet, Jul 7, 2010
    #18
  19. sean473

    sean473 Notebook Prophet

    Reputations:
    613
    Messages:
    6,705
    Likes Received:
    0
    Trophy Points:
    0
    it is quite an improvement... and certainly worth the hassle.

    sean473, Jul 8, 2010
    #19
  20. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,900
    Trophy Points:
    931
    Based off a single benchmark based off DX9 for DX10/DX11 cards....

    Meaker@Sager, Jul 8, 2010
    #20
  21. MexicanSnake

    MexicanSnake I'm back!

    Reputations:
    872
    Messages:
    1,244
    Likes Received:
    0
    Trophy Points:
    55

    Yeah you are right that guy is nuts!
    GTS 160m = 4850 ??

    LMAO!!!!

    The 4850 is even more powerful than a gtx 260m....
    Even the hd 3870 is almost on par with the gts 160m... ;) (I had both)

    MexicanSnake, Jul 8, 2010
    #21
  22. tuηay

    tuηay o TuNaY o

    Reputations:
    492
    Messages:
    3,711
    Likes Received:
    0
    Trophy Points:
    105
    I would love to see 9800M GTX at 562/1440/1900. Max I could get up to stable is in my signature...

    tuηay, Jul 8, 2010
    #22
  23. hikkoo

    hikkoo Notebook Consultant

    Reputations:
    397
    Messages:
    222
    Likes Received:
    0
    Trophy Points:
    30
    theres a Gen1 an Gen2 9800mGTX

    still have original Gen1> max can reach 664/1035/1660
    had reports that Gen2 cant match it

    think able to reach high clks is to do with setup, no dust inside, all fans on 100% speed all the time in xpsm1730 an possibly to do with gpu bios different to Gen2

    hikkoo, Jul 9, 2010
    #23
  24. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    the card owener told me that his 9800M GTX max clock isI Core562/Mem950/SP1440

    that may be the Gen2 :(

    I'd better stick to GTS 160M

    and then change to a Clevo D900F


    [​IMG]

    mitsuhide, Jul 9, 2010
    #24
