    How can I connect my adapter power to the six pin "Accessory Battery Connector" on the laptop's bottom?

    Discussion in 'HP Business Class Notebooks' started by geb, Jun 2, 2012.

  1. geb

    geb Notebook Enthusiast

    Reputations:
    15
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    I can't find a pin-out for this six-pin connector. My receptacle is corrupted on the back of the laptop. HP 8510W.

    I've disassembled and inspected and all the connections are fine on the board. I was finally able to inspect both sides of the board but all looks solid. I believe this is a multi layer PCB and the broken connection may be irrepairable (between layers).

    So the next option is to utilize the six-pin accessory battery connection on the bottom...... (number two below)

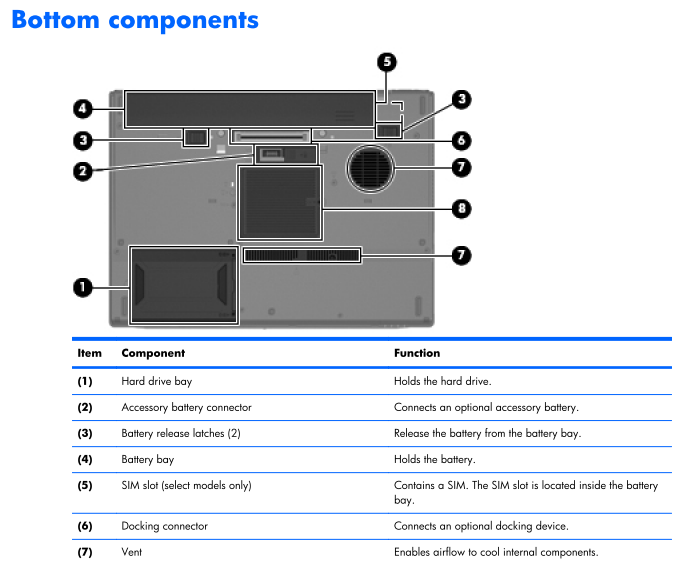

    [​IMG]

    Here is the "extended life battery" available for my model. Assuming the six-pin pin-out is the same among models.
    [​IMG]

    Anyone know where I might come upon a pin-out for the battery or laptop connection?

    geb, Jun 2, 2012
