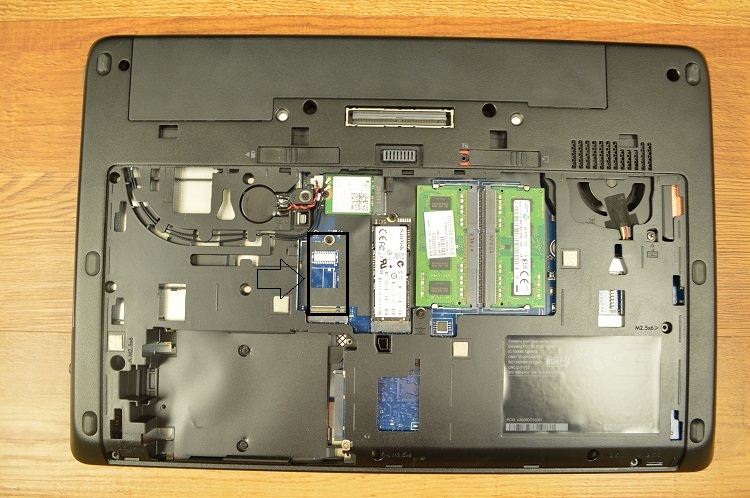

I own this workstation, after having run a deep search among: Hp websites for specs (all of the revisions available: http://www8.hp.com/h20195/v2/GetPDF.aspx/c04407527.pdf and http://h20195.www2.hp.com/v2/getpdf.aspx/c04434046.pdf?ver=4.0) I didn't find what kind of internal expansion/port/slot is I've highlighted in the picture below; it'd seem an msata one but after having verified (documentation and picture) it shouldn't . May you help me to recgnize it please?
Thank you.
![]()
-
-
That would WWAN
-
Thank you for your interest; may you help to know how you tell it please
Thank you.
-
Mini PCI and MSATA slots share the same form factors, which is perhaps where the confusion lies. Some machines can accept an SSD in such a slot but plenty of them can't. I use a secondary Wifi card in my slot or a WWAN GPS card when I go traveling with it. It depends whether the motherboard allows it from what I gather. Apparently the HP ZBook can accept an MSATA and use it as an SSD cache to speed up loading some applications but it's worth a check to make sure I'm not talking absolute rubbish.
-
You're right. That is the slot for the Wan card; here is the url where is showed by HP how to replace it: http://h20566.www2.hp.com/hpsc/doc/...978814&docId=emr_na-c04472091&docLocale=en_US
-
On the ZBook 17 G2 can you install an mSATA in that slot or it the connections not compatible?
-
Fortuitously, the relevant thread popped up on the newsfeed:
http://forum.notebookreview.com/threads/zbook-g2-owners-alternatives-to-z-turbo-drive.769103/
Apparently it can accept a PCIe SSD but *not* an mSATA SSD. More info in the thread so worth a look through it.
Is that inside port/slot available not documented yet?
