    Question about CPU core frequency scaling on 8710w

    Discussion in 'HP Business Class Notebooks' started by StressPod, Oct 23, 2015.

  1. StressPod

    StressPod Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    An older unit, I know. I've just replaced the T7500 proc with a T7700. I have been watching what appears to be the core frequency auto-scaling with CPU-Z.

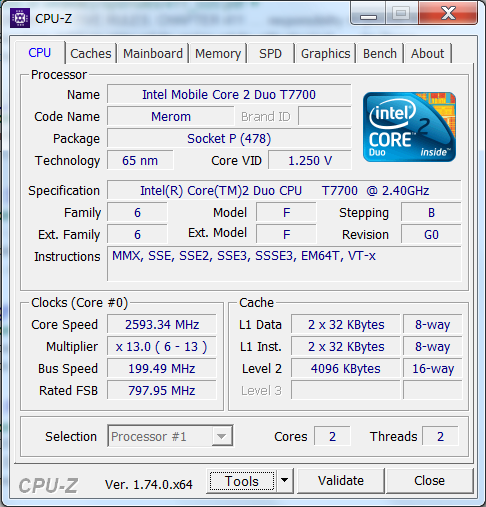

    My question is as follows: How can the core frequency and the multiplier exceed the designated CPU frequency? Specifically, the T7700 is rated at 2.4 GHz (2400 MHz). But according to the real-time monitor in CPU-Z, the core speed scales up to almost 2600 MHz on occasion. Please see the attached screenshot and note the 2593.34 MHz value. This notebook is not OC'd ... so I'm wondering how the core frequency can jump that high. I can see it's because the multiplier increases to a factor of x 13.0, but I don't understand how it can do that without being overclocked.

    Thanks in advance.

    [​IMG]

    StressPod, Oct 23, 2015
    #1
  2. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    octiceps, Oct 23, 2015
    #2
    CaerCadarn and StressPod like this.
  3. StressPod

    StressPod Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Ah, Okay. IDA must be it then. Thanks much!

    StressPod, Oct 23, 2015
    #3
