    Getting backlit keyboard for DV6?

    Discussion in 'HP' started by ZeiKu, Apr 24, 2011.

  1. ZeiKu

    ZeiKu Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    is it possible to replace my current keyboard with a backlit keyboard on my DV6-3210? if it is, where can i find the parts?

    thanks

    ZeiKu, Apr 24, 2011
    #1
  2. shasta7

    shasta7 Notebook Evangelist

    Reputations:
    63
    Messages:
    359
    Likes Received:
    1
    Trophy Points:
    31
    you can search here if they have one.
    Search Results

    shasta7, Apr 24, 2011
    #2
  3. ZeiKu

    ZeiKu Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    ZeiKu, Apr 24, 2011
    #3
  4. Bag3l

    Bag3l Notebook Evangelist

    Reputations:
    43
    Messages:
    446
    Likes Received:
    0
    Trophy Points:
    30
    Bag3l, Apr 24, 2011
    #4
  5. ZeiKu

    ZeiKu Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15

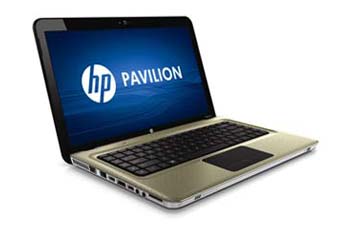

    uhh i have the DV6-3210us which is this one which has no numberpad


    Attached Files:

    ZeiKu, Apr 25, 2011
    #5
  6. Bag3l

    Bag3l Notebook Evangelist

    Reputations:
    43
    Messages:
    446
    Likes Received:
    0
    Trophy Points:
    30
    Oh my bad. I can't read haha. You need a power source. Does your laptop have an extra port?

    Bag3l, Apr 25, 2011
    #6
  7. shasta7

    shasta7 Notebook Evangelist

    Reputations:
    63
    Messages:
    359
    Likes Received:
    1
    Trophy Points:
    31
    the one above will work but do you have the port on the mobo for the second ribbon cable ,the power for the leds

    shasta7, Apr 25, 2011
    #7
  8. ZeiKu

    ZeiKu Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    erm well is there a service manual specifically made for the dv6-3210us? i dont wanna open up my laptop and void the warranty

    ZeiKu, Apr 25, 2011
    #8
  9. Bag3l

    Bag3l Notebook Evangelist

    Reputations:
    43
    Messages:
    446
    Likes Received:
    0
    Trophy Points:
    30
    I'd check the HP support page.

    Bag3l, Apr 25, 2011
    #9
  10. ZeiKu

    ZeiKu Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    i checked the support page and i looked at the service manual for it and it seems that its for all DV6 models, soo does this mean that itll be compatible for mine as well? :confused:

    ZeiKu, Apr 25, 2011
    #10
  11. KLF

    KLF NBR Super Modernator Super Moderator

    Reputations:
    2,844
    Messages:
    2,736
    Likes Received:
    896
    Trophy Points:
    131
    You could temporarily remove your current keyboard and see with your own eyes if the motherboard has led power plug. You need to remove it anyways if you are going to replace it :)

    KLF, Apr 25, 2011
    #11
  12. Scott_RC-TEK

    Scott_RC-TEK Notebook Deity

    Reputations:
    970
    Messages:
    829
    Likes Received:
    13
    Trophy Points:
    56

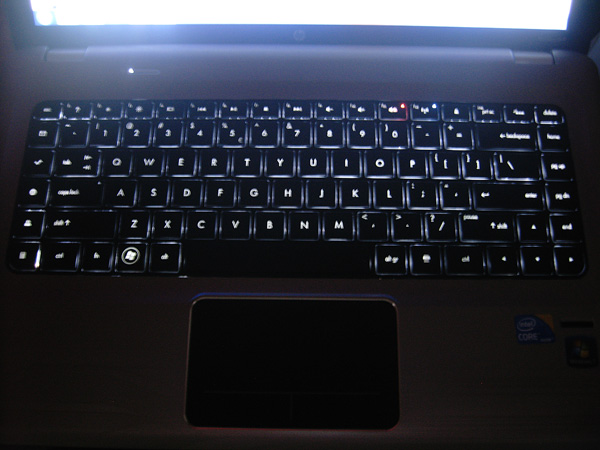

    I Just put this backlit keyboard in my DV6-3225dx and it works (plus feels) great. :D

    New HP DV6-3000 9Z.N4CBQ.11D US Keyboard with backlit | eBay

    Shipping from Asia took about 8 days to California. I believe all the 3000 series have the little header on the mother board so you should be good to go.

    Scott-

    [​IMG]

    Scott_RC-TEK, Apr 28, 2011
    #12
  13. ZeiKu

    ZeiKu Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    wow that looks amazing! how hard was it to install? i wanted to do it but i was skeptical about opening my laptop and then figuring out i wont have a slot for it and of course voiding my warranty on my 3 month old laptop but i feel like doing it now

    btw the link you sent, the sale ended but i found this? http://cgi.ebay.com/New-HP-Pavilion..._Trackballs&hash=item483ecb3d68#ht_5833wt_990

    ZeiKu, Apr 28, 2011
    #13
  14. Scott_RC-TEK

    Scott_RC-TEK Notebook Deity

    Reputations:
    970
    Messages:
    829
    Likes Received:
    13
    Trophy Points:
    56
    Yes, you are correct. To confirm, this is the current eBay offering: New HP Pavilion DV6 DV6-3000 US Backlit Keyboard Black | eBay

    It takes only 10-15 minutes to do the swap. Just reference page 65 of the service manual available here: http://h10032.www1.hp.com/ctg/Manual/c02657339.pdf

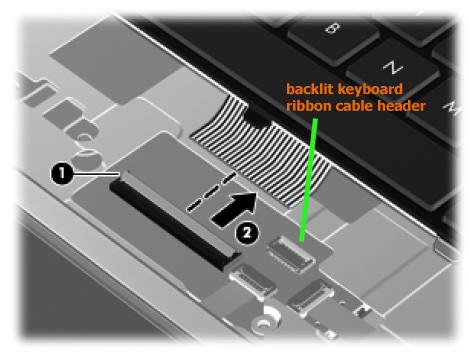

    Below is the location of the backlight header on the main system board under the keyboard. It is also silkscreened in white on the board so it is easy to find.

    Scott


    Attached Files:

    Scott_RC-TEK, Apr 28, 2011
    #14
  15. ZeiKu

    ZeiKu Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    0
    Trophy Points:
    15
    just removed the keyboard and i can confirmed there is a slot for backlit keyboard! will order asap thanks bro :D

    ZeiKu, Apr 28, 2011
    #15
  16. djyoshii

    djyoshii Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    Just wondering if the backlight on the keyboard can be switched on/off when needed (or not), or even if there is a light sensor that can control it automatically (and can be turned on/off manually as well)?
    Or will it permanently be backlit?

    Thinking of ordering one of these soon.

    Thanks :)

    djyoshii, May 28, 2011
    #16
  17. sav

    sav Notebook Consultant

    Reputations:
    1
    Messages:
    180
    Likes Received:
    0
    Trophy Points:
    30
    Yes, there a dedicated key to turn it on/off.

    sav, May 28, 2011
    #17
  18. djyoshii

    djyoshii Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    Thanks mate :)
    Was hoping that would be the case.

    EDIT: sorry, i was just looking at the images of the previous poster & the ebay ads, specifically this one http://cgi.ebay.com.au/ws/eBayISAPI...885328&ssPageName=STRK:MEWAX:IT#ht_2662wt_905
    (as it's the only one on sale at the moment), and can't see which key is the dedicated on/off one?

    It appears to look exactly the same as my stock keyboard (note i have an australian model).
    Thanks again :)

    djyoshii, May 28, 2011
    #18
  19. dvstudio3

    dvstudio3 Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    1
    Trophy Points:
    16
    I have an Australia model too ;).

    It's exactly the same as the non-backlit keyboard except for one key. Instead of the Pause key it's a ....* key to turn the backlit on/off.

    Hope that helps. :)

    dvstudio3, May 28, 2011
    #19
  20. aindriu80

    aindriu80 Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    0
    Trophy Points:
    30
    is there anything available for the HP PAVILION DV6 6053 ?

    how hard would it be to install and where can you turn it on and off from ?

    aindriu80, May 28, 2011
    #20
  21. lommy

    lommy Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5

    I would be interested to know this as well, as I also now have a DV6-6000

    lommy, Sep 4, 2011
    #21
  22. PlagueDoctor

    PlagueDoctor Notebook Evangelist

    Reputations:
    35
    Messages:
    383
    Likes Received:
    0
    Trophy Points:
    30
    Changing the keyboard voids warranty? If not, is there one for DV6T? :)

    PlagueDoctor, Sep 4, 2011
    #22
  23. len888

    len888 Notebook Evangelist

    Reputations:
    72
    Messages:
    486
    Likes Received:
    0
    Trophy Points:
    30
    agree could anyone do this mod? or sell one kind of this? :D

    len888, Sep 5, 2011
    #23
  24. lommy

    lommy Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Anyone been able to confirm for dv6-6000? Or has anyone found the service manual for this range?
    Desperate for getting a backlit keyboard onto this!

    lommy, Sep 8, 2011
    #24
  25. wittynorseman

    wittynorseman Notebook Consultant

    Reputations:
    42
    Messages:
    294
    Likes Received:
    0
    Trophy Points:
    30
    Uhhhhh... Ummmm.....

    http://forum.notebookreview.com/hp-...on-6xxx-series-owners-lounge.html#post7255589 ;)


    Last edited by a moderator: May 8, 2015
    wittynorseman, Sep 8, 2011
    #25
  26. danjuan

    danjuan Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    does anyone know where i can get a backlit keyboard from as there does not seen to be any about now??

    had a look on ebay

    danjuan, Sep 10, 2011
    #26
  27. laptopuser92

    laptopuser92 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    hey can i put one in my hp pavilion dv6-6c13nr??? thats one thing i forgot to get when i ordered my laptop and now i cant get one so can you help plzzzzzzz and thank you

    laptopuser92, Apr 14, 2012
    #27
