Guide: HP Pavilion DV6-6xxx screen replacement

Updated December 16 2012

Screen was purchased from LAPTOP SCREEN, LCD panels from $42. Dell, HP Compaq, Toshiba, Acer, IBM Lenovo, Sony, Gateway, Apple, Asus replacement screen display panel

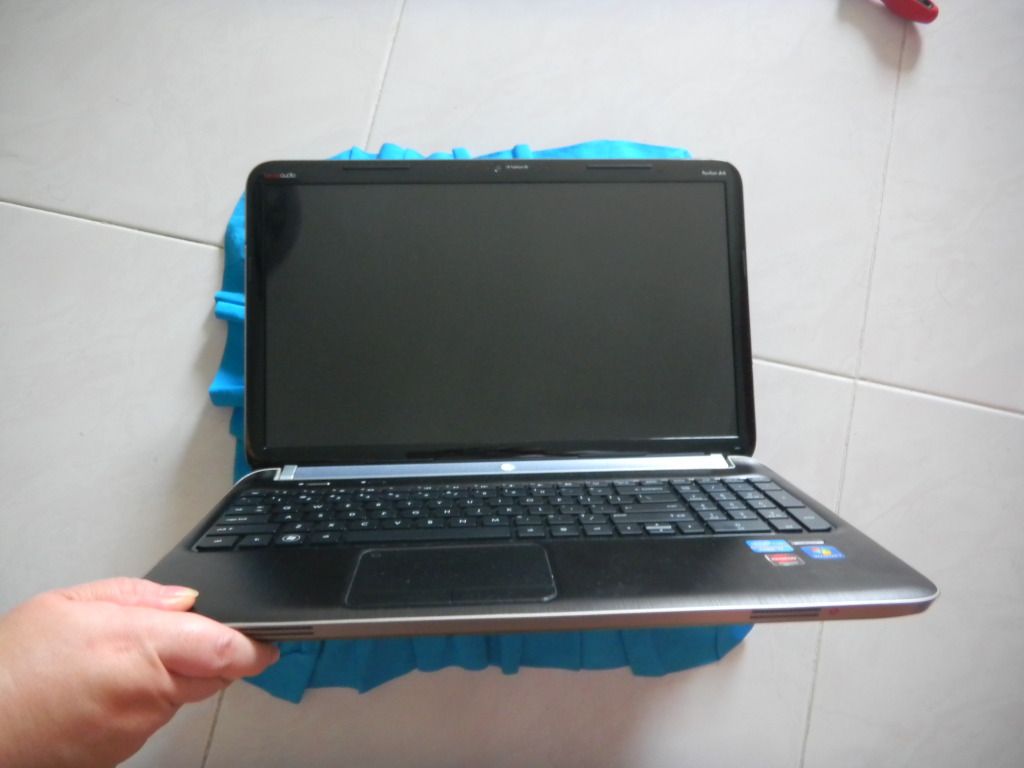

The laptop used in this guide is the HP Pavilion DV6-6100, seen here with the original Samsung SEC4251 (LTN156AT01) glossy display.



What you need to have first:

1. The 1080p screen (I used the AUO V.4 purchased from the link below)
AUO B156HW01 V.4 matte https://www.laptopscreen.com/English/screen-part-number/B156HW01~V.4/
AUO B156HW01 V.7 glossy https://www.laptopscreen.com/English/screen-part-number/B156HW01~V.7/
or a LG LP156WF1

2. A 1080p screen cable for the HP DV6 (HP used a cable that supported only 768p)
LCD LVDS Cable of HP Pavilion DV6-6000 FHD 50.4RN10.022

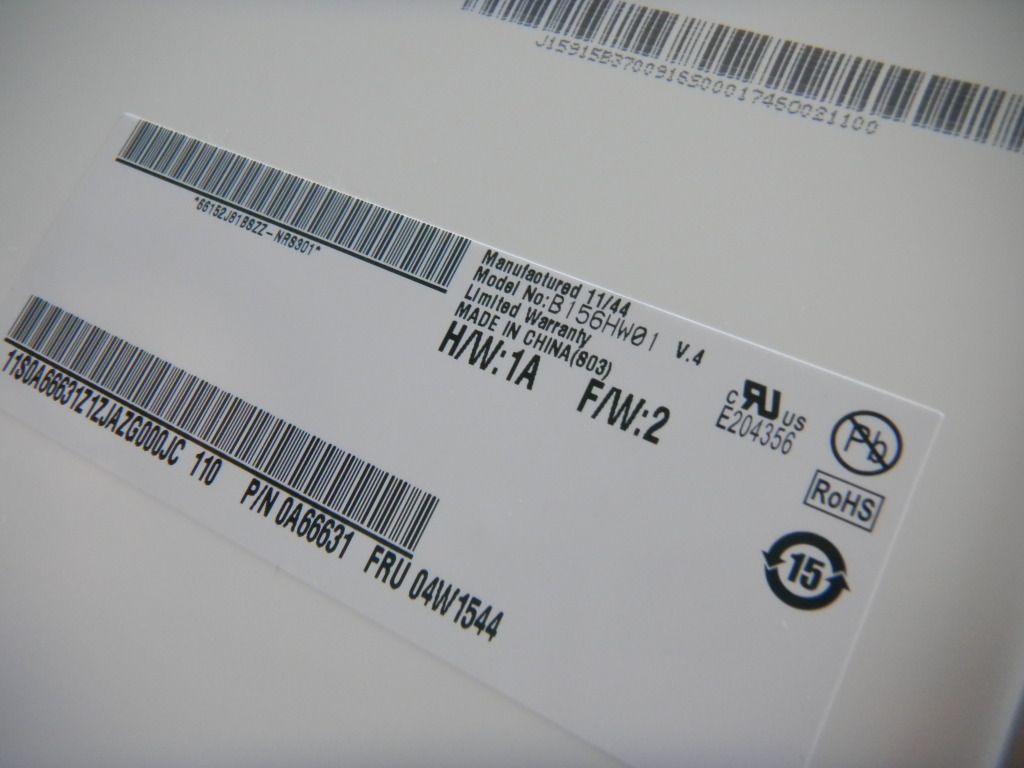

The new AUO screen used

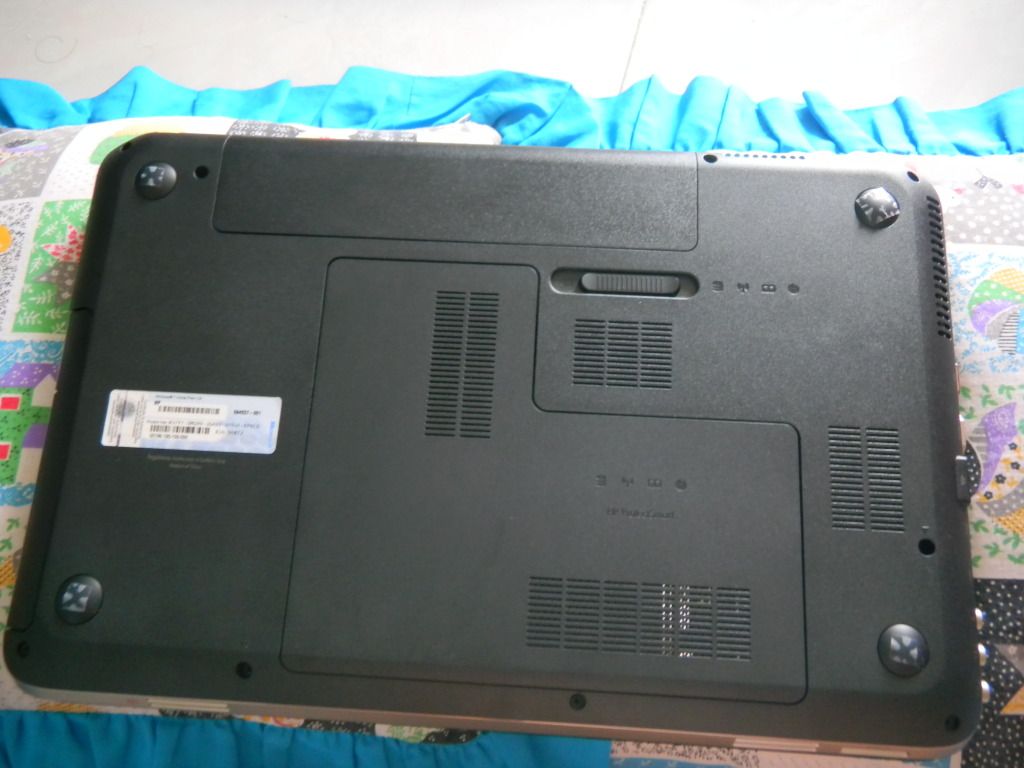

To begin, flip the laptop over.

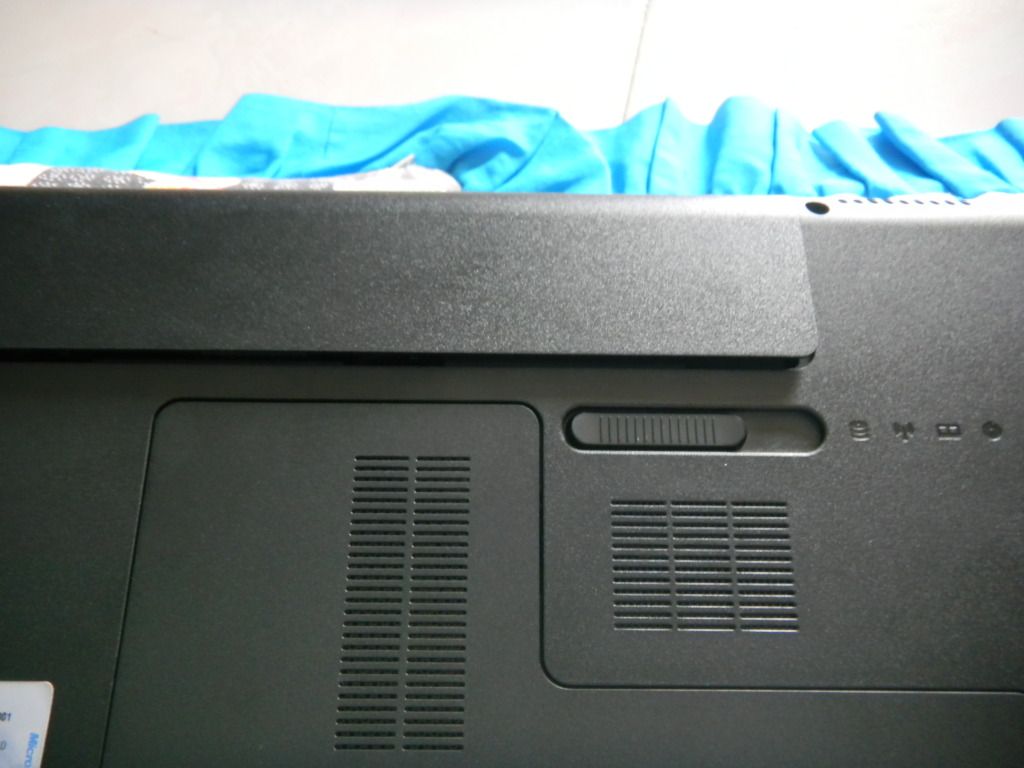

Slider to left, remove the battery.



Slider to right, remove the cover. Beware of the plastic tabs.

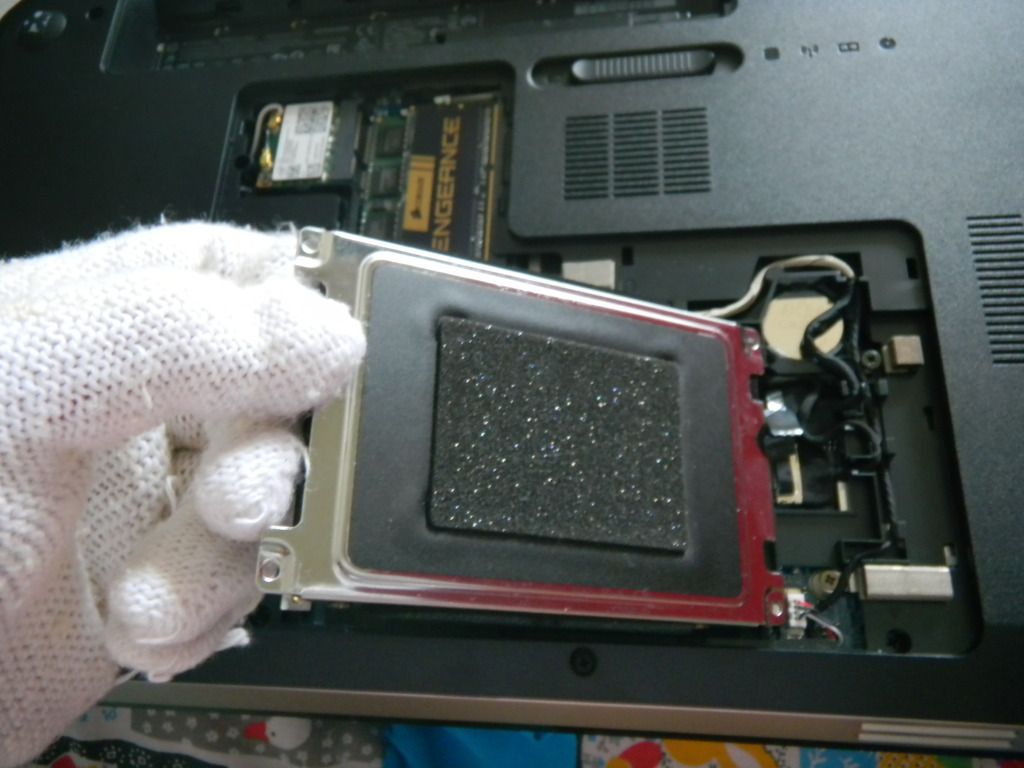

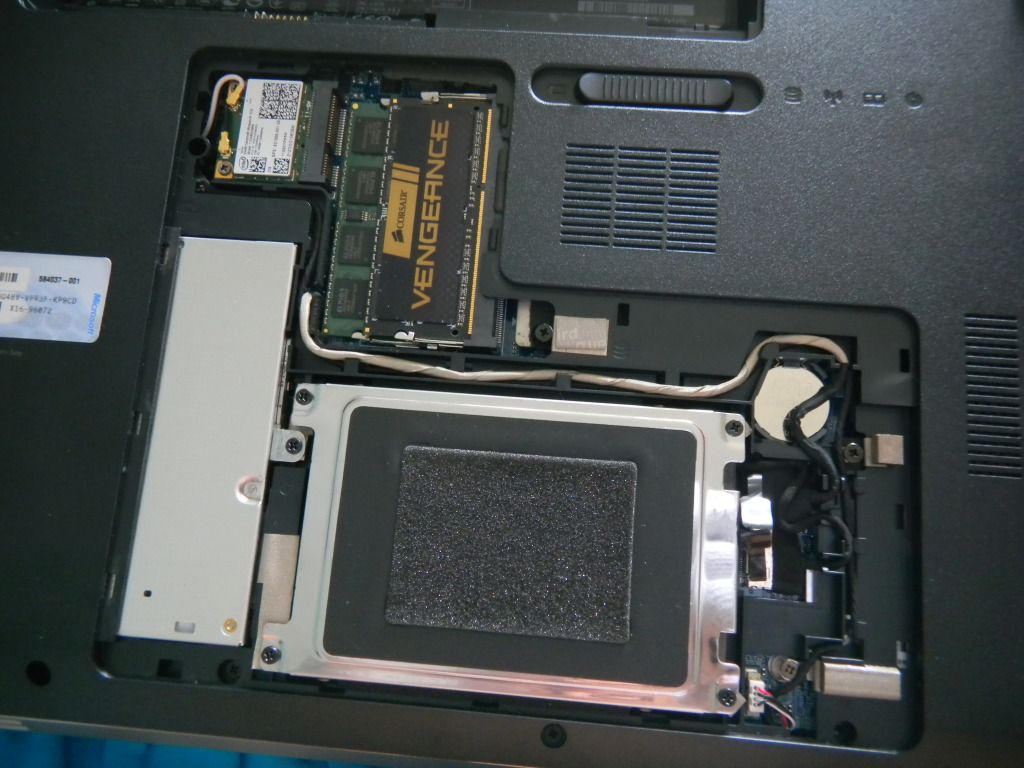

Remove the HDD which is secured by 4 screws. Also remove the 2 connectors at the side of the HDD using the plastic pull-tabs.

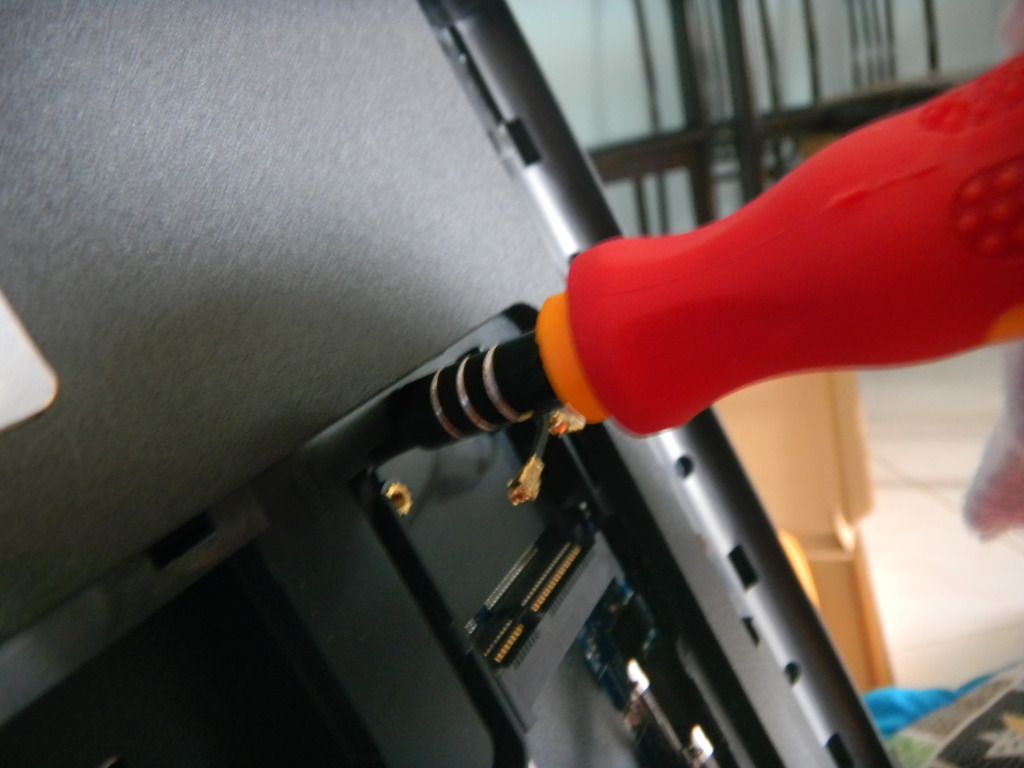

Then remove the wifi module and antennas. Unscrew the single screw holding the Optical Disc Drive, then slide the ODD out. Removal of RAM is optional.

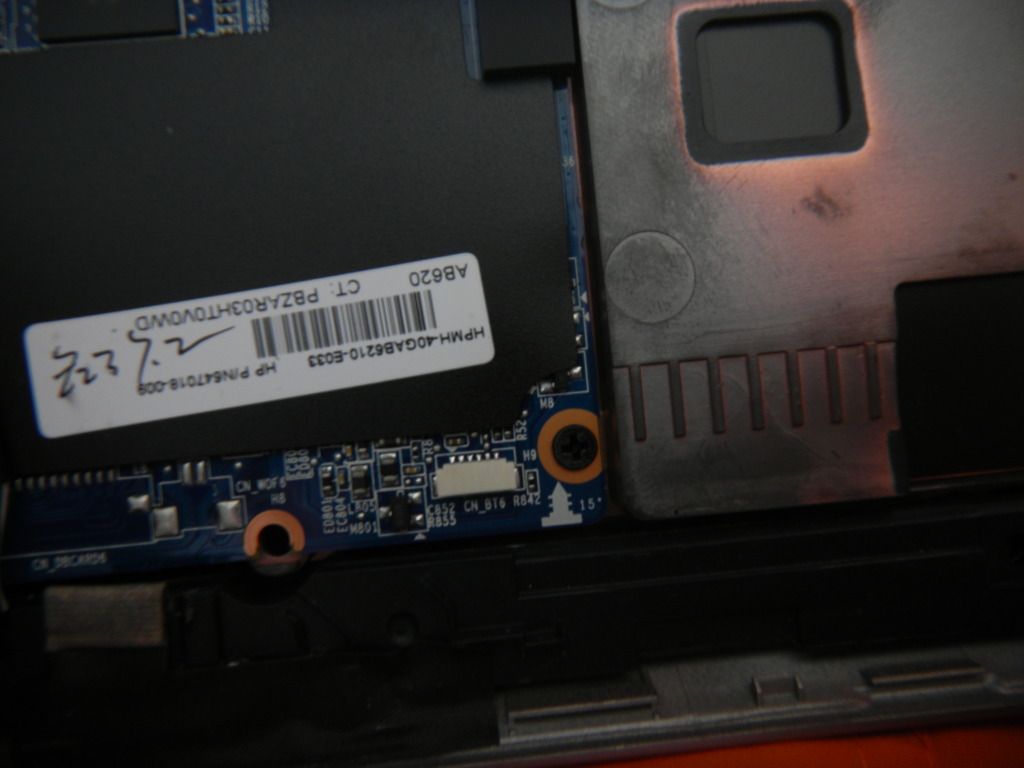

Remove the 3 tiny screws at the ODD area.

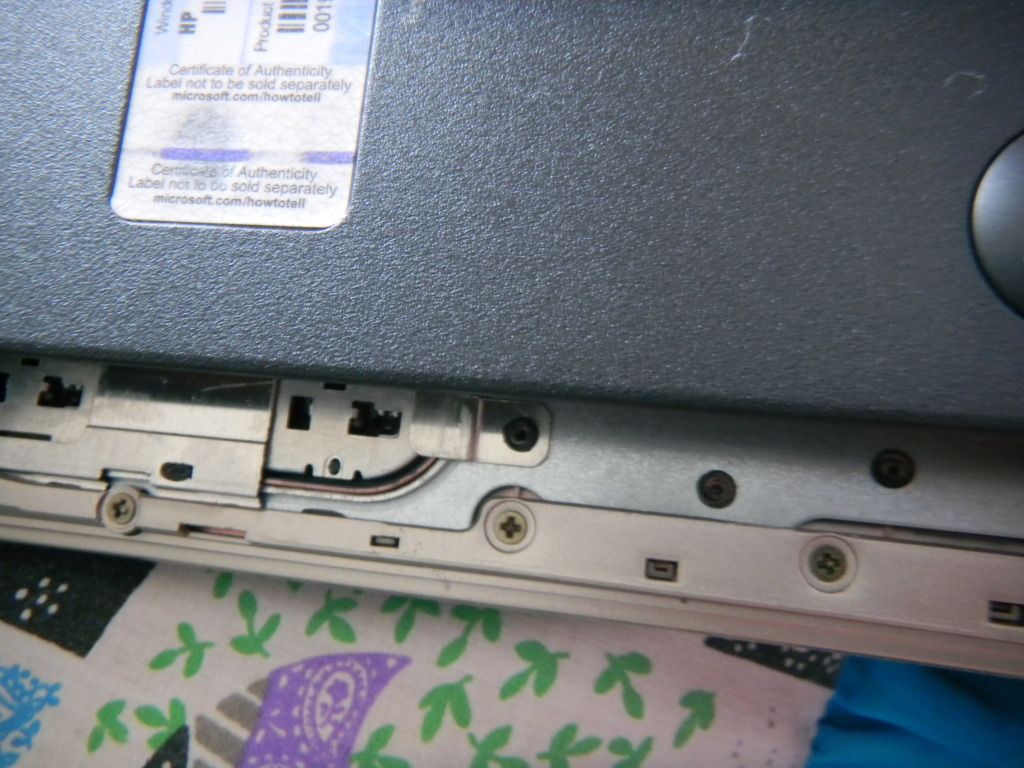

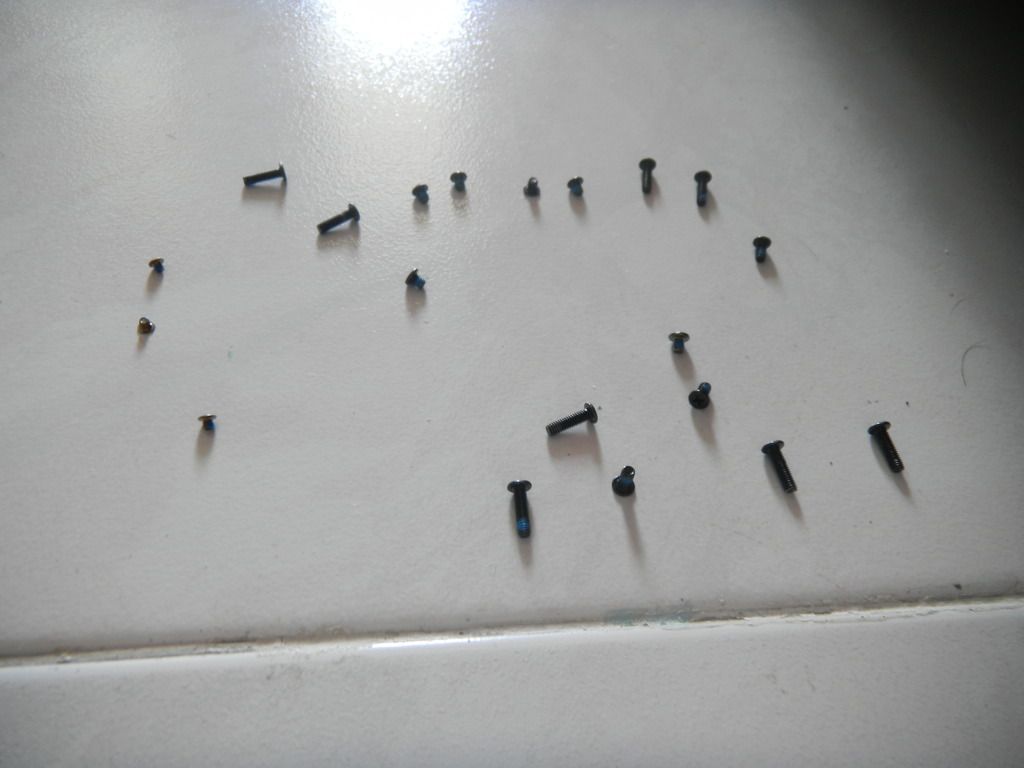

Remove all the screws at the bottom (look out for 1 screw at the HDD area, and another with the keyboard logo)

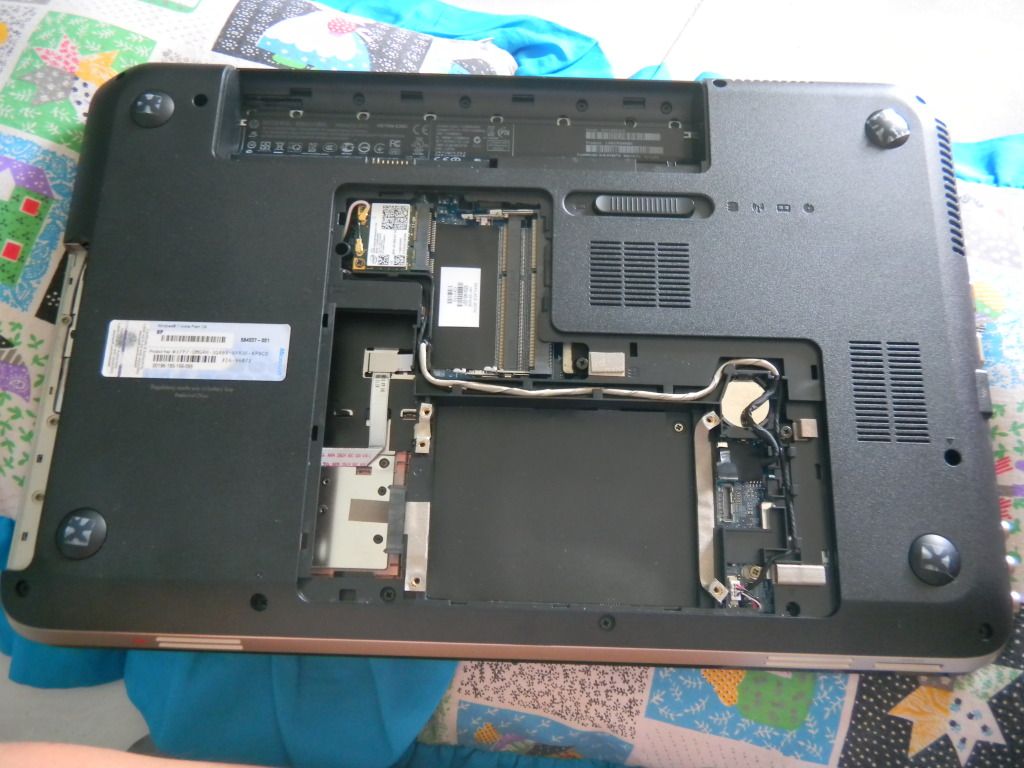

The relative layout of the different screws at the bottom is shown.

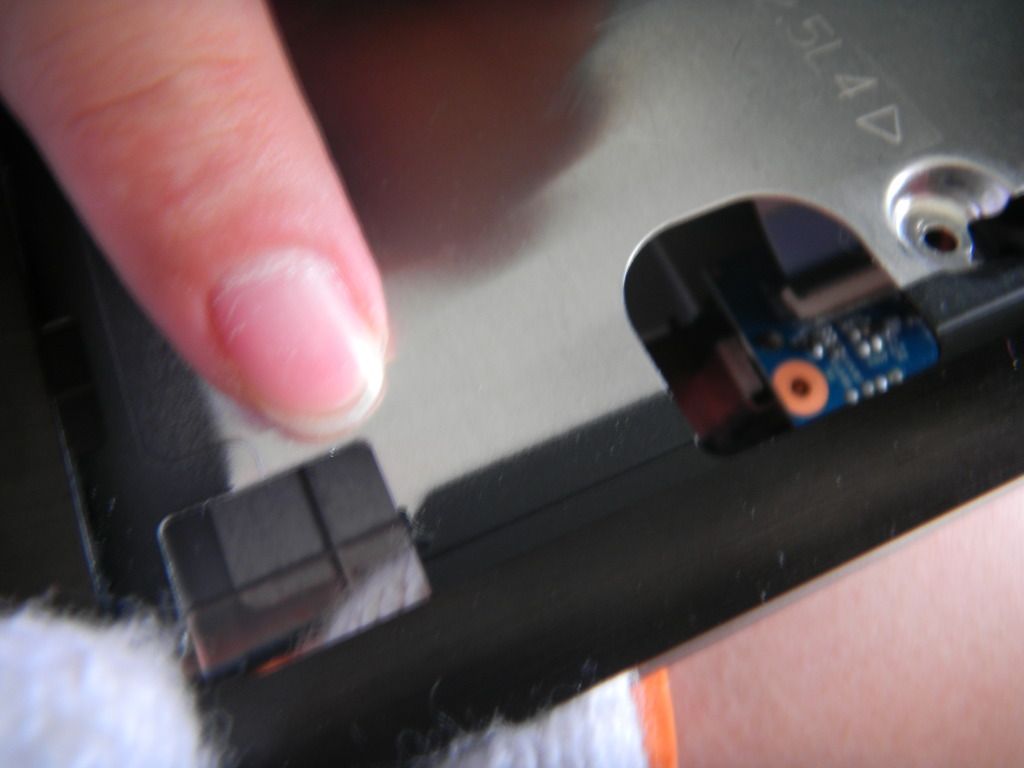

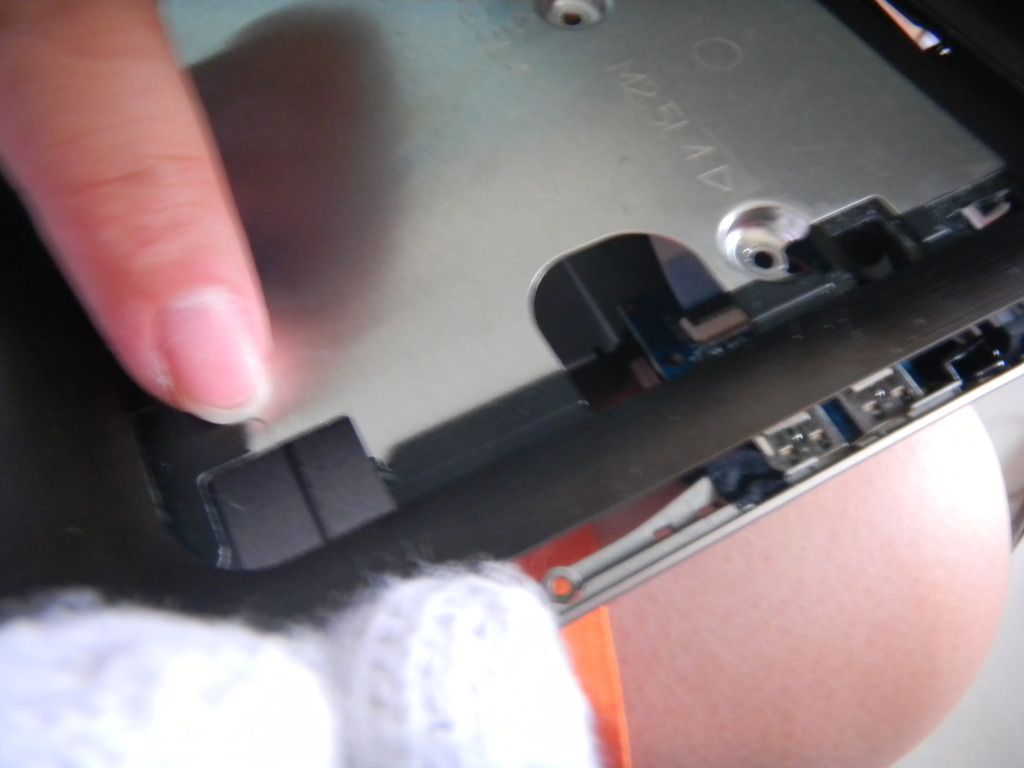

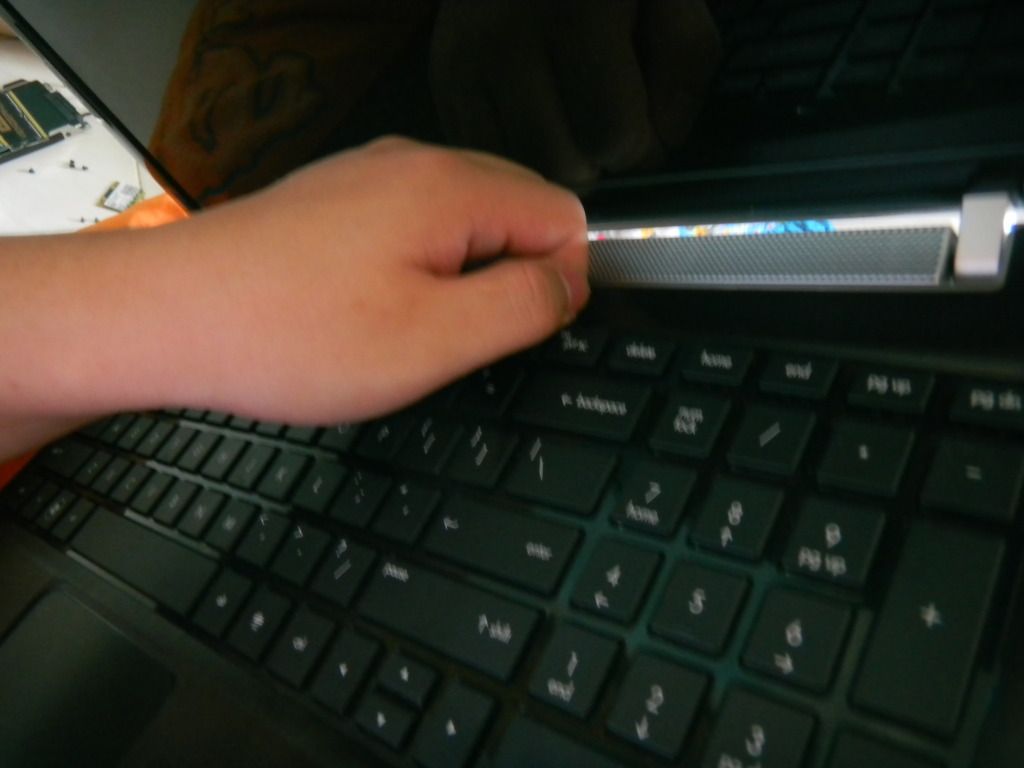

Then poke your screwdriver in as shown to remove the keyboard.

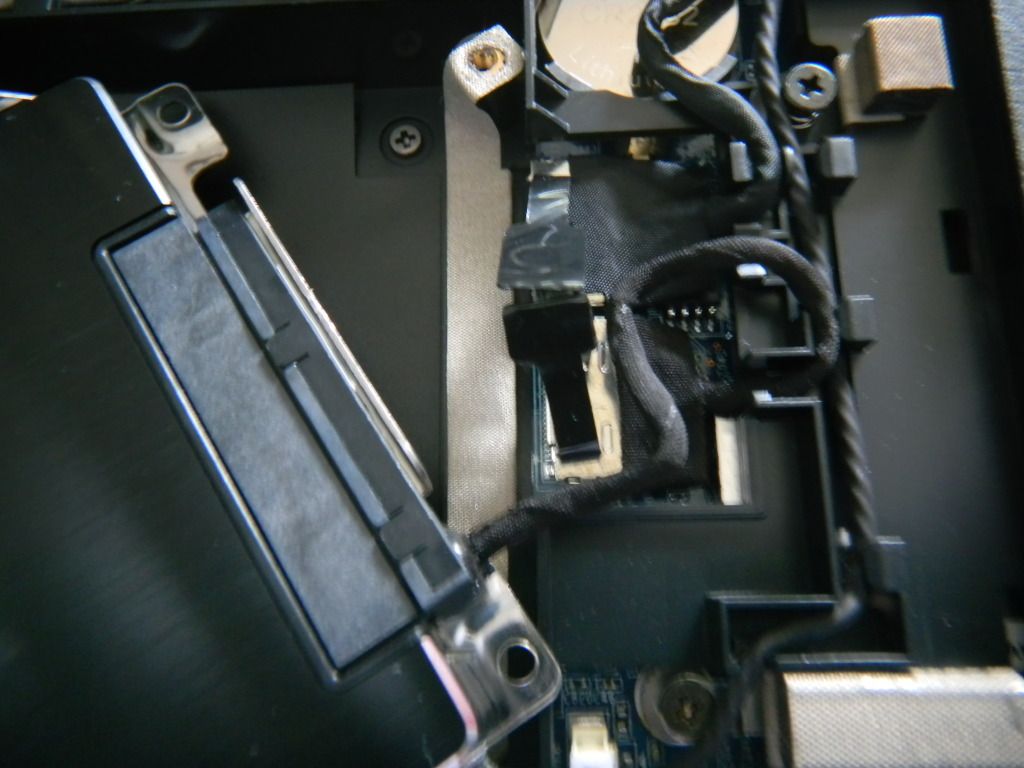

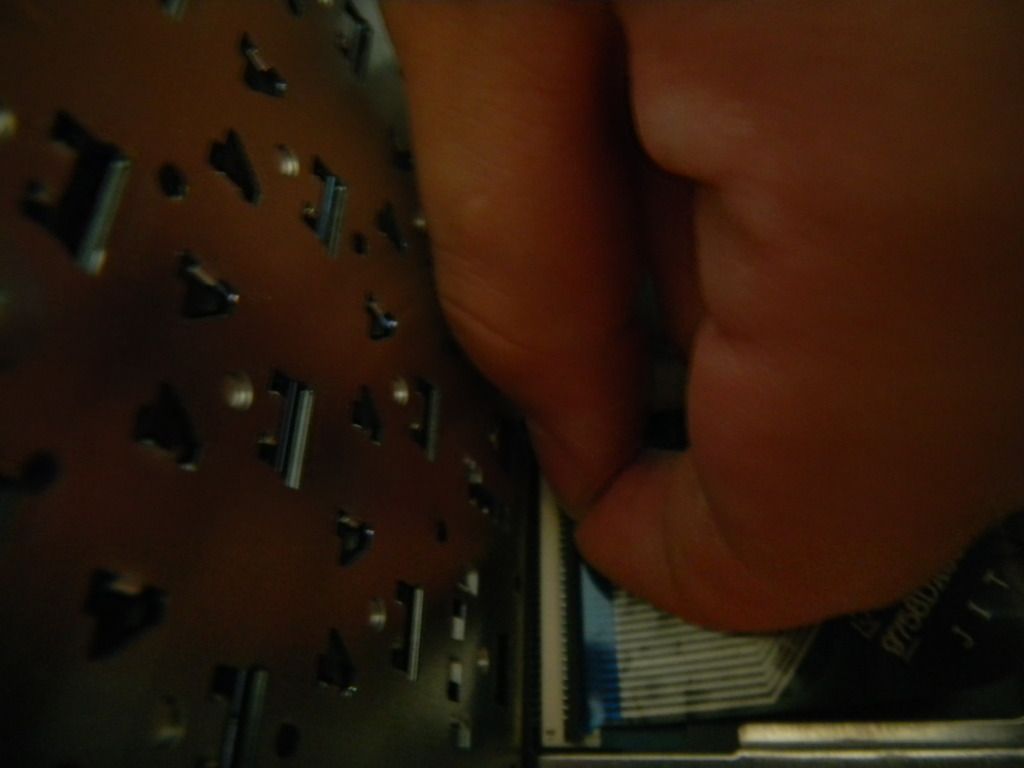

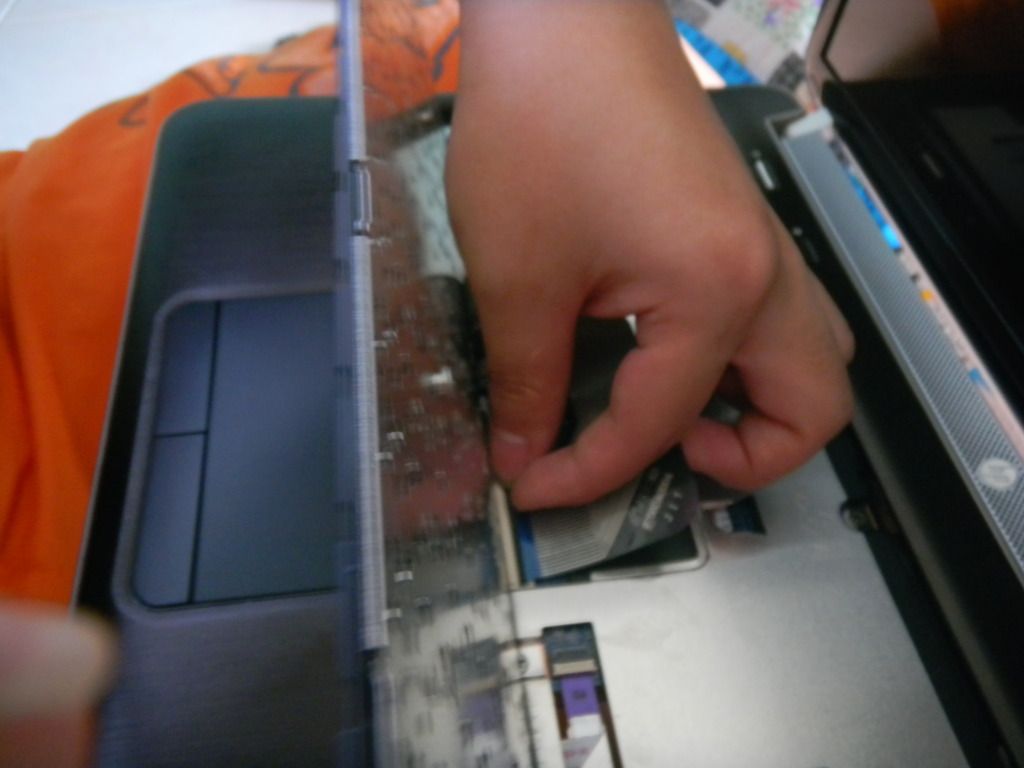

Beware of the Zero Insertion Force Cable (ZIF cable). The correct way to remove is to lift the hinge as shown.





Remove the 8 screws at the keyboard top cover area. Detach all the cables seen.



Start removing the top cover by using moderate amount of force from the right side. There are many plastic tabs so be careful.

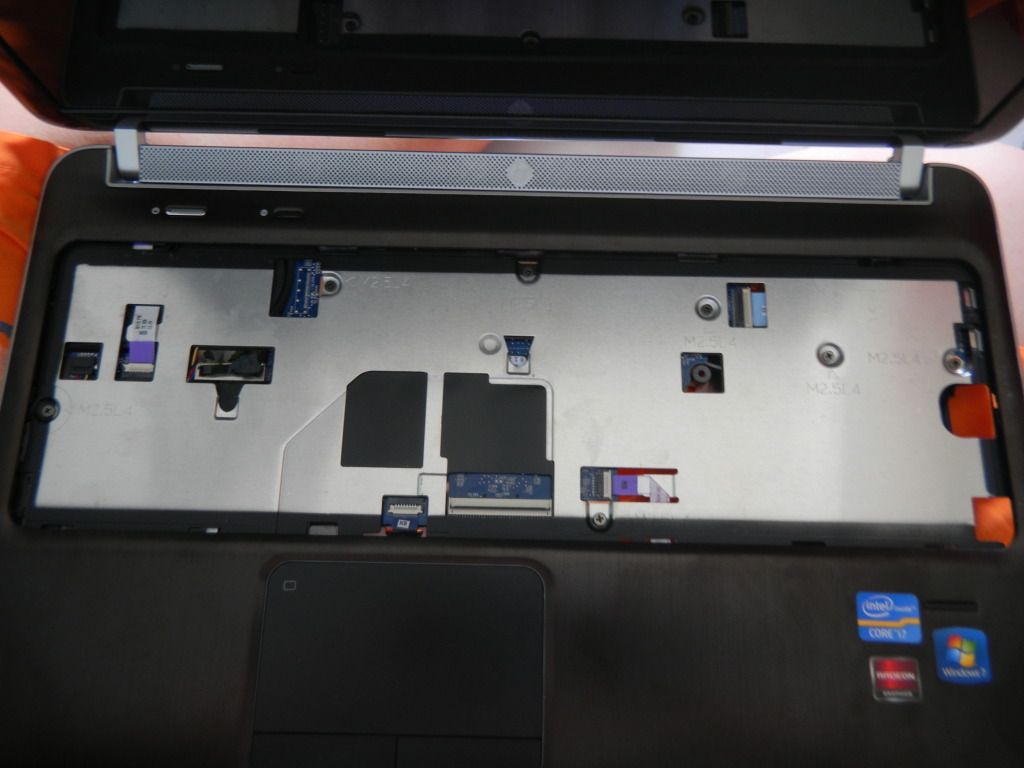

With top cover removed

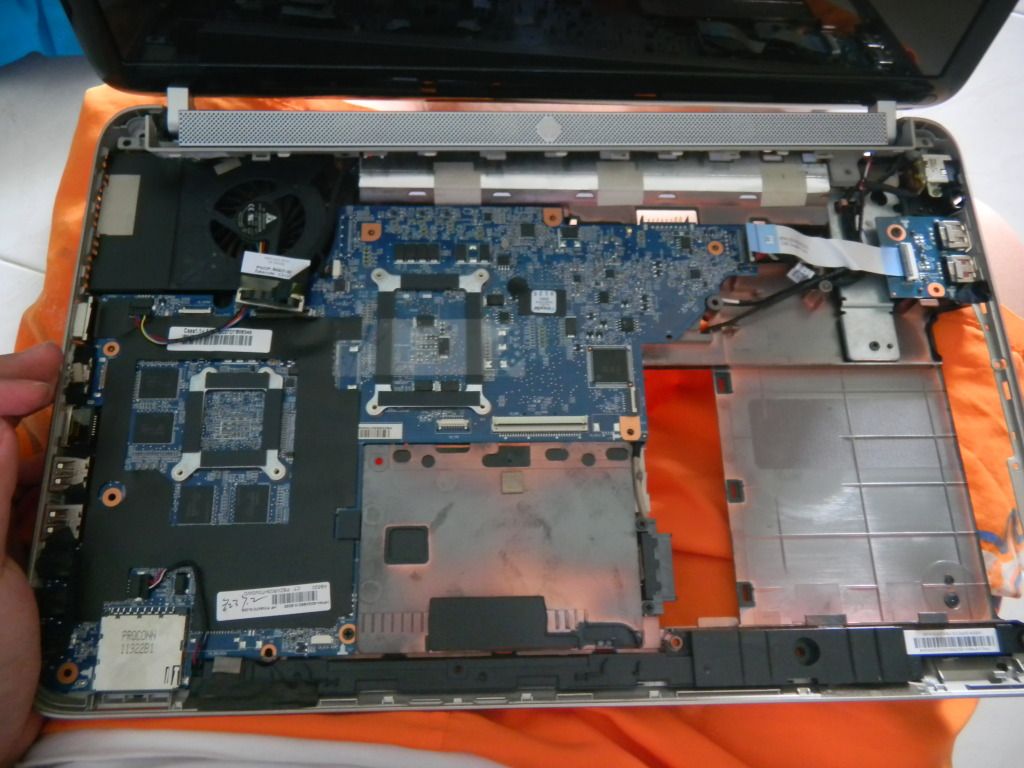

Remove the 1 screw at the bottom left. Now take note of how the screen cable is routed.

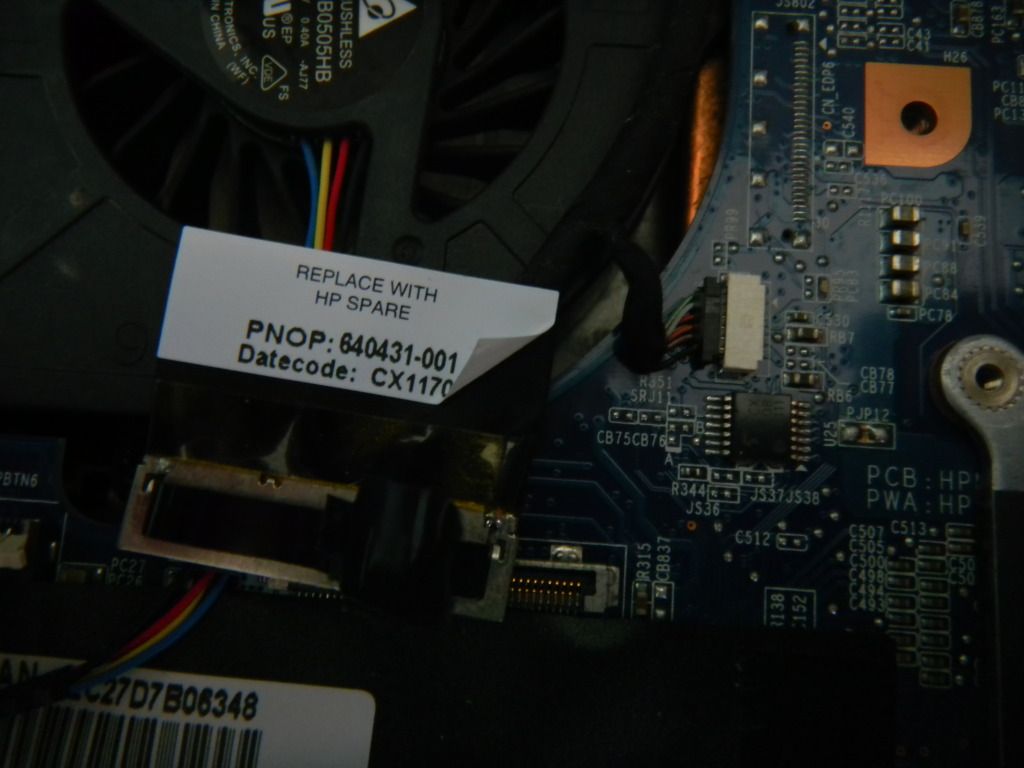

Remove the LVDS connector. Then remove 2 hidden screws in the gap between the fan and the motherboard.

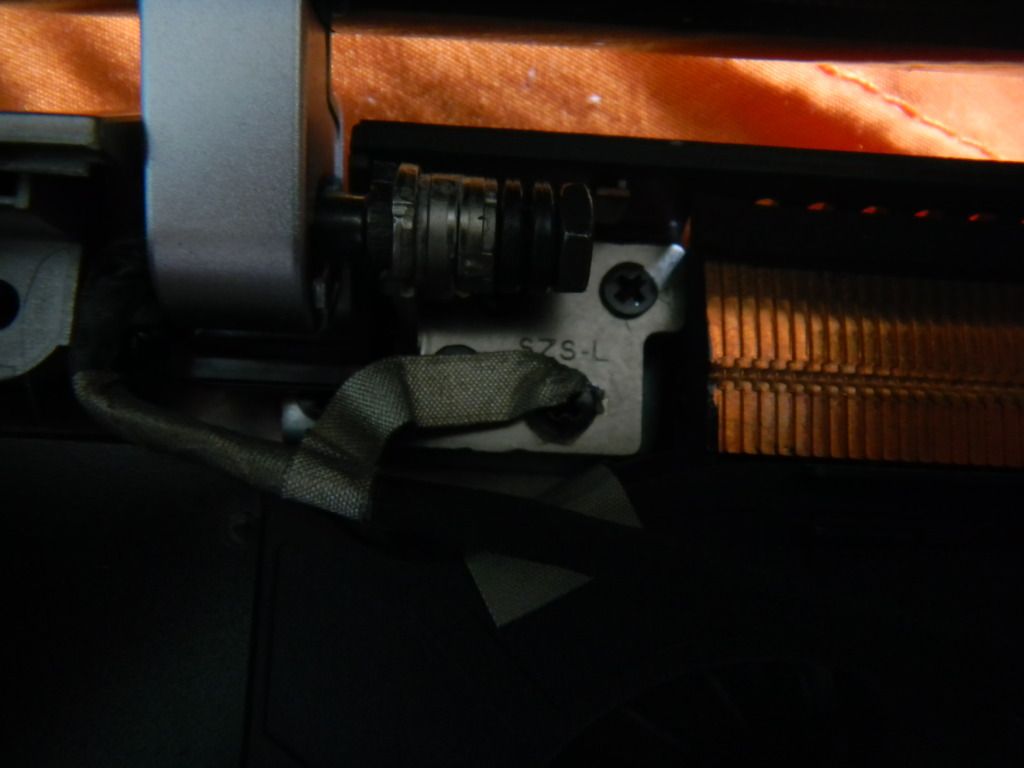

Remove the screw securing the old screen cable.

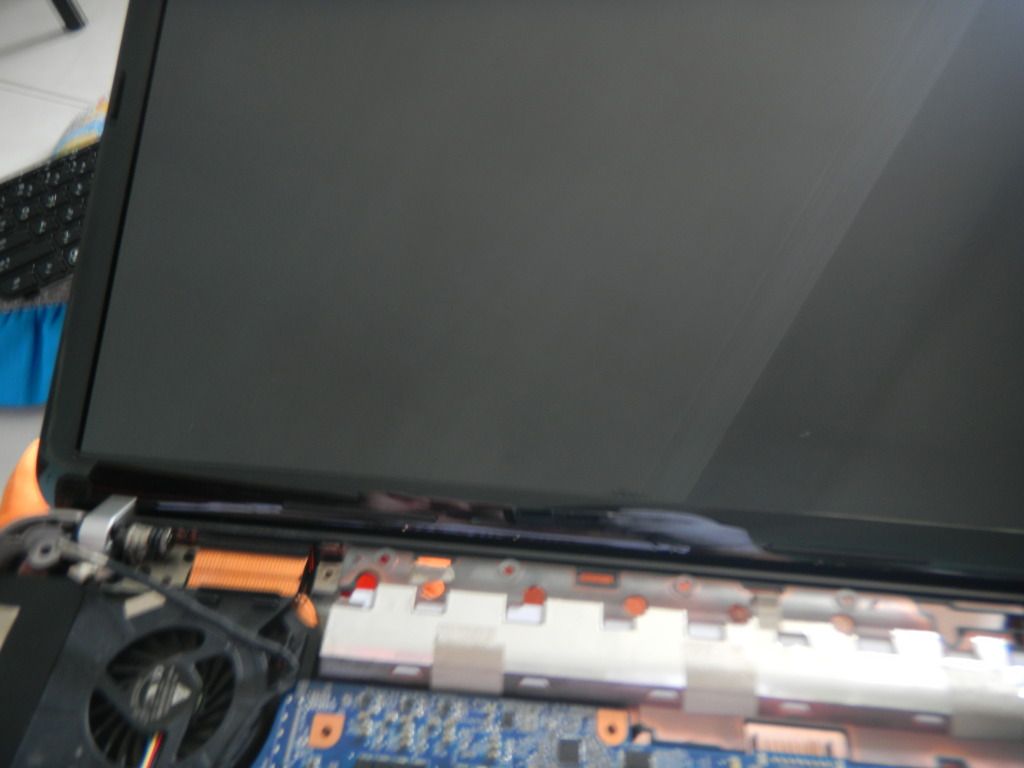

Tilt the display back as far as possible gently.

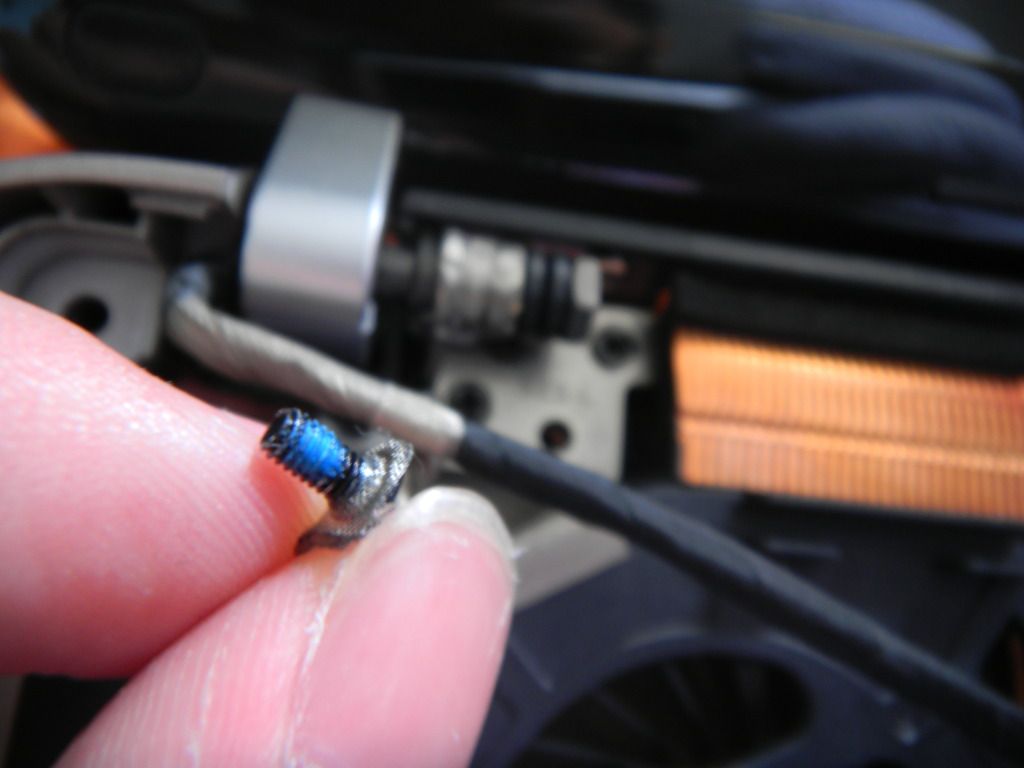

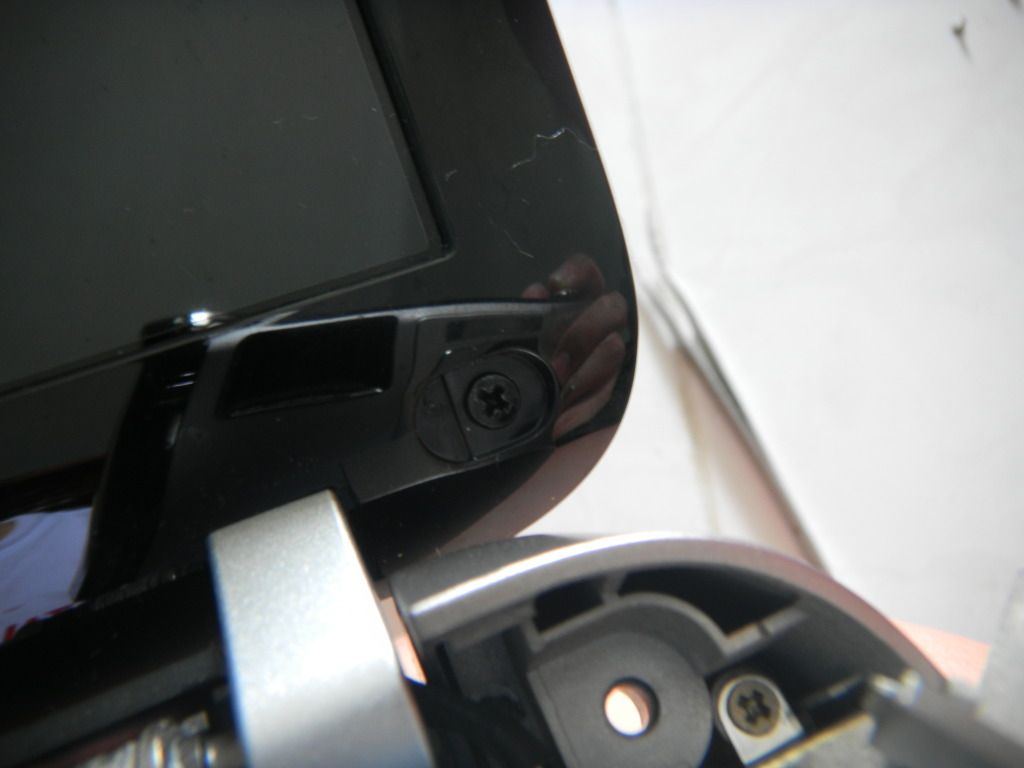

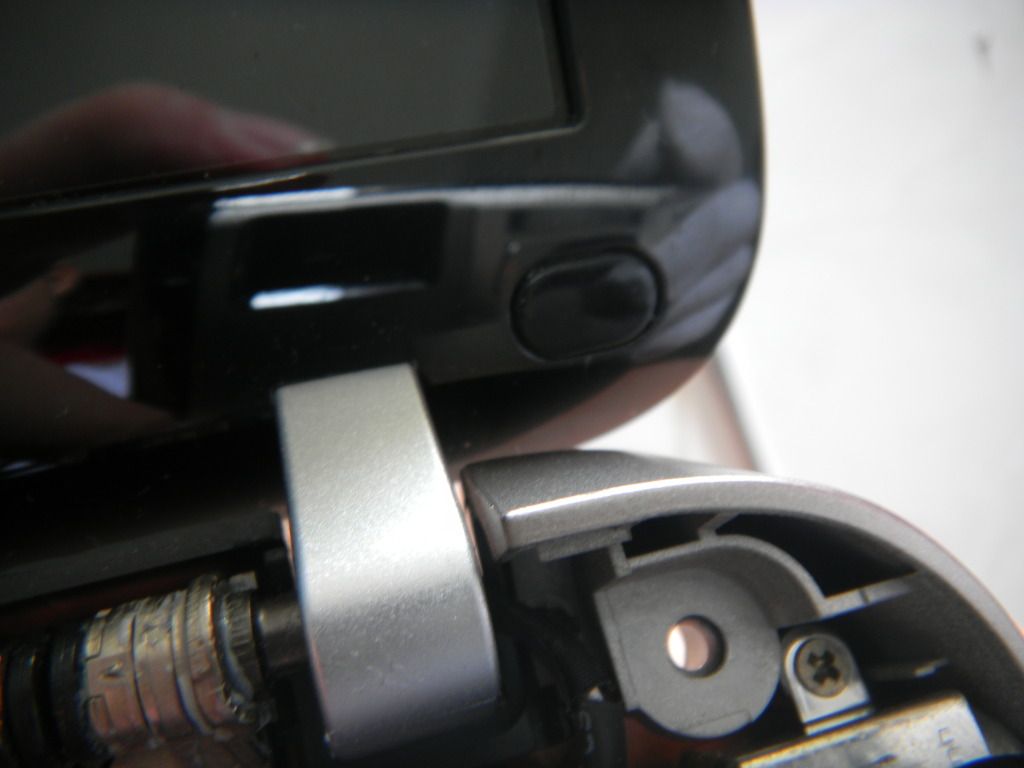

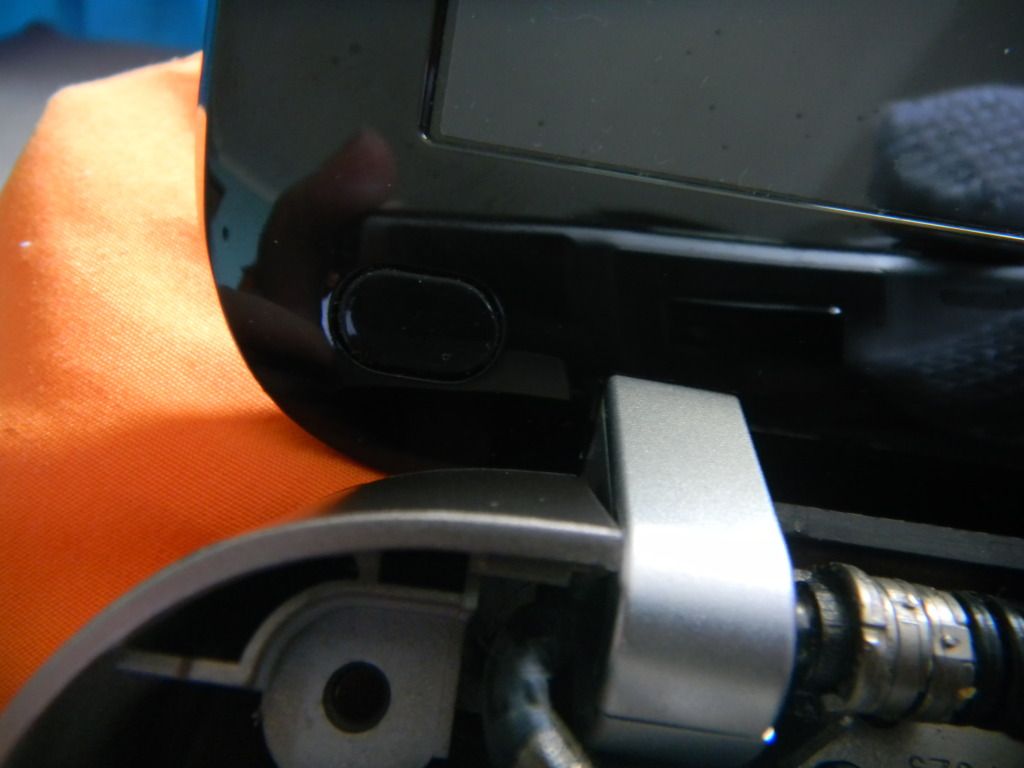

Remove the rubber caps and unscrew.

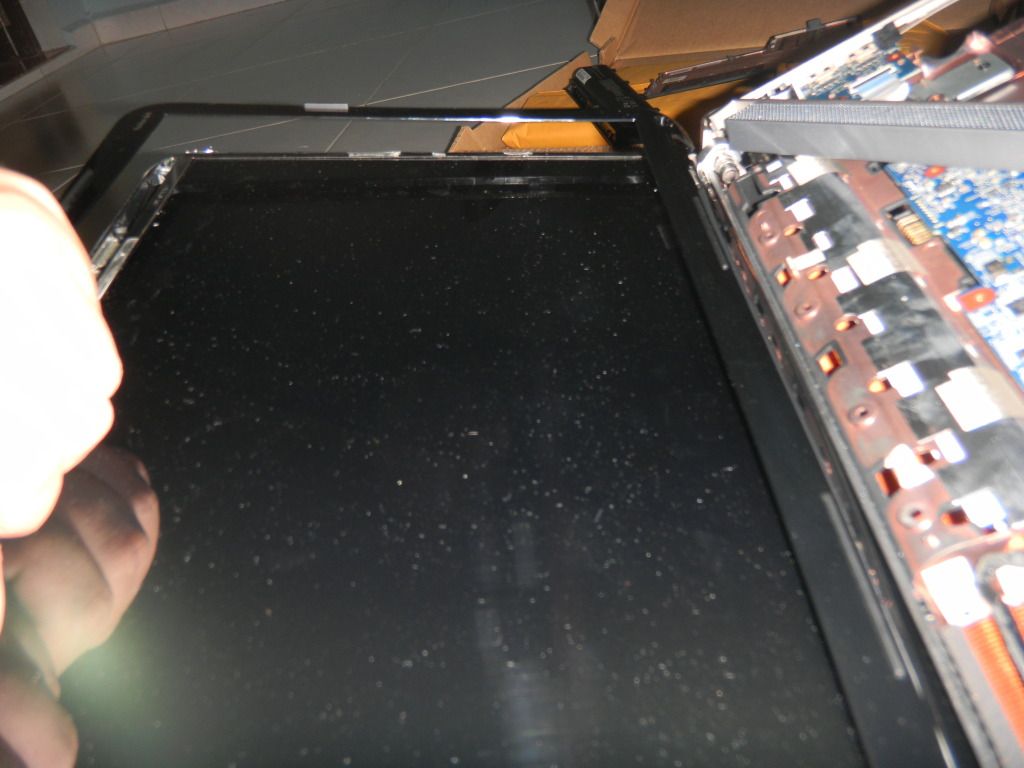

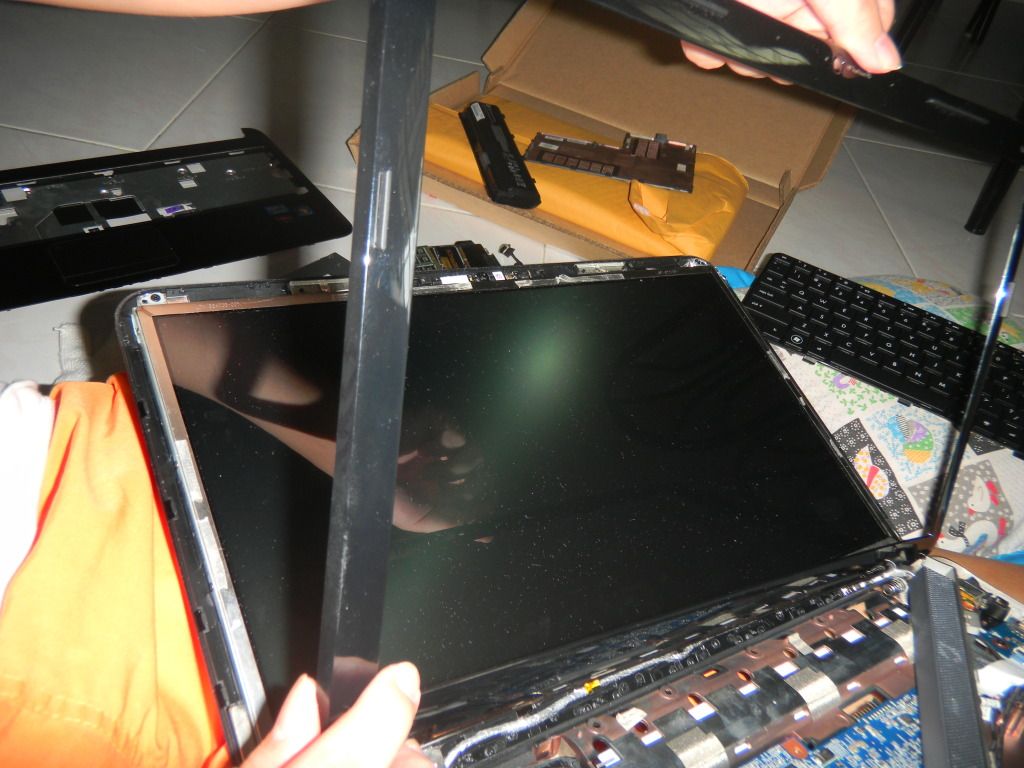

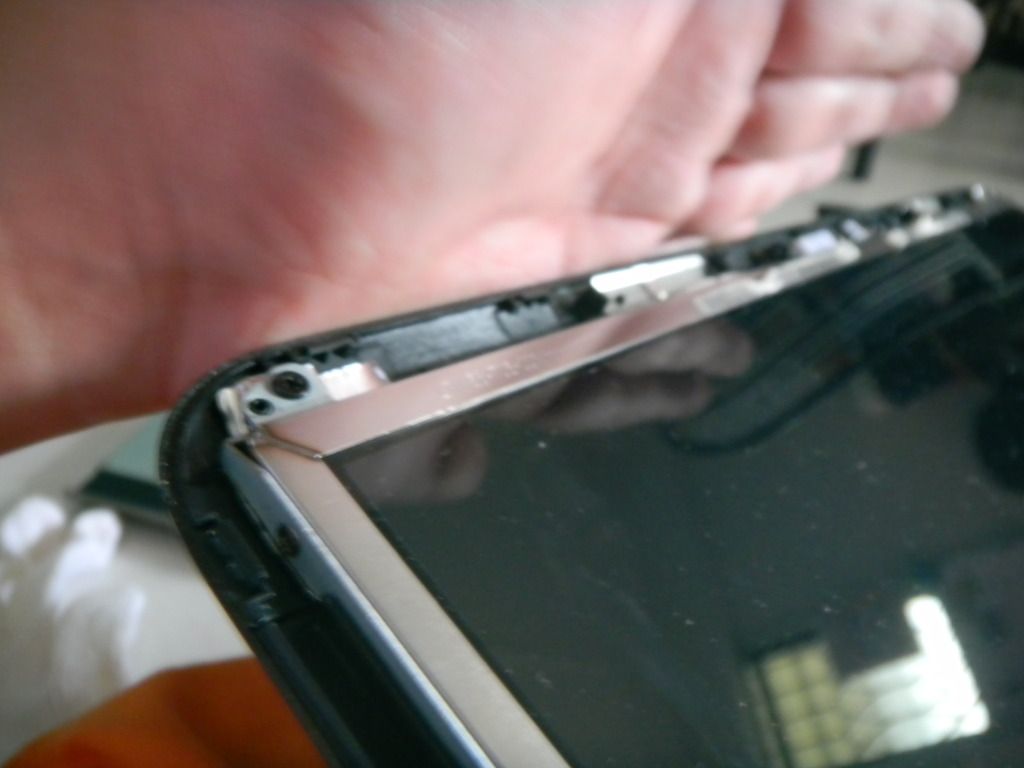

Pry away the display bezel as shown. There is sticky double sided tape in place.











Remove 2 screws, one on each side from the top of the display.

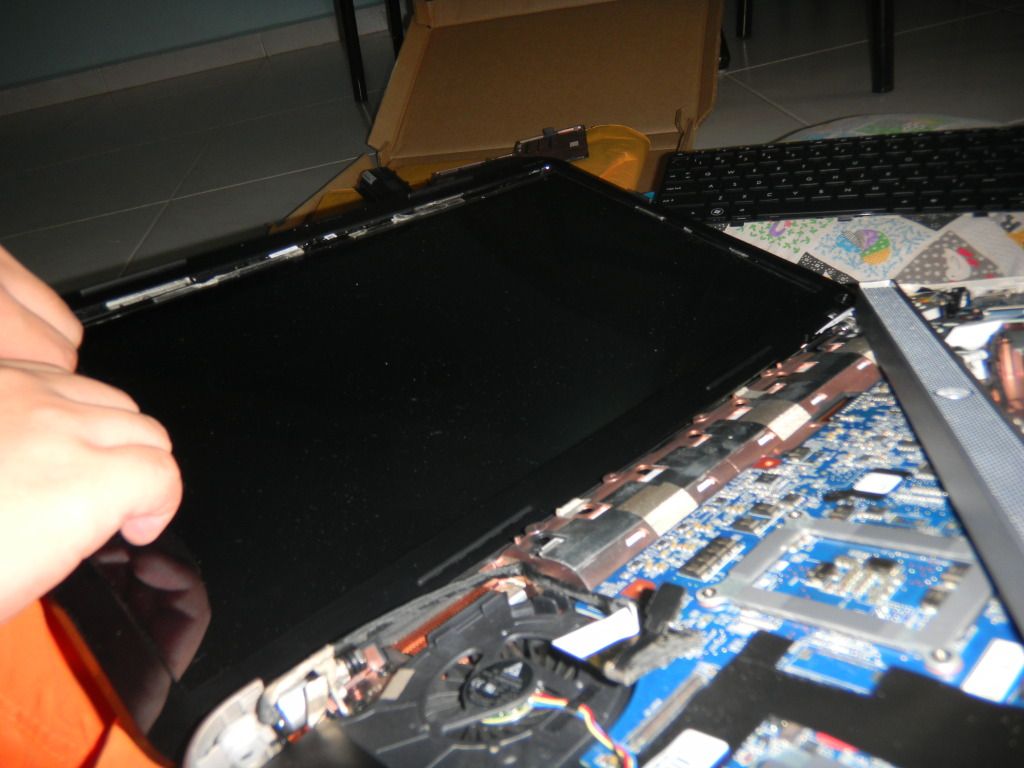

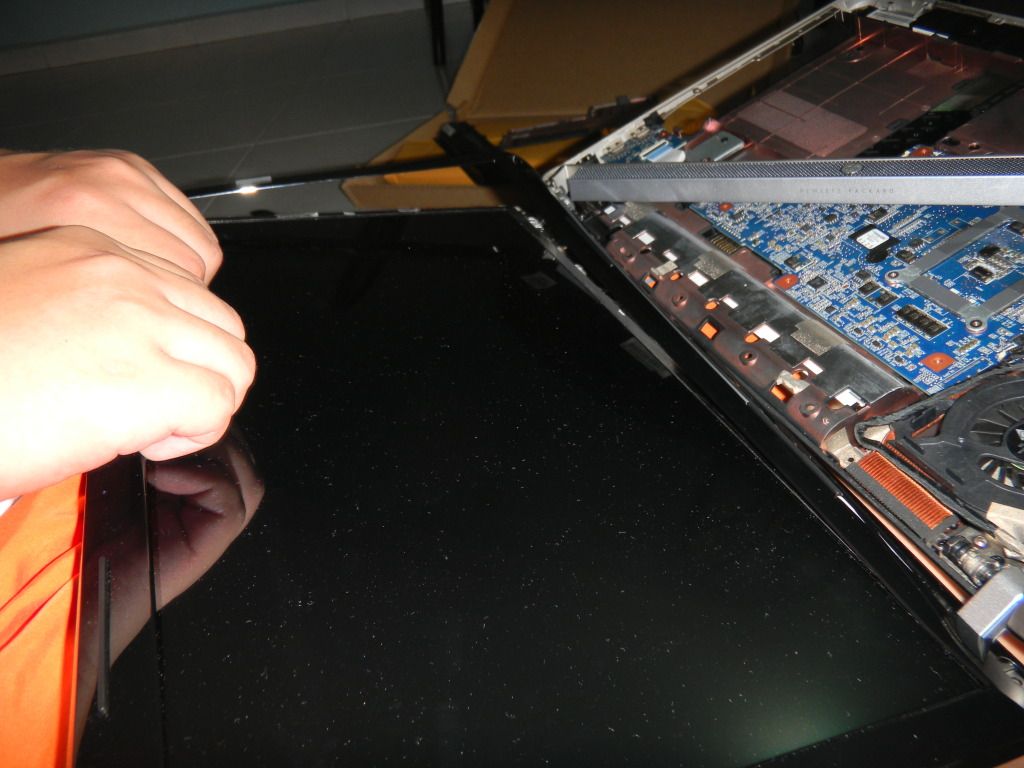

Tilt the panel forward as shown. Unscrew 8 tiny screws, 4 from the left of the panel and another 4 from the right side.

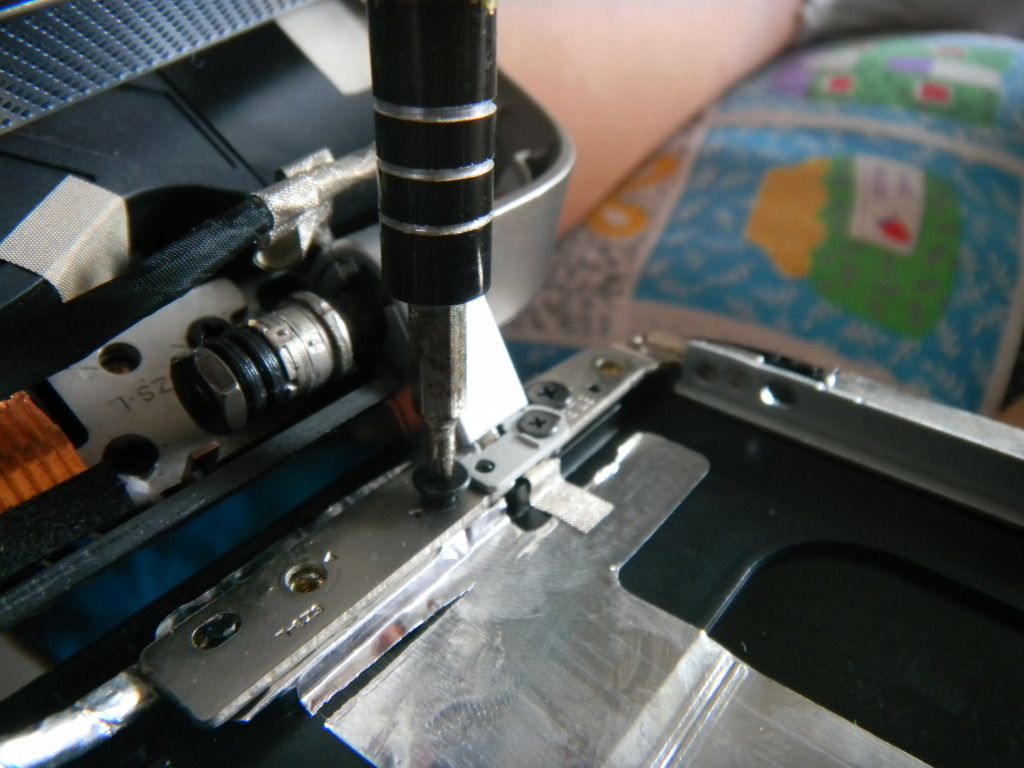

Then remove all the screws found on the left hinge.

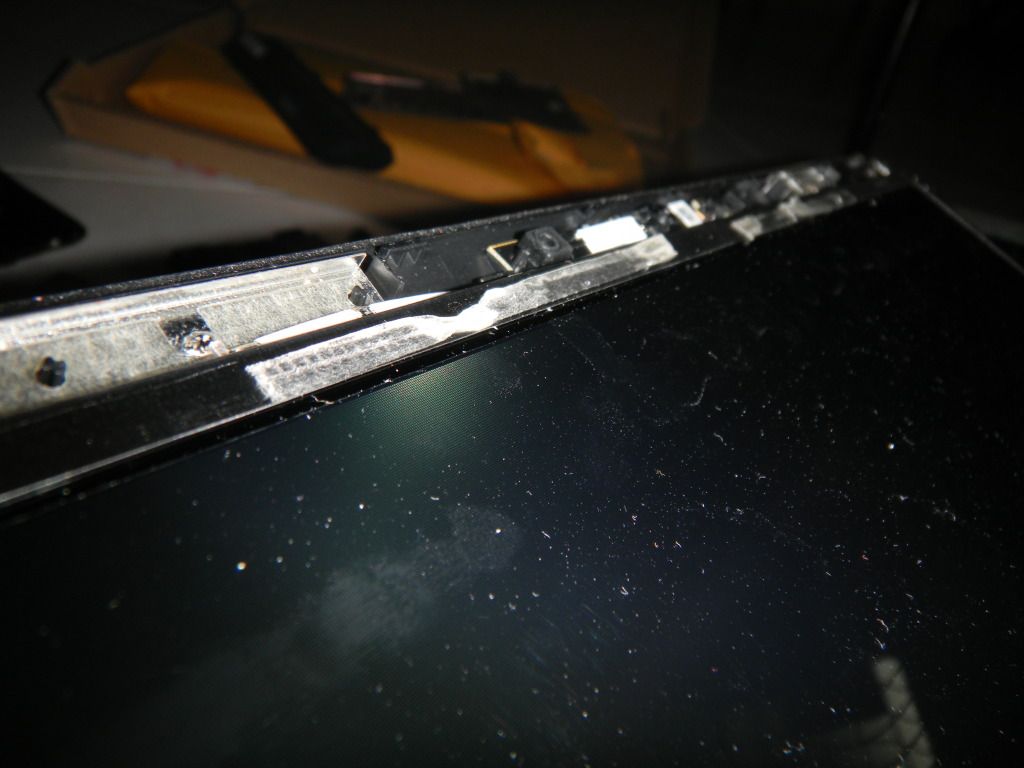

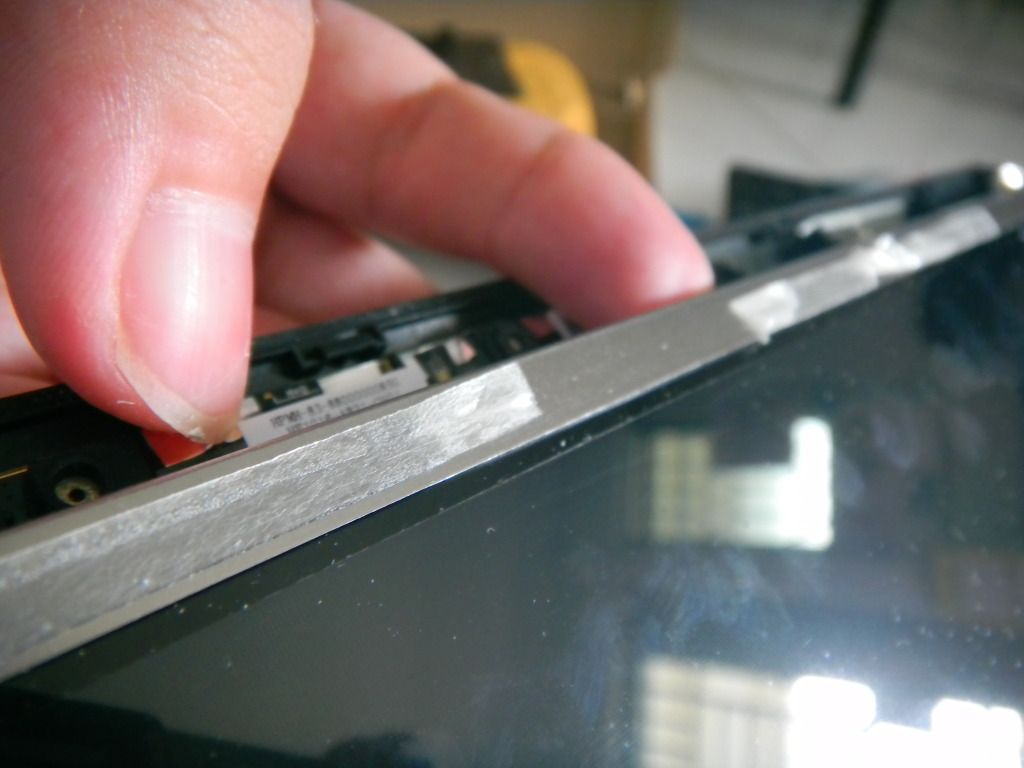

Remove the old screen cable from the connector at the back of the panel and the webcam. There is double sided tape applied, so be cautious.

Then put in the new screen cable and the new 1080p panel. Reverse the steps to reassemble the notebook.



The colours are really vibrant on the AUO.
