    HP DV5 LCD Screen WSXGA+ Part No. 484363-001 - LCD Model/Make

    Discussion in 'HP' started by AlterEgo, Feb 16, 2020.

  1. AlterEgo

    AlterEgo Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    As per the subject, can anyone tell me the exact make/model/manufacurer part number of the LCD panel used in HP DV5-1000 as per the specification mentioned in the subject.

    The HP part number is 484363-001 , but it doesnt mention the LCD Panel make/model.

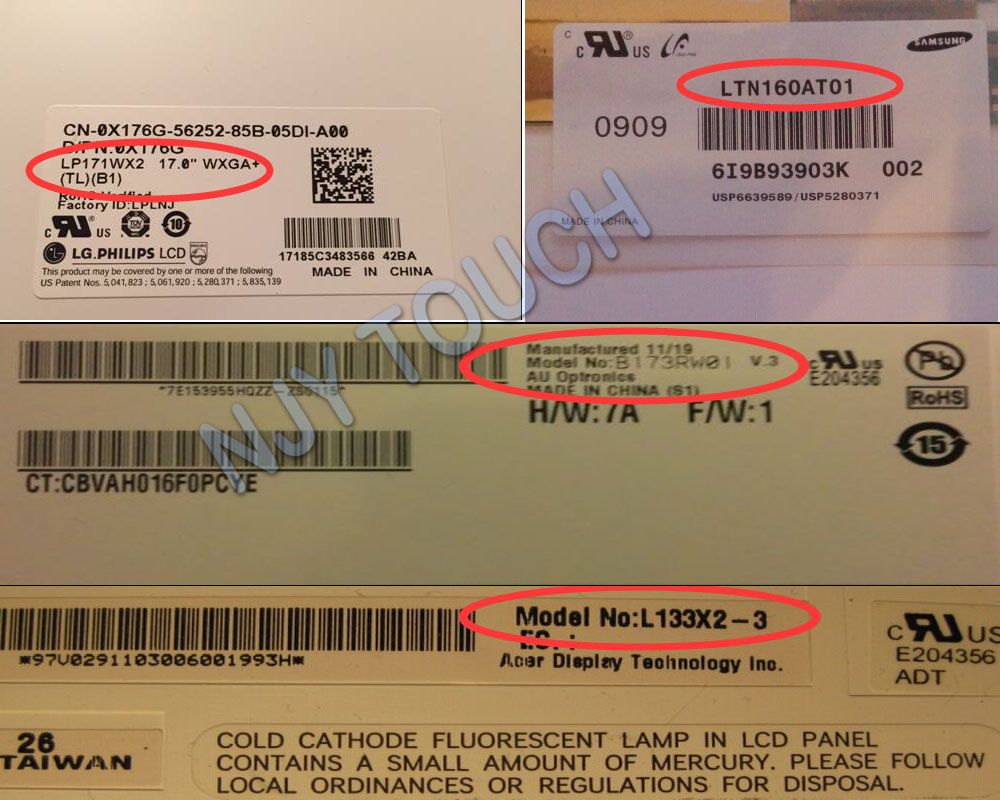

    I need to find/buy a compatible LCD controller board to re-purpose an old LCD Panel which I will be having in some days, and unfortunately I dont have the right expertise avaiable remotely to inform me about the needful information as shown in the below image:

    [​IMG]

    Appreciate your help and possible suggestion for finding a compatible LCD Controller board with HDMI input and matching power supply (I guess it is 12 V 4 Amp).

    Thanks.

    AlterEgo, Feb 16, 2020
    #1
  2. 2.0

    2.0 Former NBR Macro-Mod®

    Reputations:
    13,368
    Messages:
    7,741
    Likes Received:
    1,022
    Trophy Points:
    331
    When I replaced the WSXGA+ screens, I used LP154WE2 (TL)(A6) & LP154WE2 (TL)(A7).
    But they also need a compatible cable:

    GLEDDC4003AWD054
    GLEDDC5003AWD477

    Last edited: Feb 16, 2020
    2.0, Feb 16, 2020
    #2
  3. AlterEgo

    AlterEgo Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    So I was able to extract the LCD out of its frame

    The part number was LTN154MT02 made by Samsung.

    For anyone else looking for the same information.

    AlterEgo, Feb 19, 2020
    #3
