    HP Pavillion dv6 6121tx gaming tips, hp dv6 6000 series, general gaming tips

    Discussion in 'HP' started by silverskies, Jun 29, 2011.

  1. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Got the HP Pavillion dv6 6121tx laptop a few days back. It has the Radeon 6770m graphics card.

    Here are some tips which helped me improve gaming performance to a great extent:-

    1. update the graphics card driver through Windows Update
    2. While gaming keep the laptop on a flat surface (using a cooling pad from a reputed manufacturer is even better)
    3. update directx
    4. switch the wireless and touchpad off during gaming, use external mouse, connect the USB mouse to the 3.0 port on the left side of the laptop
    5. use an antivirus product which consumes less resources, i use kaspersky
    6. right click on desktop,choose switchable graphics,in the switchable graphics window, click browse and choose the .exe of the game and select High performance for that game
    7. always use the high performance power scheme while gaming, and AC power
    8. use HP coolsense to lower temperature of the laptop after u finish the game session
    9. format (burn recovery disks before format) the laptop to get rid of unnecessary software provided by the manufacturer, use the windows 7 key given on a sticker at the back of the laptop after reinstall
    10. after format install all latest drivers, perform disk cleanup and defragmentation


    HP DV6-6121TX | i7-2630QM | 4GB RAM | AMD Radeon 6770m 2GB DDR5

    silverskies, Jun 29, 2011
    #1
  2. KaiGaming

    KaiGaming Notebook Guru

    Reputations:
    10
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    15

    i don't have the "browse" in the switch graphics option -__-

    KaiGaming, Jun 29, 2011
    #2
  3. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5

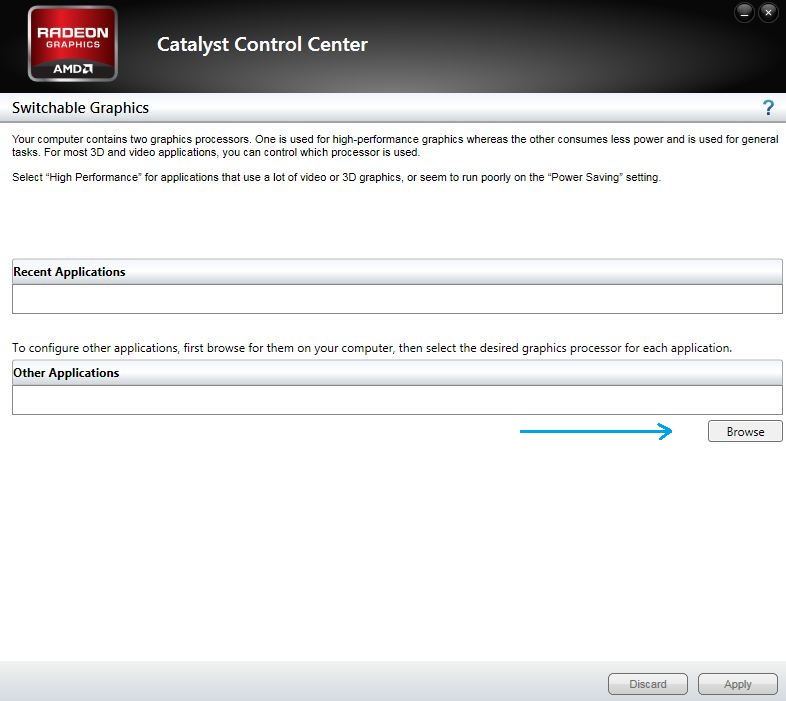

    i have attached a image to this post showing the 'browse' option in the catalyst control center





    HP DV6-6121TX | i7-2630QM | 4GB RAM | AMD Radeon 6770m 2GB DDR5


    Attached Files:

    silverskies, Jun 29, 2011
    #3
  4. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5

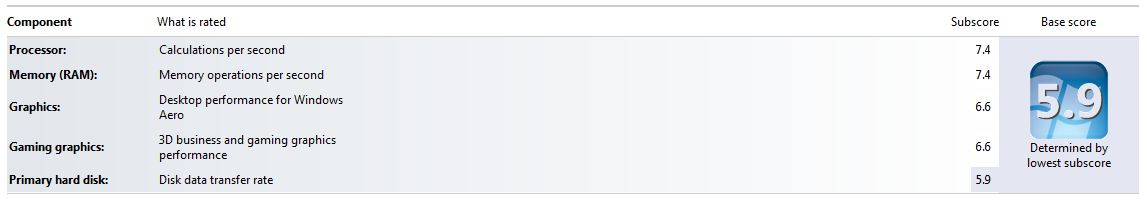

    I have attached a image showing the Windows Experience Index (WEI) of my HP 6121tx




    HP DV6-6121TX | i7-2630QM | 4GB RAM | AMD Radeon 6770m 2GB DDR5


    Attached Files:

    silverskies, Jun 29, 2011
    #4
  5. thom612

    thom612 Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    On mine the 3.0 ports are on the left for some reason. I think they may have installed them backwards...

    thom612, Jun 29, 2011
    #5
  6. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    my bad,they are on the left side on mine too




    HP DV6-6121TX | i7-2630QM | 4GB RAM | AMD Radeon 6770m 2GB DDR5

    silverskies, Jun 29, 2011
    #6
  7. NeRo45

    NeRo45 Notebook Evangelist

    Reputations:
    31
    Messages:
    510
    Likes Received:
    0
    Trophy Points:
    30
    I wonder if this would work with programs like Adobe and CAD?

    NeRo45, Jun 29, 2011
    #7
  8. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    i think it would certainly work, u can try, pls report if the above steps improved performance in adobe and/or CAD
    i would have checked myself but i never use CAD/adobe photoshop


    HP DV6-6121TX | i7-2630QM | 4GB RAM | AMD Radeon 6770m 2GB DDR5

    silverskies, Jun 30, 2011
    #8
  9. NeRo45

    NeRo45 Notebook Evangelist

    Reputations:
    31
    Messages:
    510
    Likes Received:
    0
    Trophy Points:
    30
    I would check but don't have the laptop. I'm in the process of ordering one

    NeRo45, Jun 30, 2011
    #9
  10. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5

    if u haven't ordered, i suggest you research before you place an order, there are many threads on this forum about using hp dv series laptops for running adobe, adobe uses openGL, just google "openGL 6770m"


    HP DV6-6121TX | i7-2630QM | 4GB RAM | AMD Radeon 6770m 2GB DDR5

    silverskies, Jun 30, 2011
    #10
  11. NeRo45

    NeRo45 Notebook Evangelist

    Reputations:
    31
    Messages:
    510
    Likes Received:
    0
    Trophy Points:
    30
    Exactly why I haven't pulled the trigger. But I'm hearing that not only hp is having this problem so a fix is a must and should be coming out...... Hopefully

    NeRo45, Jun 30, 2011
    #11
  12. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    its advisable to wait, because the HP dv6/7 series laptops with the 6770m are far better than laptops from other manufacturers in the same price range

    HP DV6-6121TX | i7-2630QM | 4GB RAM | AMD Radeon 6770m 2GB DDR5

    silverskies, Jun 30, 2011
    #12
  13. NeRo45

    NeRo45 Notebook Evangelist

    Reputations:
    31
    Messages:
    510
    Likes Received:
    0
    Trophy Points:
    30
    Yea my only problem is I leave for china on July 25 and wanted to get it prior to departing

    NeRo45, Jun 30, 2011
    #13
  14. jiggawhat

    jiggawhat Notebook Evangelist

    Reputations:
    46
    Messages:
    328
    Likes Received:
    0
    Trophy Points:
    30
    Dont get the 2 GB video ram you do not need it. Dont get the 2 GB video ram you do not need it. Dont get the 2 GB video ram you do not need it. Dont get the 2 GB video ram you do not need it. Dont get the 2 GB video ram you do not need it. Dont get the 2 GB video ram you do not need it. Dont get the 2 GB video ram you do not need it. Dont get the 2 GB video ram you do not need it.

    jiggawhat, Jun 30, 2011
    #14
  15. NeRo45

    NeRo45 Notebook Evangelist

    Reputations:
    31
    Messages:
    510
    Likes Received:
    0
    Trophy Points:
    30
    Lol well aware of that haha. I'm more concerned with this switching issue since I'll be doing cad adobe an 3d work as well as gaming and I don't want a bulky thing or a business line. Since I currently have the t61p

    NeRo45, Jun 30, 2011
    #15
  16. R3d

    R3d Notebook Virtuoso

    Reputations:
    1,515
    Messages:
    2,382
    Likes Received:
    60
    Trophy Points:
    66
    Has anybody figured out how to OC the dv6 6100 series?

    R3d, Jun 30, 2011
    #16
  17. devilsalive

    devilsalive Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    heyy how to run games in fullscreen without those black side borders in games having non-native /lower resolutions ??

    devilsalive, Jun 30, 2011
    #17
  18. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    you can lower the screen resolution, say to 800*600, that will get rid of the borders

    silverskies, Jun 30, 2011
    #18
  19. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    there are many threads on this forum that can provide u directions, i had read some persons post where he had successfully overclocked 6770m, dont remember where, he got only 10-15% improvement by overclocking, i dont think it is worth the trouble if u are getting only 15% improvement

    silverskies, Jun 30, 2011
    #19
  20. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    amd is going to release a driver update for 6770m sometime in July

    silverskies, Jun 30, 2011
    #20
  21. R3d

    R3d Notebook Virtuoso

    Reputations:
    1,515
    Messages:
    2,382
    Likes Received:
    60
    Trophy Points:
    66
    I did a couple google searches and I haven't been able to find anybody who was to successfully OC.

    Are you sure you're not talking about the dv6-6000 (i.e. not dv6-6100 with the muxless switchable graphics)?

    R3d, Jun 30, 2011
    #21
  22. educated_fool

    educated_fool Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    does DV6 6121TX comes with LightScribe ? Coz when I try to Burn Lightscribe CD its says NO Lightscribe Drive FOUND
    any idea?

    LightScribe Software for Windoows :
    LightScribe - Downloads - Windows

    educated_fool, Jul 9, 2011
    #22
  23. educated_fool

    educated_fool Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    After few mins of digging Google I found the HP PAVILION dv6-6121TX QSPECS.pdf (i've uploaded it to mediafire hope it helps someone who is planning to buy DV6 6121TX)
    HP PAVILION dv6-6121TX QSPECS.pdf

    It does NOT comes with LightScribe Drive ;P (in India)

    educated_fool, Jul 9, 2011
    #23
  24. ghost305

    ghost305 Notebook Consultant

    Reputations:
    0
    Messages:
    132
    Likes Received:
    0
    Trophy Points:
    30
    how do u know??

    ghost305, Jul 9, 2011
    #24
  25. kurosawa79

    kurosawa79 Notebook Consultant

    Reputations:
    25
    Messages:
    191
    Likes Received:
    0
    Trophy Points:
    30
    Well hes technically correct. They will release the 11.7 cats in July. Im using the pre release version and it doesnt fix the SG issue.

    kurosawa79, Jul 9, 2011
    #25
  26. ronferri

    ronferri Notebook Evangelist

    Reputations:
    5
    Messages:
    369
    Likes Received:
    49
    Trophy Points:
    41
    My graphics and gamings ratings are 6.9

    I got the 1GB 6770M card and 8GB of RAM, same processor as yours.
    Video Driver: 8.83.6.2 downloaded from HP's drivers section.

    ronferri, Jul 9, 2011
    #26
  27. xAcid9

    xAcid9 Notebook Deity

    Reputations:
    85
    Messages:
    745
    Likes Received:
    0
    Trophy Points:
    30
    Download AtiGPUScalingFix-Win7.zip here. Run it and select "Scale image to full panel size".

    xAcid9, Jul 9, 2011
    #27
  28. vinoth_v

    vinoth_v Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi All,

    I bought 6121tx today but my index scores are graphics - 5.9, gaming graphics 6.6 . . . ..

    And in dxdiag -> display tab it dint show 6770m gcard

    but in Device manager -> Display adapter there are 2 adapters
    1)Intel hd graphics
    2)Radeon hd 6770m

    Does my laptop has 2gb graphics card.

    If it is how can i use it.

    So that i can it in my experience index . . .

    I cannot do any thing in switchable graphics to switch it permanents. . ..

    Iam using high performance in power options

    vinoth_v, Jul 12, 2011
    #28
  29. cyanide911

    cyanide911 Notebook Consultant

    Reputations:
    0
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    "8. use HP coolsense to lower temperature of the laptop after u finish the game session"

    How am I supposed to do this??

    cyanide911, Jul 12, 2011
    #29
  30. nitinvertigo

    nitinvertigo Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    is the 6.6 rating for ati hd6770m correct? coz i got an hp laptop wid ati hd 4650m and i have d same rating

    nitinvertigo, Sep 7, 2011
    #30
  31. nitinvertigo

    nitinvertigo Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    is the 6.6 rating for ati hd6770m correct? coz i got an hp laptop wid ati hd 4650m and i have d same rating

    nitinvertigo, Sep 7, 2011
    #31
  32. vit.viki

    vit.viki Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I bought my machine 2 weeks back and now I am having problem with the keyboard. The UP arrow key and F key have become rigid. I don't know why I have to press them real hard to use it... :p...
    plus I think when I did dxdiag when I purchased my machine it showed approximate total memory more(As far as I remember) but now it shows 768 only. Is there any problem?
    Nowhere except the device manager I am able to see my graphic card name why is it so??? :confused:

    vit.viki, Oct 2, 2011
    #32
  33. bitlebron

    bitlebron Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    jus recover the system it'll b fine..

    bitlebron, Oct 9, 2011
    #33
  34. bhaskar12del

    bhaskar12del Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I formatted and re installed all the required drivers, but the windows experience index for Graphics: Desktop performance is being shown as 5.9 unlike 6.6 in the image u posted. its the lowest along with HDD transfer rate of 5.9.
    Anything i might have missed out installing that caused this.?
    i7, 4gb ram, 2gb radeon 6770M graphics.


    bhaskar12del, Oct 15, 2011
    #34
  35. bhaskar12del

    bhaskar12del Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I formatted and re installed all the required drivers, but the windows experience index for Graphics: Desktop performance is being shown as 5.9 unlike 6.6 in the image u posted. its the lowest along with HDD transfer rate of 5.9.
    Anything i might have missed out installing that caused this.?
    i7, 4gb ram, 2gb radeon 6770M graphics.


    bhaskar12del, Oct 15, 2011
    #35
  36. xAcid9

    xAcid9 Notebook Deity

    Reputations:
    85
    Messages:
    745
    Likes Received:
    0
    Trophy Points:
    30
    Your laptop model is 60xx or 61xx? If the latter, probably u on dynamic switching and your WEI graphic scores are from Intel HD 3000 not AMD HD6770M.

    xAcid9, Oct 16, 2011
    #36
  37. kiranriscool

    kiranriscool Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I wasted 2 days trying to get RAGE to work on my 6121tx with ATI 6770m. Here are the foolproof steps. These steps might solve the issues with OPENGL related issues too.

    1) Update bios by downloading and running sp54024.exe from HP drivers page. This BIOS update adds support for manually selecting the a graphics card.
    Reboot.
    HP Notebook System BIOS Update (Intel Processors) HP Pavilion dv6-6121tx Entertainment Notebook PC - HP Customer Care (United States - English)

    2) While booting go into BIOS options (Esc at boot, then F10) and select FIXED graphic card switching instead of DYNAMIC. Save and reboot.
    2) Uninstall all existing ATI drivers. reboot.
    3) Install the latest graphics driver from HP site. sp54462.exe [1/1, 275.67M]
    AMD High-Definition Graphics Driver HP Pavilion dv6-6121tx Entertainment Notebook PC - HP Customer Care (United States - English)
    reboot.
    4) Install the latest drivers with support for RAGE.
    http://support.amd.com/us/kbarticles/Pages/GPU124AMDCat1110PreDriverV3.aspx
    reboot.
    5) Now in switchable graphics option, you can specify which card (ATI or Intel) is to be used. Make sure ATI is selected.
    5) Enjoy RAGE! :D

    kiranriscool, Oct 21, 2011
    #37
  38. MT123

    MT123 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Should this be stickied for future reference?
    Buump.

    MT123, Nov 13, 2011
    #38
  39. silverskies

    silverskies Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    thx for that

    silverskies, Dec 22, 2011
    #39
