Pictures can be refreshed (seen) if you highlight the guide with your cursor, copy/paste it into MS Word. I have MS Word 2007. Somehow, it refreshes the links and all of the pictures appear in MS Word.

Print it out and use it to take apart your DV2000 laptop.

I printed the pictures and would lay the screws on the spot in the pic where I took out the screw on the laptop. Occasionally, I'll have extra screws leftover when reassembling a laptop. This helped me place them all back with no leftovers or putting the wrong type of screw in the wrong threaded hole.

PokerJoe, Jan 15, 2010

#51

FunnyX Notebook Consultant

Reputations:: 207

Messages:: 184

Likes Received:: 0

Trophy Points:: 30

Pictures are back up. Sorry About that down time. I'll try and keep better track of it.

FunnyX, Jan 31, 2010

#52

selfstarter Newbie

Reputations:: 0

Messages:: 2

Likes Received:: 0

Trophy Points:: 5

I followed this and it was right on the money.

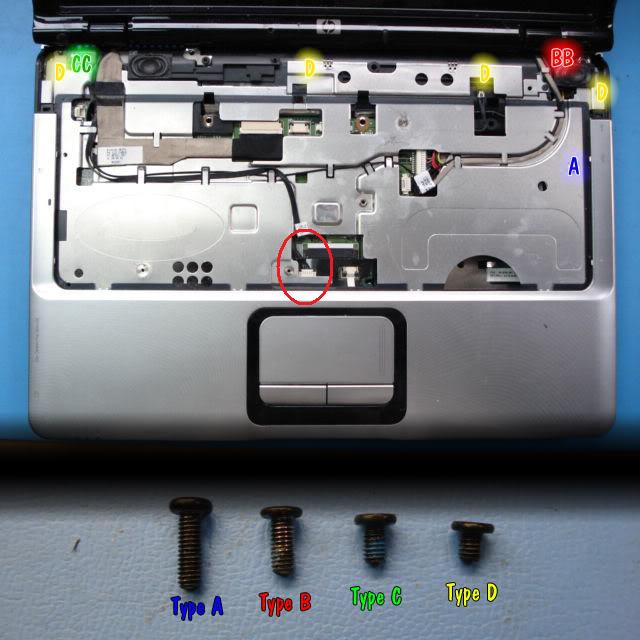

Of course everything doesn't always go perferctly. I put everything back together and now find that when I turn on the laptop I get a "white" screen. Everything (by the sounds) is running. I made an error when I went to unplug some wiring. Can you tell me what it is for. I have attached a pic from the previous thread (circled in red what I am asking about. I have an HP dv2000 (2310us).

Attached Files:

selfstarter, Feb 15, 2010

#53

brianstretch Notebook Virtuoso

Reputations:: 441

Messages:: 3,667

Likes Received:: 0

Trophy Points:: 105

Microphone, I think. That or webcam. Nothing that would cause your white screen problem. Try plugging in an external monitor and see if you can toggle that on (Fn-F4)?

brianstretch, Feb 15, 2010

#54

flipfire Moderately Boss

Reputations:: 6,156

Messages:: 11,214

Likes Received:: 68

Trophy Points:: 466

Yup thats microphone & webcam cable. Try reinserting the LCD cable

flipfire, Feb 15, 2010

#55

selfstarter Newbie

Reputations:: 0

Messages:: 2

Likes Received:: 0

Trophy Points:: 5

Hooked up to tv (don't have another monotor), and all 'looks' okay. Still have white screen on laptop. Also have lost my wifi - although indications are that it is running (wifi light is on). Any ideas?

Will try reinserting LCD cable.

Thank you...

selfstarter, Feb 15, 2010

#56

bas1 Newbie

Reputations:: 0

Messages:: 3

Likes Received:: 0

Trophy Points:: 5

[hi thanx for the instruction but i have done all the stes but after fixing my laptop back, the screen can´t even come on and i don have no sound either. totally confused. what do you thnk mght be the problem

bas1, Feb 16, 2010

#57

brianstretch Notebook Virtuoso

Reputations:: 441

Messages:: 3,667

Likes Received:: 0

Trophy Points:: 105

Could be the NVIDIA chipset deciding to go bad, assuming you have one. WiFi disappearing is one of the symptoms. Usually both the internal and external screens get taken out but there are all sorts of variations. One of the numerous threads on how to attempt to fix this:
http://forum.notebookreview.com/showpost.php?p=4792475&postcount=15
Read the thread from that point forward. You could still just have a cabling problem. Check the WiFi card cables and double-check that the WiFi card shows up in Device Manager.

brianstretch, Feb 16, 2010

#58

bas1 Newbie

Reputations:: 0

Messages:: 3

Likes Received:: 0

Trophy Points:: 5

hi guys after doing all the steps i fixed everything back but my dv2000 cant even come on it comes on and the windows will not even start and goes off again and the screen too get lost now

bas1, Feb 19, 2010

#59

bas1 Newbie

Reputations:: 0

Messages:: 3

Likes Received:: 0

Trophy Points:: 5

hi guys pls help me now it just make bip 3 or more with blackscreen help help

bas1, Feb 19, 2010

#60

s7beck Newbie

Reputations:: 0

Messages:: 4

Likes Received:: 0

Trophy Points:: 5

Nice quide, thank you. Having done it just now, I find that the cooling fan is still on constantly, should this be the case? I'm sure it never used to be on all of the time...

s7beck, Feb 27, 2010

#61

LTA Newbie

Reputations:: 0

Messages:: 1

Likes Received:: 0

Trophy Points:: 5

Hello all,

I have followed the threads in this topic.
I have a laptop Pavilion DV2915nr with Windows Vista.
My problem is that the area of thed-disk is very hot and the cooler has no sound sometimes and sometimes it works in shots.

I have never cleaned my laptop, it has two years old and I would like to know if there is any risk if I start to open all the stuff described here in the first thread.

Are all the pictures valid for this model DV2915nr?

do you think that if I use only a compressed air I will solve the problem?

What program do you recommend me to monitor all the temperatures inside, so that the program does not mismatch with the operating system?

Thank you very much for your help!

LTA, Aug 10, 2010

#62

amlbuton Notebook Enthusiast

Reputations:: 0

Messages:: 39

Likes Received:: 0

Trophy Points:: 15

thanks for the tips... will try later on my DV2711tx

amlbuton, Sep 17, 2010

#63

purjuju Newbie

Reputations:: 0

Messages:: 1

Likes Received:: 0

Trophy Points:: 5

Hello all !

I've disassembled my DV2000 and re-assembled but it doesn't start.

I removed the RAM and it does 3 BIPS -> normal
I re-plug the RAM and it switch on, I can hear the fan and the HDD running but the screen stays BLACK and NO BIP.

Could you help me please??

Thank you very much

purjuju, Oct 12, 2010

#64

MancoCap Newbie

Reputations:: 0

Messages:: 1

Likes Received:: 0

Trophy Points:: 5

I'd really appreciate a little input from those who know this process--

I've followed these excellent instructions (or at least I thought I had) as a way to replace my main board (nVidia graphics failure).

They system now powers up. Finds memory. Has an image on the screen.

It can't find the hard drive.

I'm willing to assume that I've plugged something in wrong, or failed to reconnect something important. Any thoughts if this is an accurate assessment and, if so, where should I be looking to correct this problem?

Or have I probably done something else that has fried my disk?

Also, is my Hard Disk likely dead now (it gets very warm) or is there a chance that finding/correcting a connection problem, it will work again?

thanks.

MancoCap, Jan 1, 2011

#65

stevenk1000oaks Newbie

Reputations:: 0

Messages:: 1

Likes Received:: 0

Trophy Points:: 5

FunnyX said: ↑

** NOTICE: If you do not feel confident about doing this fix yourself, thats ok, being worried about opening a notebook is perfectly normal. You can always find someone who is capable of doing it or if your notebook is still under warranty,(which it should be) you can always send it in to be serviced. **

Best place to work on a PCB or electrical device is; Kitchen(tiled) or bathroom. Avoid carpet, and to be extra safe take off your shoes and socks...

Ok, now we'll start;

Step 1.

a) Remove all power from the notebook.(never a good idea to work on a computer thats on ~) This includes; Ac Adapter, Battery, and any USB device.

b) Start unscrewing all the labeled screws and arrange them on your post it note groups(use the image included).

Step 2.

a) Now turn over the notebook, open the lid (careful, the keyboard may be loose inside and can fall out partially), The power panel and keyboard will now be loose and are ready to be removed.

b) Take your soft durable piece of plastic (your listerine pack), locate the left side gap between the bottom case and power panel, and pry the corner closest. It should come up pretty easily, if it does not make sure you got all the screws you needed to from the bottom of the notebook.

c) Once you pop up that side you should be able to get a grip of the keyboard, pull the keyboard towards you, you don't have to disconnect it, once its out of the way you should be able to get your fingers under the power panel, you'll hear some clicking... but don't worry thats normal.

d) Now the power panel should only be connected by 2 connectors. The power switch and the media touchpad. First unplug the power switch, BE VERY CAREFUL, try not to pull on it with the cord... the power buttons are very fragile, try and get your 2 index fingers to pull the top corners. It can be hard but it will come out, try wiggling it.

e) All thats left is the media touch pad. using your 2 thumbs and/or index fingers pull up on the either side of the input, should be fairly easy to get open. Then remove the power panel.

Step 3.

a) Now that you have removed all the top case attachments, we're going to remove the screws holding the top case down, Use the screw map to remove the; D and A screws.

b) Now that you have removed all the D and A screws, we will remove the C and B screws. A couple things before you do that though, go through and unhook all the wire running through the top casing. Once you have freed all those wire from the top casing, pull your LCD Assembly up to a 90 degree angle(straight up). I will explain in the next section.

c) Now while holding the LCD Assembly, remove the first C screw and the first B screw. After that, remove the second C and the second B screw, we do this as a safty precaution in case while something happens after you take out the screw(s). Now all the screws should be out of the top case, and the LCD Assembly should be loose, just simply pull your LCD Assembly straight up. It should come off without issue.

d) To remove the top casing with either you finger nails or a your plastic tool, pry apart the top/bottom casing on either side and pull up, make sure the touch pad is disconnected. The entire casing should come straight up and off of your unit.

Step 4.

a) Now you should be staring at the guts of your notebook, looks pretty intimidating doesn't it? Its really not so you don't have to worry. Start by unplugging anything that is attached to the bottom and right sides of the logic board(motherboard). Using the Logic map below, Unscrew anything inside the Blue boxes, and Unplug anything in the Green Boxes.

b) Everything should be unplugged, clear of the logic board. Using your right hand maneuver it under the right side of the logic. Gently pull up on the right side as shown in the picture below. It should come up fairly easily, If you find it hard to pull up then wiggle it slowly back and forth.

c) Now continue pulling the right side up until you feel little to no resistance from the bottom case. Then slowly pull the logic out and to the right, as shown in the picture below.

Step 5.

a) Now that you have the logic out, place it on a static free surface, i.e. rubber(best), wood, cement, etc.... No Cloth or Leather like material.

b) Flip your logic over so you see your 2 sticks of ram as well as your heatsink and fan. Unscrew the 4 screws on the heatsink in order(each screw has a number you can go up or down, it doesn't matter). Once unscrewed the cross beam on the bottom of the logic will come off, all thats left now is to unplug the fan on the opposite side of the ram and heatsink.

c) Now that you have your heatsink/fan assembly off, unscrew the 3 screws on the top of the fan, and the cover will flip forward allowing you to clean it thoroughly.

** Cleaning tips: You can use virtually anything you to clean it, except liquids... liquids may has erosion on the fans motor or the heatsink itself. Recommended: toothbrush(an old one you aren't planning on using again...), compressed air, lint brush, etc. **

ADDITIONAL NOTES:

When putting heatsink back on your logic 3 things you need to make sure of;

** Make sure the Processor is in the locked position.

** Make sure the connector from the fan is clear, and isn't wedged between the heatsink/fan assem. and the logic.

** Place Crossbeam on bottom of logic before attempting to screw the heatsink/fan assembly back on. Below are a couple pictures to better explain.

If you have any questions, corrections and/or comments, Please feel free to post.

Hope this helps.... good luck.

Click to expand...

Hello, after follow your instruction and put back and no screen. What should I check ? your help would be good.
