    Hp pavilion dv5 1004nr display connector

    Discussion in 'HP' started by bojankoce, Oct 14, 2011.

  1. bojankoce

    bojankoce Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hello everyone,

    I have recently damaged my Hp pavilion dv5 1004nr display connector during one "repair session". One pin of the 40-pin male display connector which is soldered on the laptop board is broken.
    Is there anyone who could tell me the type and the label of the mentioned male display connector so I could buy it myself and replace it? Or even the place where I could buy it ?

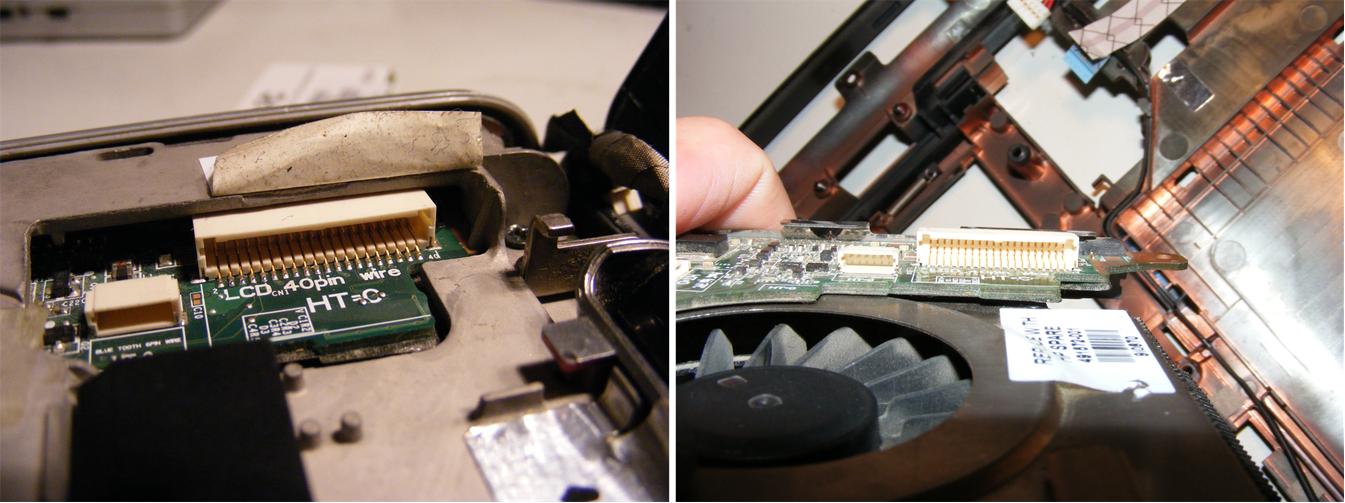

    Please find attached some pictures of the connector.
    I am aware that there is a big chance to screw up during the replacement procedure but it is worthy to try !

    Thank you very much guys for your time and effort to help me.

    Regards,
    Bojan


    Attached Files:

    bojankoce, Oct 14, 2011
    #1
