    Memory upgrade on nx8220

    Discussion in 'HP' started by Drmr1, Dec 12, 2008.

  1. Drmr1

    Drmr1 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hi,
    I would like to upgrade RAM from 1GB to 2GB, but I am not sure if my laptop uses normal memory, or it is something special produced only for HP? I've almost bought Kingstons KVR667D2S5/1G (unfortunately I can't post links yet). But then I searched a little on Kingston web-page and saw that they suggest KTH-ZD8000A/1G. The thing that bothers me is that, in compatibility tab for KTH-ZD8000A/1G there are only HP laptops, so I thought that maybe they use something special.
    So is the only difference between these two modules only frequency?
    I have searched a little this forum and didn't find any information that would confirm that HP memory is not regular, but I would like to be 100% sure before buying it.

    Drmr1, Dec 12, 2008
    #1
  2. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    Hi Welcome to NBR

    The nx8220 only accepts DDR ram. DDR2 ram will not work nor even fit into the slot.

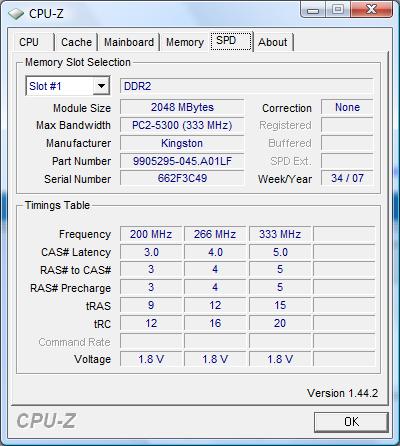

    Download CPU-z and post a screenshot of the Memory and SPD tabs.

    See attached photo.


    Attached Files:

    flipfire, Dec 13, 2008
    #2
  3. Drmr1

    Drmr1 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Flipfire I think you are wrong, it uses DDR2. I am using PC wizard, here:
    img367.imageshack.us/img367/7302/ramth4.jpg
    is screenshot of ram characteristics (again like for url, I can't post picture because of too few posts).
    But there doesn't exist any special ram modules for HP laptops? Any 200 pin SODIMM DDR2 module would fit?

    Drmr1, Dec 13, 2008
    #3
  4. Johnksss

    Johnksss .

    Reputations:
    11,536
    Messages:
    19,458
    Likes Received:
    12,833
    Trophy Points:
    931
    Johnksss, Dec 13, 2008
    #4
  5. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    ahh yes you are correct. I thought the nx8220 was like my compaq m2000.

    But anyway yes there is no special HP RAM. Nearly all ram these days run on the JEDEC standard.

    Yes any DDR2 200pin SO-dimm will fit.

    flipfire, Dec 13, 2008
