    Reducing Heat of Dv6000 Southbridge

    Discussion in 'HP' started by Tippey764, Aug 10, 2008.

  1. Tippey764

    Tippey764 Notebook Deity

    Reputations:
    377
    Messages:
    1,423
    Likes Received:
    0
    Trophy Points:
    55

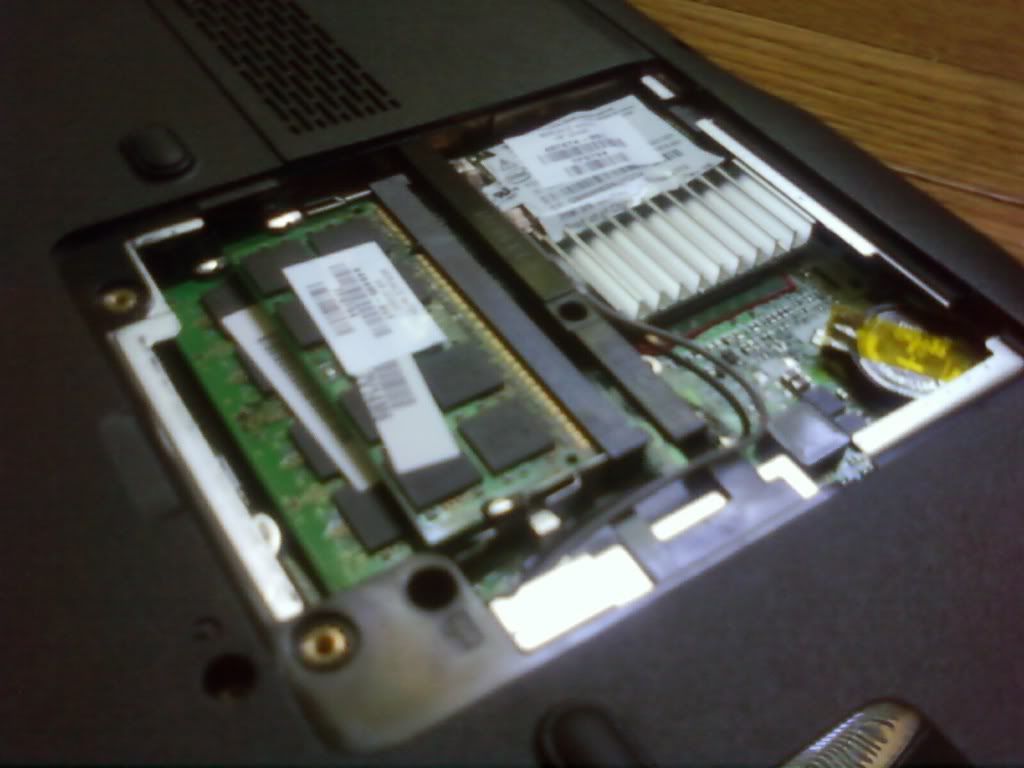

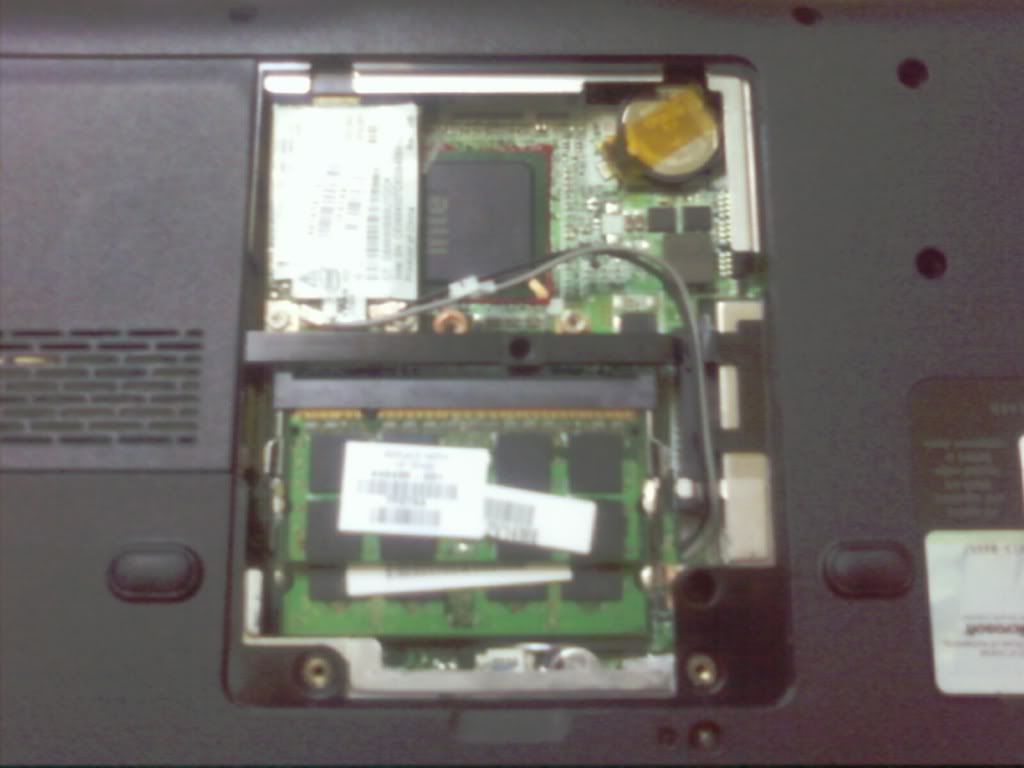

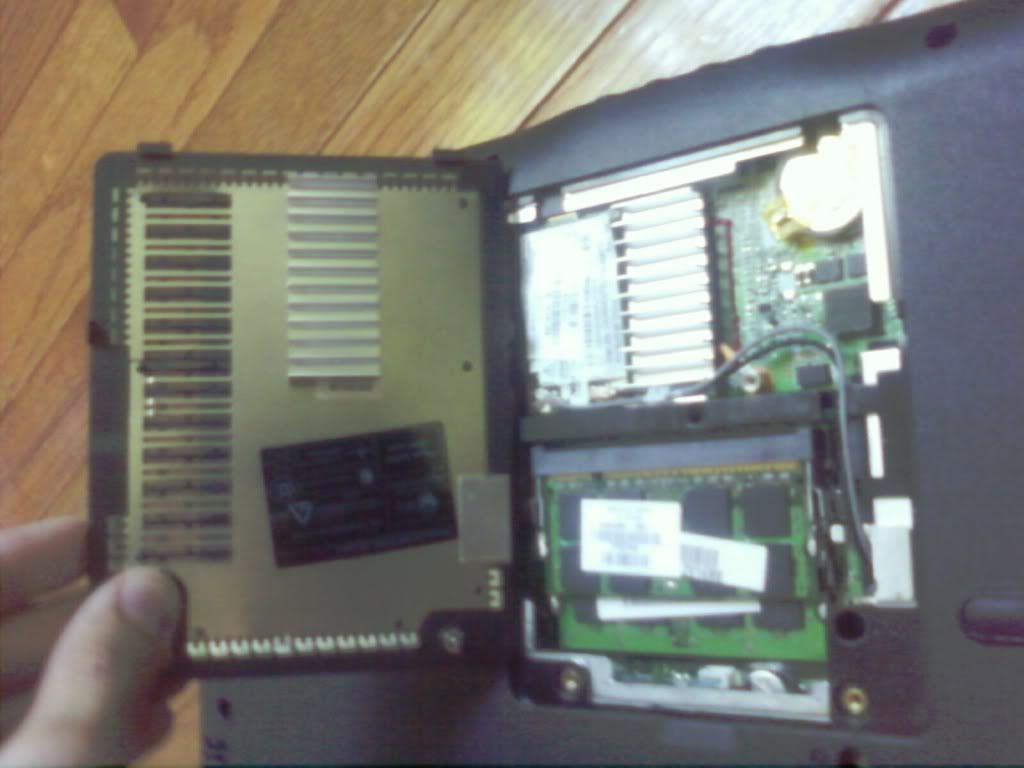

    I recently started playing world of warcraft again and i personally dont like to sit at a desk when on my laptop so i mainly use the touch pad all the time on the laptop. Well i started to notice that the touchpad heated up over time and at first i thought it was the ram due to it being directly under the touch pad but in fact the closer south bridge was to blame. So to reduce my heat i simply took a broken nvida pny 5200 ultra and removed the heatsinks from the bottom of it. I was suprised when they were the perfect size to fit where i wanted them to go. Im pretty sure i have dropped the temperature on the south bridge a good bit and the touch pad dosent get nearly as hot as it used too. [​IMG] [​IMG] [​IMG] The heatsink on the bottom of the door aligns with the one on the south bridge to dissipate the heat out of the bottom of the laptop vs though the touch pad.

    Tippey764, Aug 10, 2008
    #1
  2. Tippey764

    Tippey764 Notebook Deity

    Reputations:
    377
    Messages:
    1,423
    Likes Received:
    0
    Trophy Points:
    55
    What the hell how did the thread get so big?!?!?!?!?!?!?!

    Tippey764, Aug 10, 2008
    #2
  3. Infamous22

    Infamous22 Notebook Deity

    Reputations:
    189
    Messages:
    1,093
    Likes Received:
    0
    Trophy Points:
    55
    Maybe the big pictures did it?

    Infamous22, Aug 10, 2008
    #3
  4. ChicagoRob

    ChicagoRob Notebook Consultant

    Reputations:
    153
    Messages:
    132
    Likes Received:
    0
    Trophy Points:
    30
    Please resize your photos to something more user-friendly.

    ChicagoRob, Aug 10, 2008
    #4
  5. mrsnicks

    mrsnicks Notebook Enthusiast

    Reputations:
    0
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    5
    How are the heatsinks actually held on? Cpu paste or some other method?

    Patrick

    mrsnicks, Sep 12, 2008
    #5
