    Replace HDD from HP dv4 1242 tx

    Discussion in 'HP' started by ace_neo, May 4, 2009.

  1. ace_neo

    ace_neo Notebook Enthusiast

    Reputations:
    2
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    I have HP pavilion dv 4 1242 tx laptop. I have 320 GB HDD and want to replace with 500 GB HDD. I tried to open the HDD cover from back and I saw HDD in small caddy in which HDD was placed.

    I do not know how to procedure further as I am afraid i might damage the inbuilt HDD during removal.

    I need procedure on how to remove hdd from caddy with proper tips and precaution to be taken while doing so.

    Currently having Fujitsu HDD.Also suggest me which HDD brand to go for??

    P.S: I need HDD which is quiet and no clicking or any type of noise.


    Attached Files:

    ace_neo, May 4, 2009
    #1
  2. Lithus

    Lithus NBR Janitor

    Reputations:
    5,504
    Messages:
    9,788
    Likes Received:
    0
    Trophy Points:
    205
    Should be 4 screws, 2 on each side, remove those. Attach the caddy to the new HDD and that's about it.

    Lithus, May 4, 2009
    #2
  3. ace_neo

    ace_neo Notebook Enthusiast

    Reputations:
    2
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    I first need to remove caddy screw and then HDD screws??

    But caddy and HDD are fitted to connector then how to go about?

    ace_neo, May 4, 2009
    #3
  4. Lithus

    Lithus NBR Janitor

    Reputations:
    5,504
    Messages:
    9,788
    Likes Received:
    0
    Trophy Points:
    205
    ???

    Pull out the HDD from the system.
    Remove the caddy by removing the screws on the side.
    Insert new HDD into caddy.
    Insert HDD into system.

    Lithus, May 4, 2009
    #4
  5. ace_neo

    ace_neo Notebook Enthusiast

    Reputations:
    2
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15

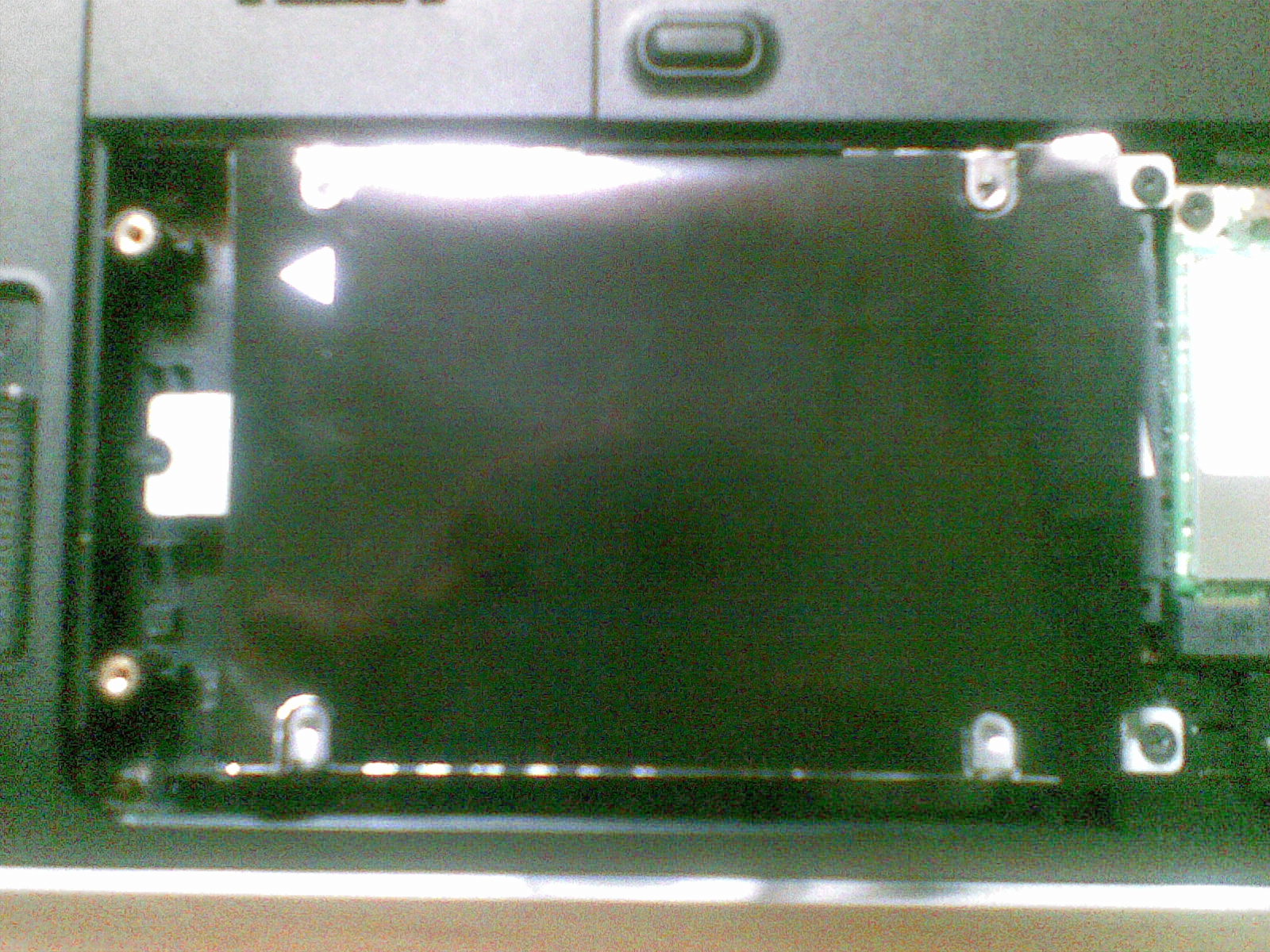

    I remove the screw of caddy but HDD is fixed to caddy and there is no space to remove side screw or i am missing the trick. I have upload the pic of said thing

    ace_neo, May 4, 2009
    #5
  6. Lithus

    Lithus NBR Janitor

    Reputations:
    5,504
    Messages:
    9,788
    Likes Received:
    0
    Trophy Points:
    205
    Pull the HDD out of the computer first.

    Lithus, May 4, 2009
    #6
  7. CyberVisions

    CyberVisions Martian Notebook Overlord

    Reputations:
    602
    Messages:
    815
    Likes Received:
    1
    Trophy Points:
    31
    Go here to the HP SERVICES MEDIA LIBRARY
    Go through the system selection windows (notebooks, Pavilions, Dv4, etc.) until you get to your system, then scroll down the list of options until you find the FRU Remove/Replace icon (Field Replaceable Units).

    Click on FRU, and it will open up the list for all FRU's for your system (pretty much everything). Click on Hard disk drive, and it will bring up not only the instructions/procedures for replacing it, it will show you a video demo on how to do it as well.

    You can also get the Product # off the label under your system, then enter it in the field at this link: HP SUPPORT & DRIVERS

    Select Support/Troubleshooting, the click on the double arrows - it will take you to the support page for your system configuration. Click on the Manuals link, then on the Maintenance and Service Manual link to get the PDF copy of your system service manual. It will also have the removal/replacement procedures.

    CyberVisions, May 4, 2009
    #7
  8. ace_neo

    ace_neo Notebook Enthusiast

    Reputations:
    2
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Thanks cybervision for your reply..Links proved me helpful.

    ace_neo, May 5, 2009
