    Upgrading my 2510P to 4GB Ram

    Discussion in 'HP' started by ctty, Oct 3, 2008.

  1. ctty

    ctty Newbie

    Reputations:
    9
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hi all, I decided to upgrade my 2510P to 4GB of ram. As you know/or may not know, the 2510P only has 1 SODIMM slot, so a 4GB SODIMM must be used. However, it has a GM965 chipset that doesn't seem to support 4GB Modules. After doing some research, I decided to take the risk so I ordered a 4GB GSkill Module from memoryc.com for 113 Euros (Inc 10 Euros for shipping to Singapore).

    My 2510P is speced as follows:
    U7700 1.33GHz C2D
    2GB DDR2 RAM
    120GB 5400rpm 1.8" HDD (Samsung)

    The Module
    As I chose registered post, I only received this module this morning after placing the order on 25 Sept.

    [​IMG]

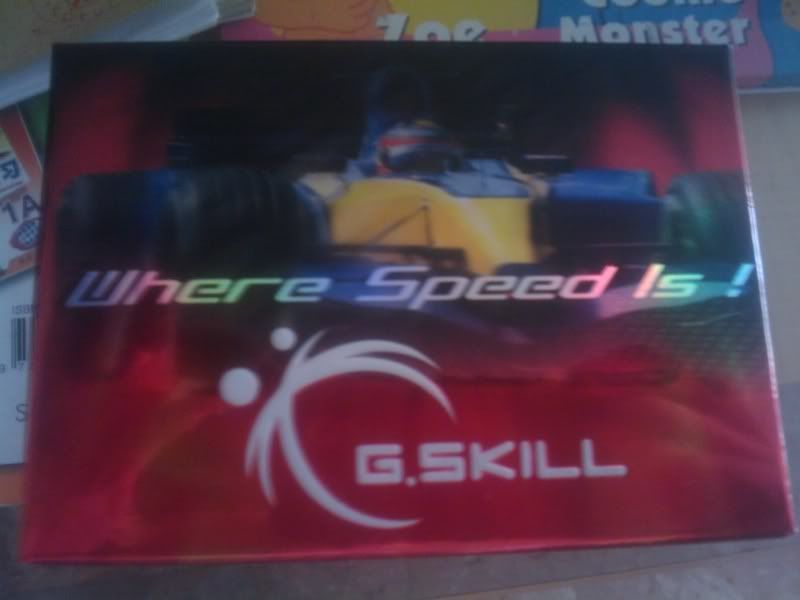

    The Box of the Module

    [​IMG]

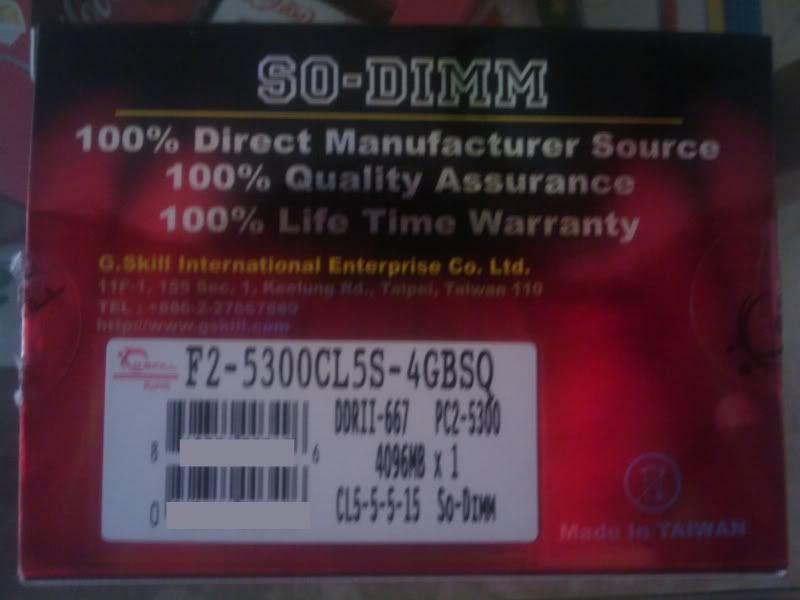

    The Back of the Box

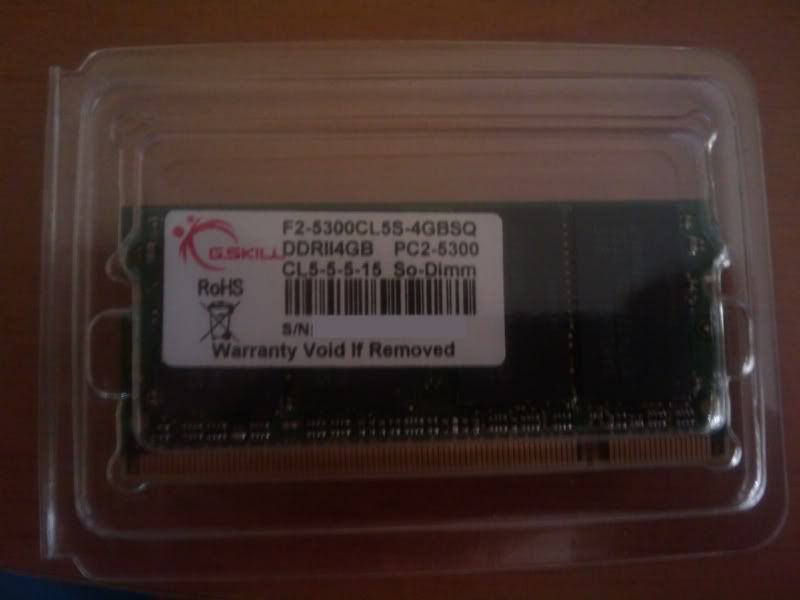

    [​IMG]
    The Module itself


    Having received the module, I proceeded to upgrade my 2510P....

    [​IMG]

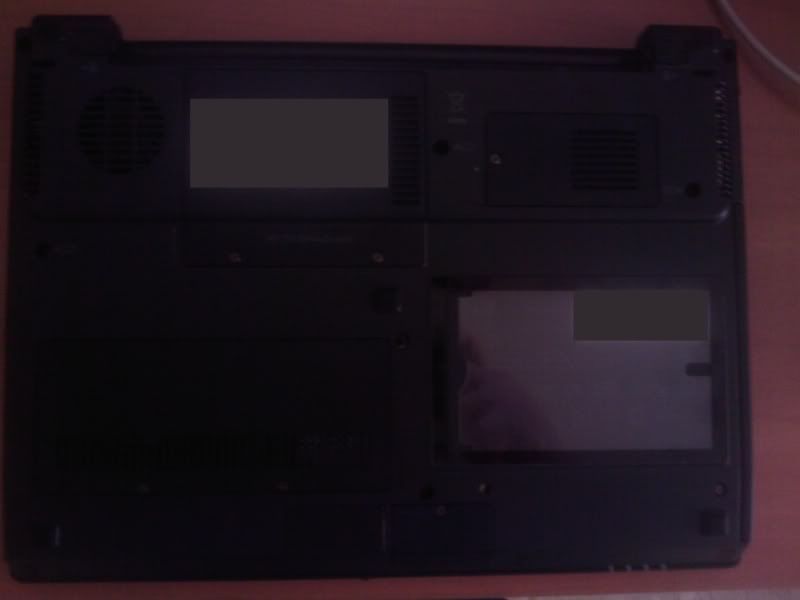

    The Bottomside of my 2510P


    [​IMG]

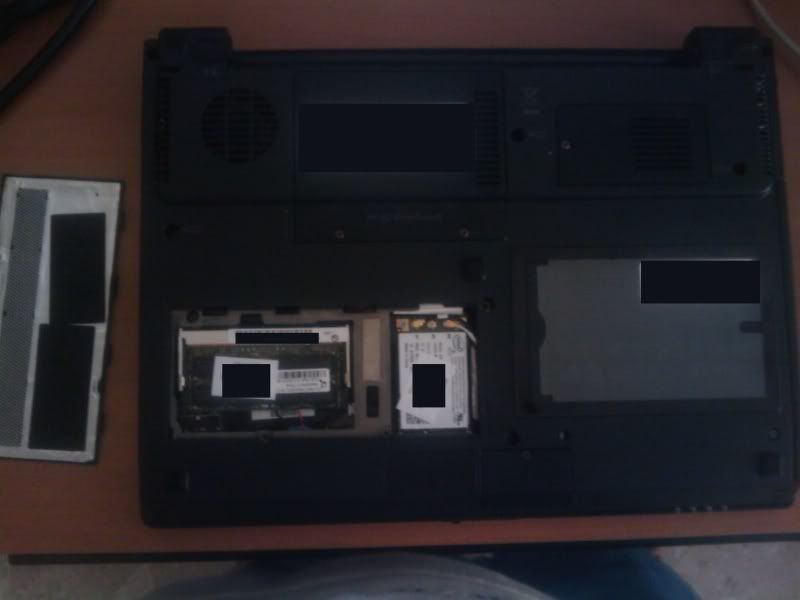

    Removal of the cover to access the sole SODIMM Slot


    [​IMG]

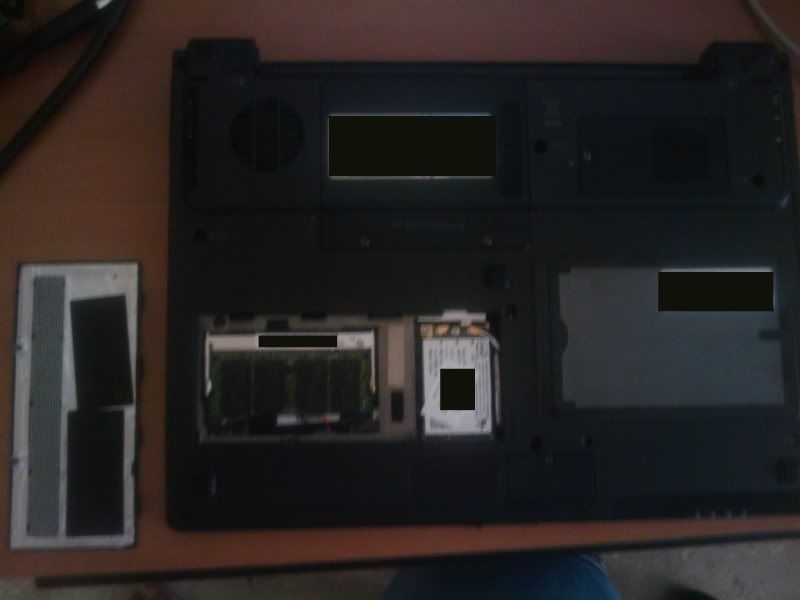

    The new memory module slotted in

    And now....Boot up Time!

    [​IMG]

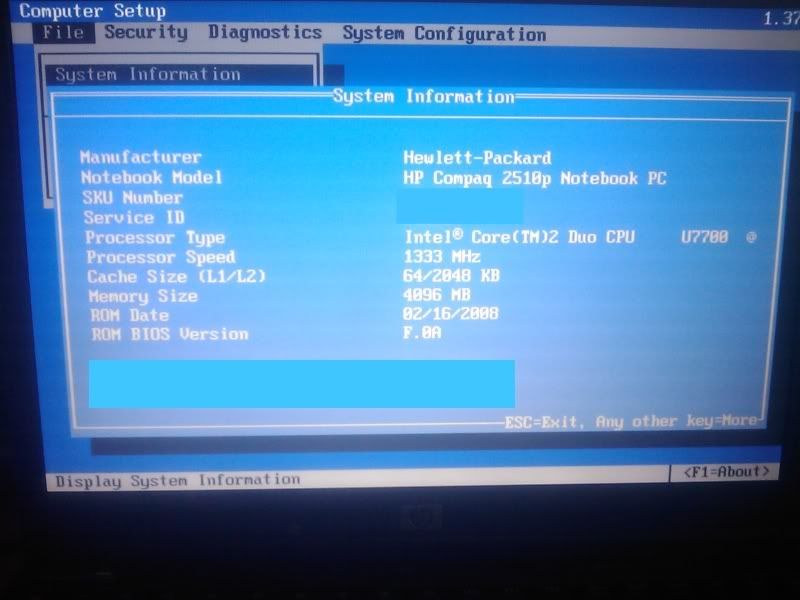

    And it works!

    [​IMG]

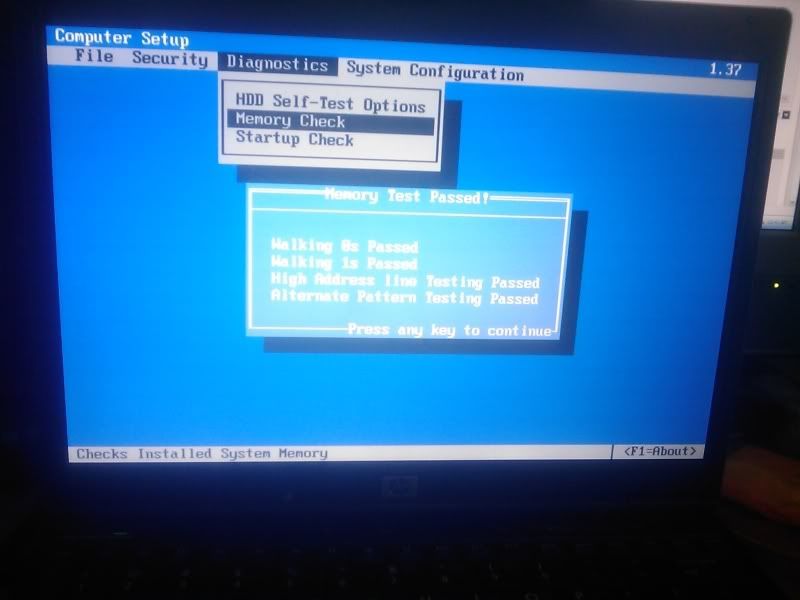

    Memory Test Cleared!

    Onwards to Vista, I am using Vista Business 32bit.
    [​IMG]

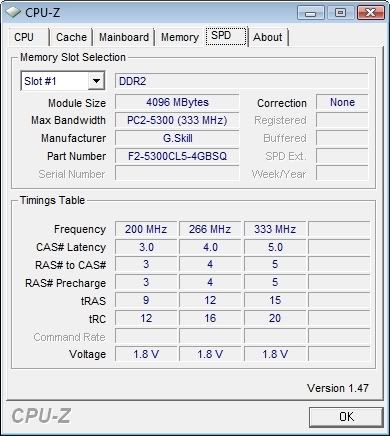

    The SPD Table programmed into the Gskill Module

    [​IMG]

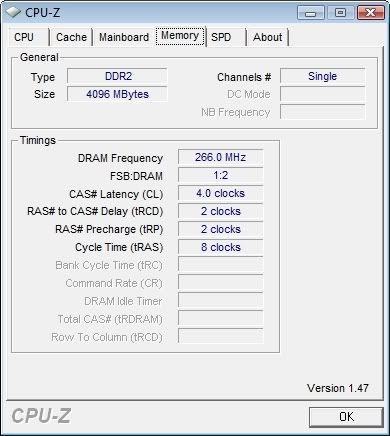

    My Current Timings


    Conclusion
    To Conclude, it is possible to upgrade the 2510P to 4GB ram. And now....back to enjoying my 2510P!
    And btws....My apologies for the poor quality of my photos, they were taken using my HTC Diamond =)

    Last edited by a moderator: Feb 6, 2015
    ctty, Oct 3, 2008
    #1
  2. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    Great information

    flipfire, Oct 4, 2008
    #2
  3. sfsilicon

    sfsilicon Notebook Geek

    Reputations:
    15
    Messages:
    94
    Likes Received:
    0
    Trophy Points:
    15
    I thought you needed to run a Win 64bit OS to address the full 4GB? What in your research made you decide to order the memory?

    Can you recommend other sites where I can find more 2510p upgrades/mods? I was wondering if it was possible to upgrade my stock DVD/CDROM drive or replace it with a faster 2.5 SSD?

    sfsilicon, Dec 1, 2008
    #3
  4. Vehement

    Vehement Notebook Consultant

    Reputations:
    74
    Messages:
    299
    Likes Received:
    0
    Trophy Points:
    0
    Oh yeah, your baby is rock and rollin' with 4GB. The risk was worth taking after all :) [​IMG]

    Vehement, Dec 1, 2008
    #4
  5. KonKet

    KonKet Notebook Enthusiast

    Reputations:
    0
    Messages:
    18
    Likes Received:
    0
    Trophy Points:
    5
    Wow. That's nice.
    I've just checked the website and it showed $ 219.70. WTH...

    KonKet, Mar 5, 2009
    #5
  6. jaxwithanx

    jaxwithanx Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Excellent, now upgrade to 64-bit so you actually can make use of more than 75% of your $250 investment.

    jaxwithanx, Apr 15, 2009
    #6
  7. mujjuman

    mujjuman Notebook Deity

    Reputations:
    80
    Messages:
    1,071
    Likes Received:
    1
    Trophy Points:
    56
    That's good information to know for 2510P users.

    Now to use the full 4GB of RAM, you should eventually upgrade to a 64bit OS, but I'm sure you already knew that.

    Check to see how much RAM is available for Windows to use.. I think the Performance tab in the Task Manager.

    mujjuman, Apr 15, 2009
    #7
  8. bubblyStink

    bubblyStink Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    hello i have a question, my computer has been pretty much maxxing out the ram since i only have 1 gb. so i was wondering if i could also upgrade it to 4gb, but my specs are differernt from the person who did this. my specs are
    processor: U7600 1.20GHz C2D
    Ram:1.00GB
    System type: 32-bit OS windows 7 ultimant
    so if i did want to get 4 gb would i need to also upgrade my processor? or could i just just get the 4GB and 64-bit since that would be much less expensive for me. or would the system not even be able to use the whole 4 GB even with the 64-bit and if so i should just get a 2BG.

    bubblyStink, Jan 20, 2010
    #8
  9. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    4GB upgrade would need 64-bit OS to use all of it, otherwise 32-bit Win7 would only use ~3GB. U7600 CPU supports 64-bit code so no need to upgrade it, nor is it readily possible since the CPU is BGA soldered onboard.

    User Retired 2, Jan 23, 2010
