    V2000Z BIOS F.24 ... PC3200 @ 160MHz

    Discussion in 'HP' started by j0hn00, Apr 24, 2006.

  1. j0hn00

    j0hn00 Notebook Evangelist

    Reputations:
    70
    Messages:
    394
    Likes Received:
    0
    Trophy Points:
    30
    I reinstalled Windows on my notebook and noticed that my memory was locked in at 160MHz. I'm not 100% positive, but I think I remember it running at the full 200MHz after I flashed my BIOS to F.24 prior to reinstalling Windows. I tried reverting to an older BIOS but kept getting the message that it wasn't meant for my board. Any thoughts?

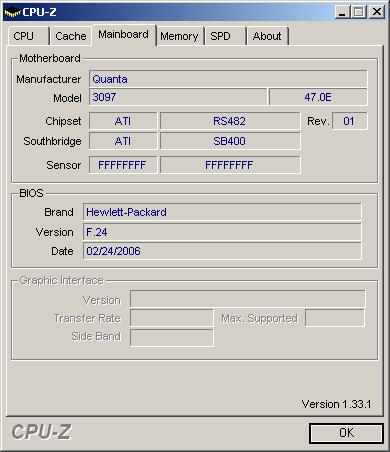

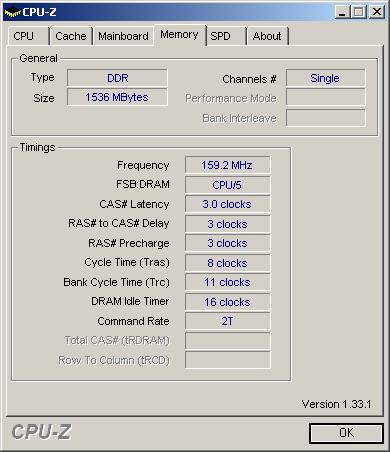

    Attached Files:

    • 1.JPG
      File size:
      32.7 KB
      Views:
      135
    • 2.JPG
      File size:
      32.2 KB
      Views:
      92
    j0hn00, Apr 24, 2006
    #1
  2. davin

    davin Notebook Enthusiast

    Reputations:
    7
    Messages:
    20
    Likes Received:
    1
    Trophy Points:
    5
    Is your CPU running at 800 mhz when you check the memory speed? try running something that will put the CPU at 100% (like prime95) and plug into A/C power... make sure CPU is running at 2GHz and check again.

    davin, Apr 24, 2006
    #2
  3. j0hn00

    j0hn00 Notebook Evangelist

    Reputations:
    70
    Messages:
    394
    Likes Received:
    0
    Trophy Points:
    30
    You know, I thought the throttling of the CPU wouldn't matter... but you're right. Just tried zipping a large file. Must be an added feature of the new BIOS.

    j0hn00, Apr 24, 2006
    #3
  4. chinna_n

    chinna_n Notebook Deity NBR Reviewer

    Reputations:
    186
    Messages:
    883
    Likes Received:
    0
    Trophy Points:
    30
    I also see the same behaviour. But I am not sure if it is the bios or the CPUz reporting changed. Because if I run 1.31 version, it reports running at DDR400 speed irrespective of CPU speed. But CPUz version 1.33 reports DDR speed 160Mhz when there is no load and jumping up when load comes up and running at 200Mhz.

    So, based on your statements above I am guessing that the change is in CPUz reporting, rather than bios. Probably bios has been doing this downclocking from the earlier bios itself, but CPUz could not detect the memory down clocking.

    chinna_n, Apr 24, 2006
    #4
  5. j0hn00

    j0hn00 Notebook Evangelist

    Reputations:
    70
    Messages:
    394
    Likes Received:
    0
    Trophy Points:
    30
    Possibly... I just remember CPU-Z always reporting 200MHz till I looked today.

    j0hn00, Apr 24, 2006
    #5
  6. chinna_n

    chinna_n Notebook Deity NBR Reviewer

    Reputations:
    186
    Messages:
    883
    Likes Received:
    0
    Trophy Points:
    30
    Yes, that is the case. CPUz release notes for 1.33 says this

    ODC (Odd Divisor Correct) for Athlon64 rev. E (update 1.33.1), Turion current revision being E5.

    But I am not sure, which one is correct, as same authors ClockGen reads the memory as well as FSB as 200Mhz same time.

    chinna_n, Apr 24, 2006
