    WHat HP notebook display do i have?

    Discussion in 'HP' started by indianmessiah, Jun 5, 2016.

  1. indianmessiah

    indianmessiah Notebook Geek

    Reputations:
    0
    Messages:
    85
    Likes Received:
    3
    Trophy Points:
    16
    Hi all i am new to this forum
    i currently own a HP Dv9500 8 years old . And its display seems to rock like an Ipad or macbook type . i was not able to find any new 17 inch Budget laptops with this kind of display Only the newer more expensive laptops IPS panels seem to match its quality.

    Brightview display (1680x1050) Glossy: yes


    I am not sure as some claim it is HP Ultra bright view . I am not sure what kind of panel it uses but it looks like an IPS display quality. But it does have very wide viewing angles ( left and right) and top and bottom . Only the top-bottom viewing angles at the extreme angles seems to fade away the colours but that not as bad as TN panels . Overall the panel has a strong yellowish cast to it

    Now my question here is :

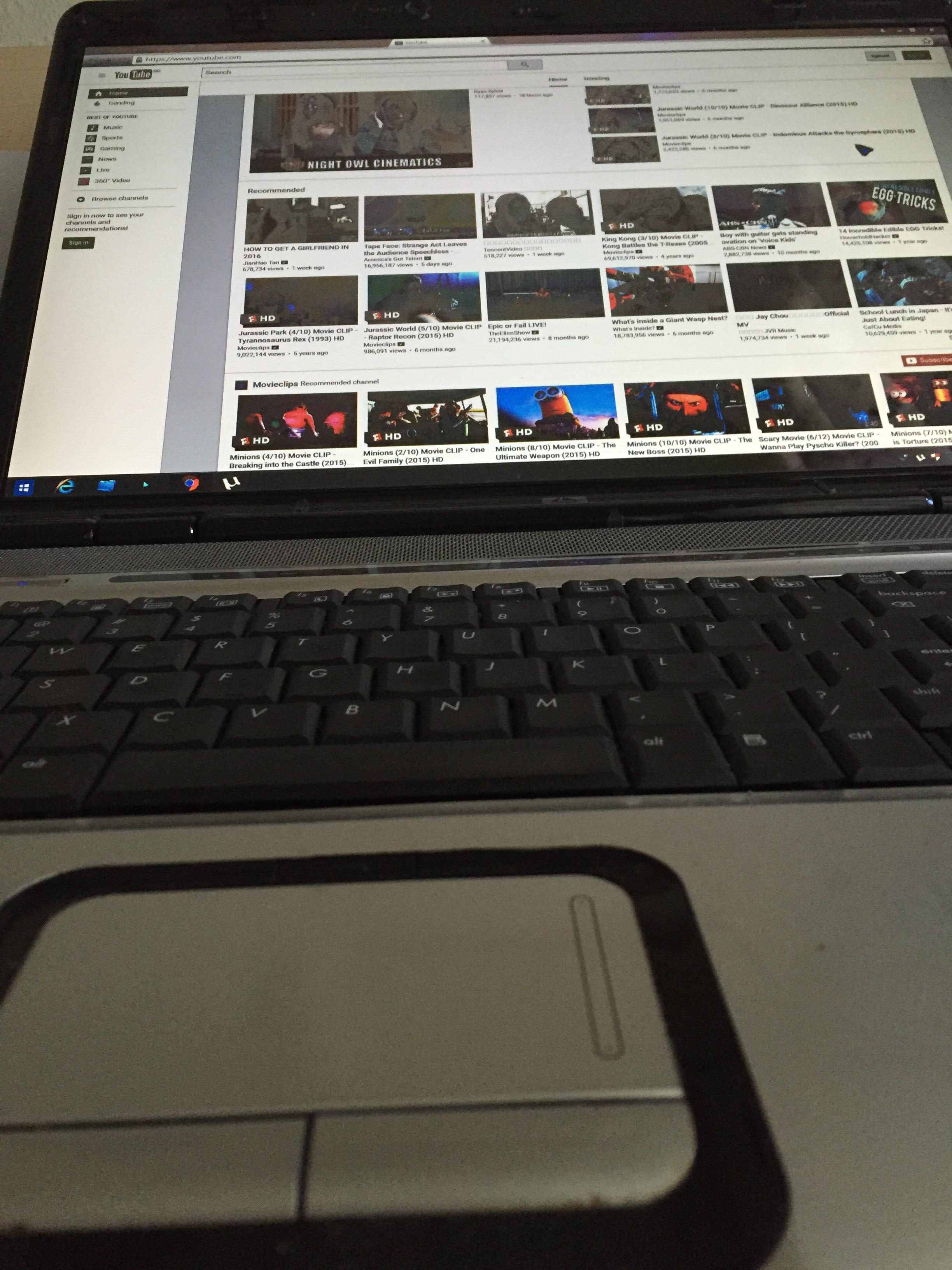

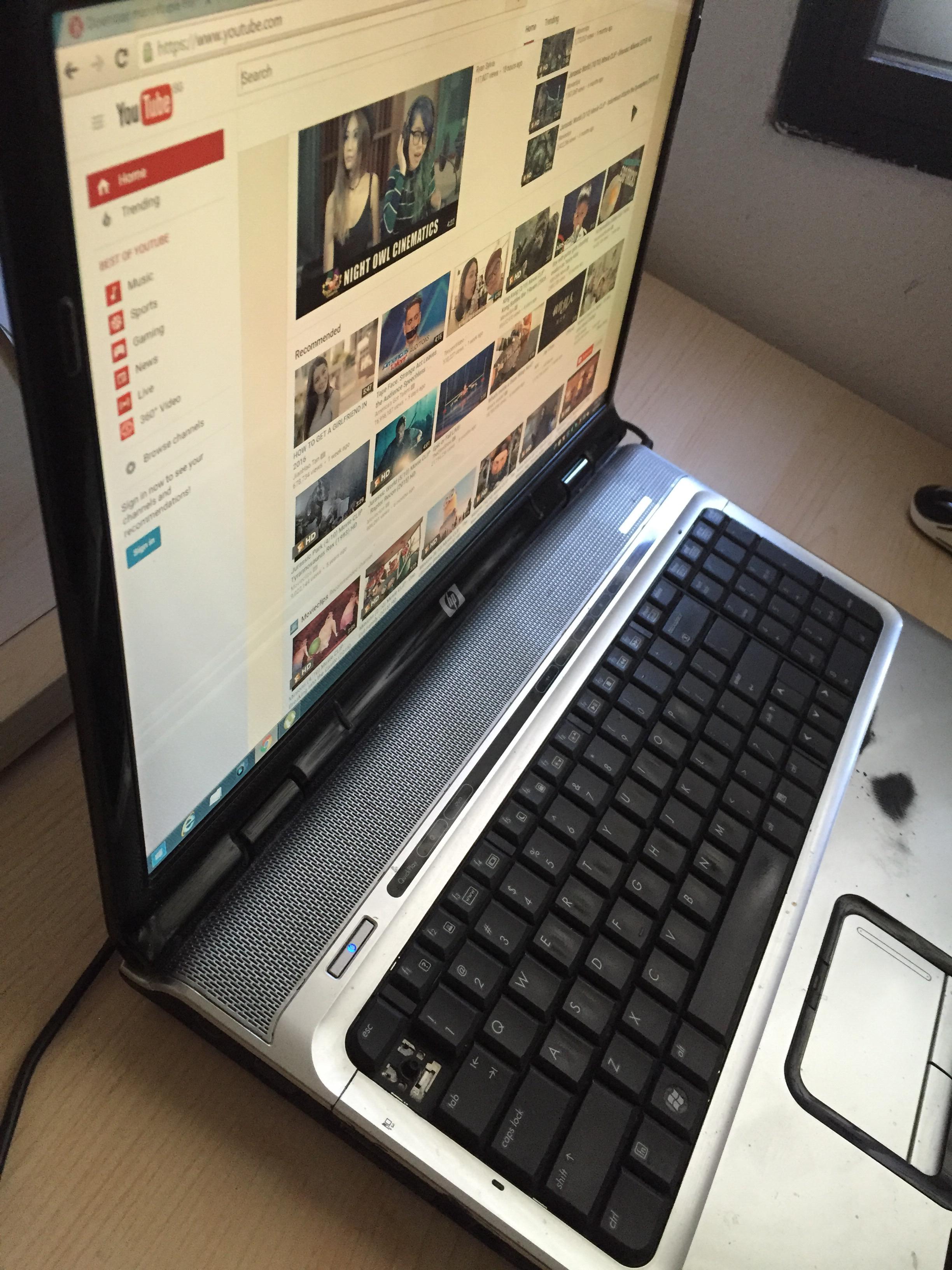

    Can someone tell me if i get the HP elitebook 8740W without dream color , will it be better it surpass my DV 9500? attached are the pics of my DV9500 display. Taken with iphone 6 . And its at this angle which i took


    [​IMG]
    [​IMG]

    Last edited: Jul 3, 2016
  2. indianmessiah

    indianmessiah Notebook Geek

    Reputations:
    0
    Messages:
    85
    Likes Received:
    3
    Trophy Points:
    16
    Monitor
    Windows description...... Generic PnP Monitor
    Manufacturer............. Samsung
    Plug and Play ID......... SEC4447
    Data string.............. LTN170WP-L02
    Serial number............ n/a
    Manufacture date......... 2005, ISO week 0
    Filter driver............ Monitor
    -------------------------
    EDID revision............ 1.3
    Input signal type........ Digital
    Color bit depth.......... Undefined
    Display type............. RGB color
    Screen size.............. 370 x 230 mm (17.2 in)
    Power management......... Not supported
    Extension blocs.......... None
    -------------------------
    DDC/CI................... n/a

    Color characteristics
    Default color space...... Non-sRGB
    Display gamma............ 2.20
    Red chromaticity......... Rx 0.580 - Ry 0.340
    Green chromaticity....... Gx 0.310 - Gy 0.550
    Blue chromaticity........ Bx 0.155 - By 0.155
    White point (default).... Wx 0.313 - Wy 0.329
    Additional descriptors... None

    Timing characteristics
    Range limits............. Not available
    GTF standard............. Not supported
    Additional descriptors... None
    Preferred timing......... Yes
    Native/preferred timing.. 1680x1050p at 59Hz (16:10)
    Modeline............... "1680x1050" 119.000 1680 1728 1760 1840 1050 1052 1058 1100 -hsync -vsync

    Standard timings supported

    Report information
    Date generated........... 6/5/2016
    Software revision........ 2.60.0.972
    Data source.............. Registry-Active
    Operating system......... 6.1.7601.2.Service Pack 1

    Raw data
    00,FF,FF,FF,FF,FF,FF,00,4C,A3,47,44,00,00,00,00,00,0F,01,03,80,25,17,78,0A,87,F5,94,57,4F,8C,27,
    27,50,54,00,00,00,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,7C,2E,90,A0,60,1A,32,40,30,20,
    26,00,6D,E4,10,00,00,19,00,00,00,0F,00,00,00,00,00,00,00,00,00,41,5F,05,19,00,00,00,00,FE,00,53,
    41,4D,53,55,4E,47,0A,20,20,20,20,20,00,00,00,FE,00,4C,54,4E,31,37,30,57,50,2D,4C,30,32,0A,00,9E

  3. indianmessiah

    indianmessiah Notebook Geek

    Reputations:
    0
    Messages:
    85
    Likes Received:
    3
    Trophy Points:
    16

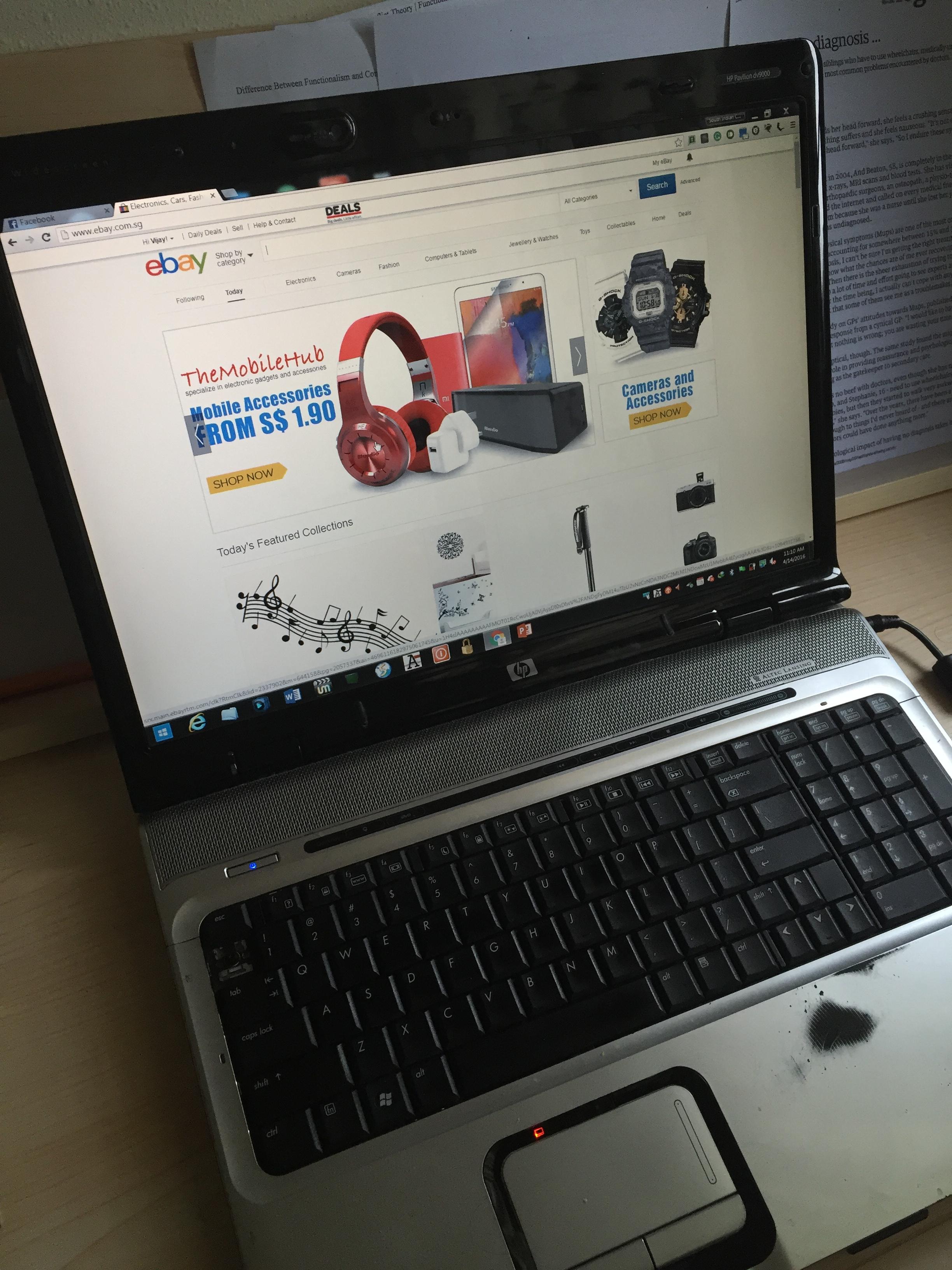

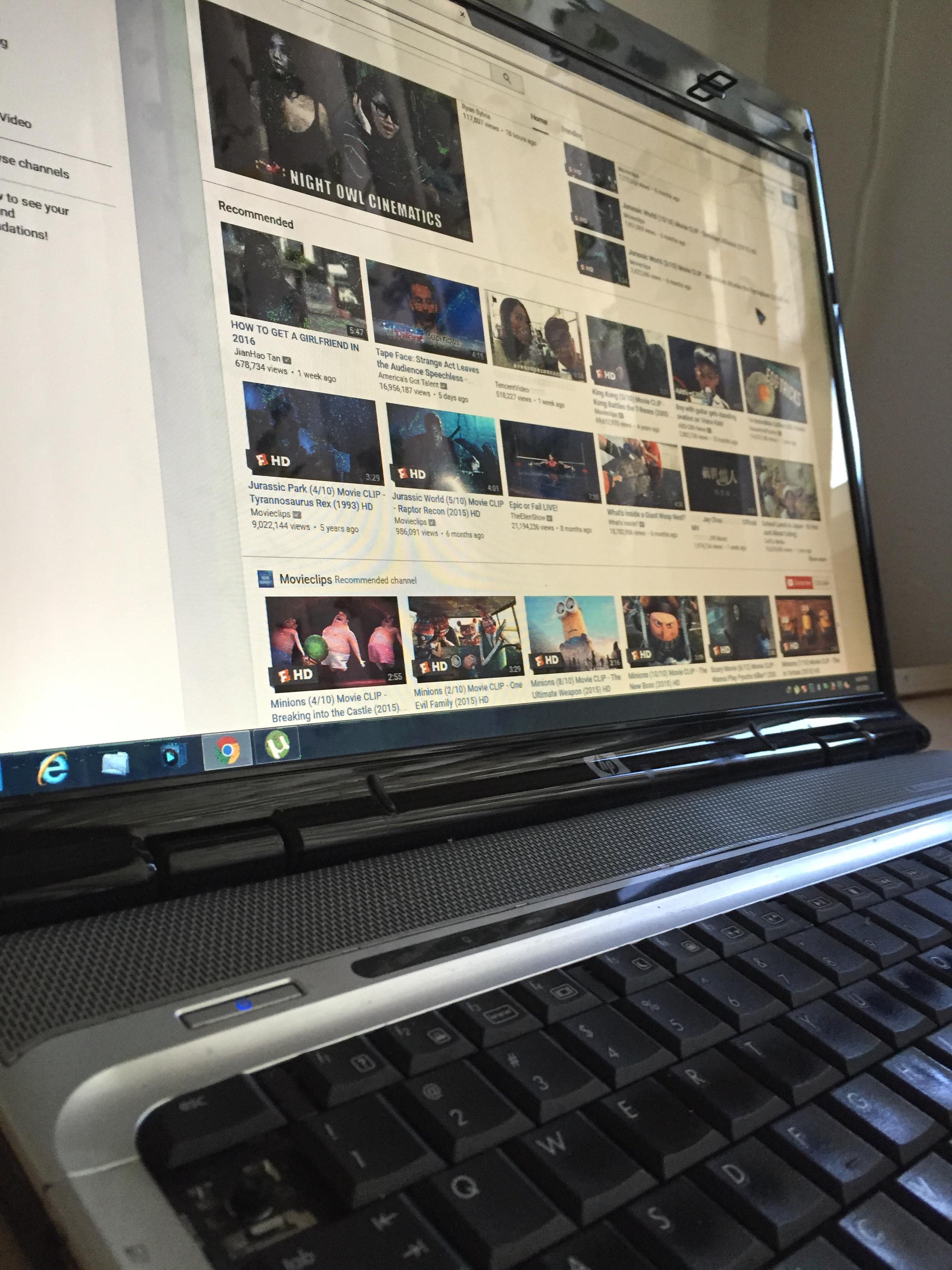

    and with my current model about the HP dv9500, here are more pics for u to see
    From top-bottom angle at the maximum


    [​IMG]

    Left to right angles
    [​IMG]
    [​IMG]

  4. DRFP

    DRFP Notebook Evangelist

    Reputations:
    65
    Messages:
    584
    Likes Received:
    36
    Trophy Points:
    41
    The 1080p screens are a higher resolution and have the same viewing angles ( frome the side and top no wash out)
    ( I have one on the x360) and its awesome!

  5. indianmessiah

    indianmessiah Notebook Geek

    Reputations:
    0
    Messages:
    85
    Likes Received:
    3
    Trophy Points:
    16
    So should I get a 1080p led backlit TN display for my next laptop ?


    Sent from my iPhone using Tapatalk

  6. indianmessiah

    indianmessiah Notebook Geek

    Reputations:
    0
    Messages:
    85
    Likes Received:
    3
    Trophy Points:
    16
    Well most Ultrabooks have good display to justify their price . But many 17.3 inch laptops come with crappy display


    Sent from my iPhone using Tapatalk

    DRFP likes this.
  7. indianmessiah

    indianmessiah Notebook Geek

    Reputations:
    0
    Messages:
    85
    Likes Received:
    3
    Trophy Points:
    16
    i currently have another laptop which is a 17.3 inch DELL with 1600x900) display. but its viewing angle -top-botttom is not good a sa slight variation puts off the picture . In dark scenes i get a glow in black areas at the top... if i get a 1080P TN display laptop will all these probelms be solved???
