WLAN module replacement

My sister have a HP 14-cm0610ng laptop with 2.4Ghz Realtek RTL8723DE WLAN module.
I want to install dual band module, but this laptop have only 1 antenna.
Which dual band 2.4Ghz/5Ghz module can I install here?

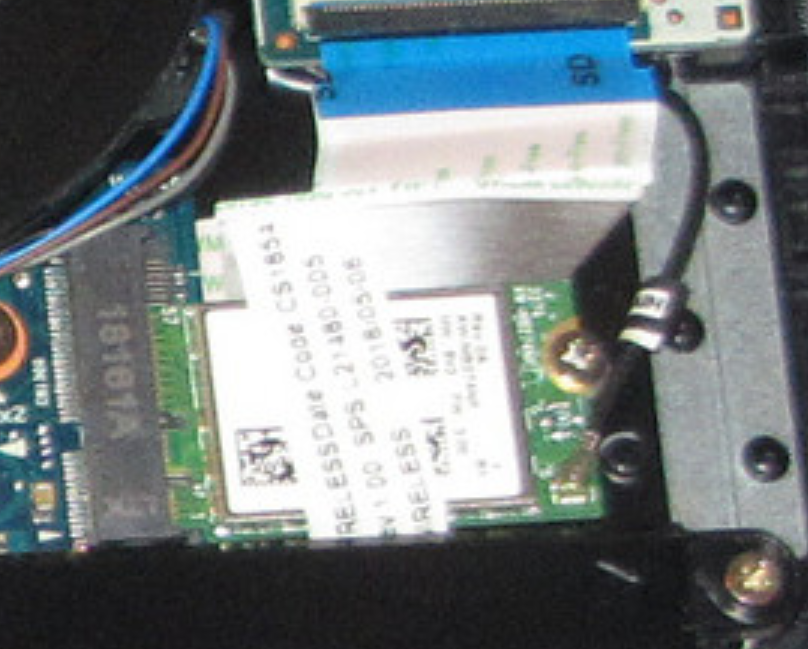

Photo from NBC review



Realtek RTL8723DE 802.11b/g/n PCIe Adapter:

Realtek RTL8822BE 802.11 ac 2x2 WiFi + Bluetooth 4.2 Combo Adapter (MU-MIMO supported) - 924813-855

Is this what your looking for ? In order to get AC speeds you'll need to have an AC router.

or

Intel Dual Band Wireless AC 3168 802.11AC 1x1 WiFi + Bluetooth 4.2 Combo Adapter (non-vPro) - 863934-855

The number of antennas is irrelevant to get 2.4/5 ghz its the wlan card it self then the wireless router.

The intel one , I'd recommend with a good ac router like TP-Link AC Router. I have tp link ac router and ac wlans , all good no disconnects, ect.

with ac router and ac wlan 5 ghz--433mb/s connection speed with 2 antennas on the wlan card- 5 ghz--867mb/s--see now.



https://translate.google.com/transl...-cm0610ng-WLAN-Adapter/m-p/558434&prev=search

You can also get usb 3 ac wlan adapter and run it that way for about $20-$30 new--Linksys WUSB6100M-802.11 AC-Wifi-USB 3, I use this one on one of my laptops and its super this adapter is 2.4/5Ghz I run this on the 5Ghz band.. qualcomm chipset.

The ac wireless modem I have is tp link Archer C2600- Qualcomm Chipset

AC2600 Wireless Dual Band Gigabit Router Archer C2600

• 4-Stream for the Fastest Wi-Fi Speeds – The Archer C2600 reaches the fastest max speeds available over its 2.4GHz (800Mbps) and 5GHz (1733Mbps) bands
• Run Multiple Devices Simultaneously – The Archer C2600 operates up to 3x faster* by running MU-MIMO to serve multiple devices at once instead of one at a time
• Multi-Task without Slowing Down – A powerful 1.4GHz dual-core processor lets you smoothly surf, stream, and game at the same time
• Maximum Range – 4 dual band detachable high performance antennas provide maximum Omni-directional wireless coverage with beamforming technology
• TP-LINK Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices
• MU-MIMO for Nonstop Entertainment on All Your Devices
• with 2 yr warranty right on the box.

A friend of mine showed up and seen my AC2600 Router and bought the same one,,lol

when going ac look for qualcomm chipsets--these are the best hands down--, intel is next best

Even my samsung flip phone with world band tech-4 bands is qualcomm chipset.

As too broadcom trying to buy qualcomm, I knew this would fail-this is like mole hill trying to buy a mountain.



Post wifi questions in Network and Wireless section and you'll get help faster.
