    What function do the extra 3-pins of S-video connector serve?

    Discussion in 'HP' started by prabhg, Aug 4, 2008.

  1. prabhg

    prabhg Notebook Evangelist

    Reputations:
    0
    Messages:
    306
    Likes Received:
    0
    Trophy Points:
    30

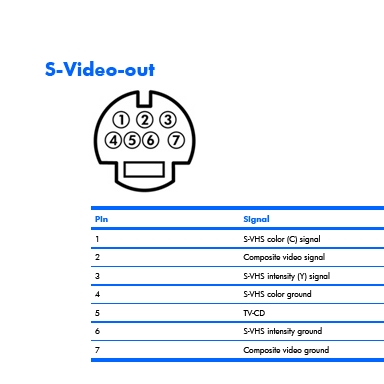

    I have this snapshot of dv6000 series service manual, and it shows different values for all the pins of S-video. All I know is that a 4-pin plug fits in my 7-pin outlet and works fine, so I was curious about the other three pins and added function they serve??? Can we squeeze some extra functioanlity from the other 3 pins?
    [​IMG]

    prabhg, Aug 4, 2008
    #1
  2. deeastman

    deeastman Notebook Deity

    Reputations:
    977
    Messages:
    1,095
    Likes Received:
    0
    Trophy Points:
    55
    Here is the pinout from the Hardware Maintenance Manual for the dv6700 series (see attachment), my notebook type. Somewhat different than the snapshot in your post.

    Here is a read from the HP Business Forums "S-Video connector - what are the 3 additional Pins for?"


    Attached Files:

    deeastman, Aug 5, 2008
    #2
