    dv6t-3100 keyboard release switch

    Discussion in 'HP' started by rextech, Jul 20, 2011.

  1. rextech

    rextech Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Hi folks. I am trying to disassemble my laptop to redo the thermal paste. I have a pavilion dv6t-3100, product number: ww142av. I have the manual (c02657339). On page 65 it has an arrow pointing to a "keyboard release switch". I absolutely cannot find it. I have used strongs lights and magnification. I'm guessing the graphic is wrong and it should be pointing elswhere. I am positive this is the correct manual. Can someone help me? Thanks.

    rextech, Jul 20, 2011
    #1
  2. shasta7

    shasta7 Notebook Evangelist

    Reputations:
    63
    Messages:
    359
    Likes Received:
    1
    Trophy Points:
    31
    It is in the battery compartment just to the right of the pins that connect the battery

    shasta7, Jul 20, 2011
    #2
  3. rextech

    rextech Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5

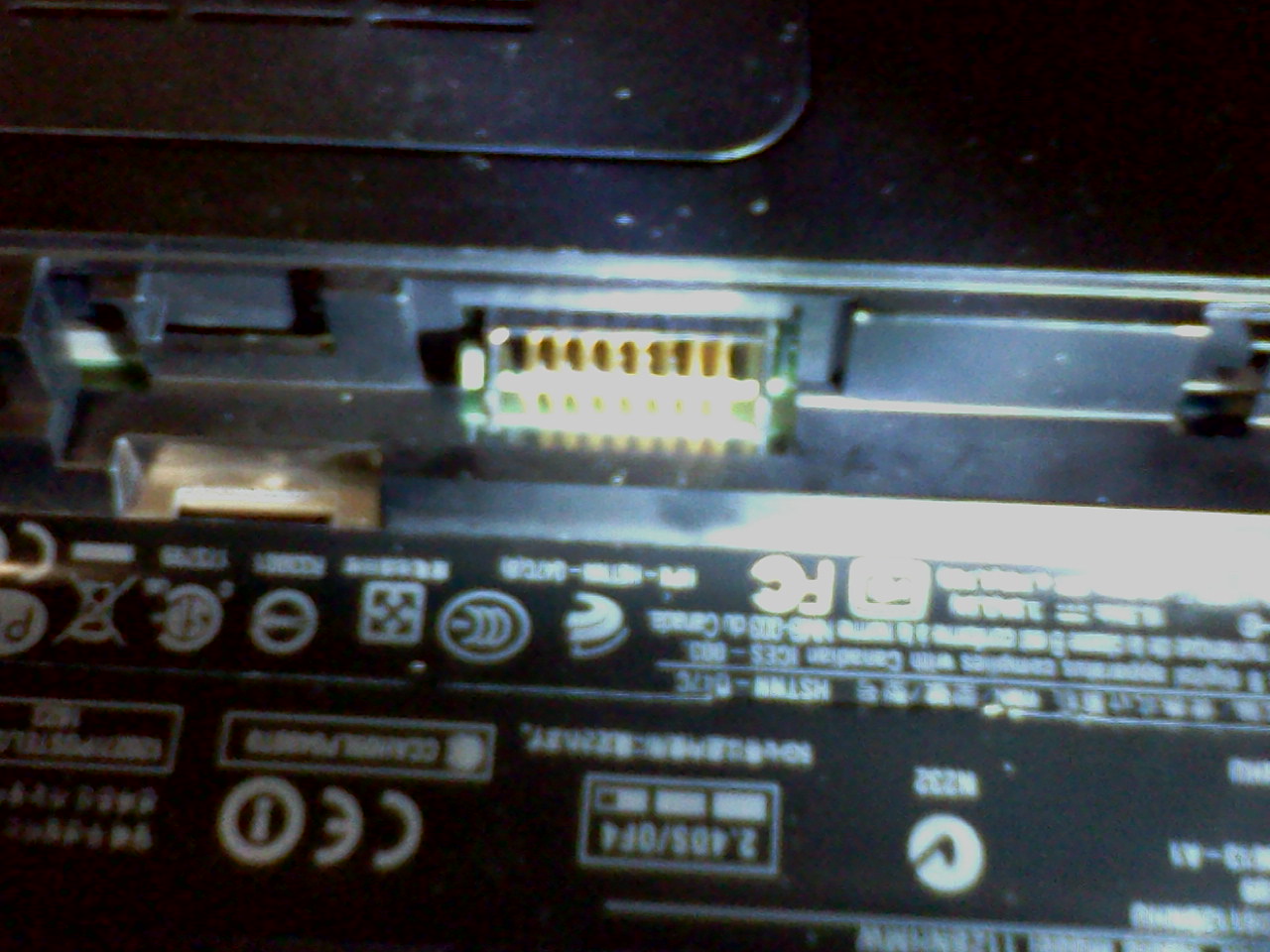

    Thanks for the reply Shasta. I still don't see it. I have attached a photo below. It is as viewed from the back, so I assume that it would be on the left in this photo. The only thing on the left is the latch for the battery. On the right is a blank area. I even peeled up the labels a bit to see if it were hidden under there. I apologize for the fuzzy picture. I don't have my camera with me; this was taken with my phone.


    Attached Files:

    rextech, Jul 21, 2011
    #3
  4. shasta7

    shasta7 Notebook Evangelist

    Reputations:
    63
    Messages:
    359
    Likes Received:
    1
    Trophy Points:
    31
    On mine the latch is on the right in your picture it would be the top right. It looks to be there in your picture

    shasta7, Jul 21, 2011
    #4
  5. shasta7

    shasta7 Notebook Evangelist

    Reputations:
    63
    Messages:
    359
    Likes Received:
    1
    Trophy Points:
    31
    [​IMG]

    shasta7, Jul 21, 2011
    #5
  6. rextech

    rextech Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Thanks again for the reply. I am still having trouble seeing it. There are two catches for the battery. One is clearly visible in the photo, about 3/4 of an inch to the left of the pins. the other catch for the battery is to the right, just at the edge of the photo. between that and the pins is a blank area of plastic that is part of the cover. Other than the battery latches there is nothing else movable in that area. Do you have this same laptop?

    rextech, Jul 21, 2011
    #6
  7. shasta7

    shasta7 Notebook Evangelist

    Reputations:
    63
    Messages:
    359
    Likes Received:
    1
    Trophy Points:
    31
    No I have a dv7
    Directly to the right of the battery pins in where the battery goes there is that little square indent
    it is the top right in your picture not on the back of the laptop but in the battery compartment
    it is very small compared the the latch on the back for the battery

    shasta7, Jul 21, 2011
    #7
  8. shasta7

    shasta7 Notebook Evangelist

    Reputations:
    63
    Messages:
    359
    Likes Received:
    1
    Trophy Points:
    31
    at the tip of the match head is my latch


    Attached Files:

    shasta7, Jul 21, 2011
    #8
  9. rextech

    rextech Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Thanks again for your involvement. Many times someone will post a question only to be ignored. In spite of what the book says, my laptop does not have a latch. whoever was the technical writer must have messed up. I got it apart, and did the thermal paste. I carefully examined the backside of the keyboard once I got it out. There is no place a latch would hook into. It was only held in by the screws. Thanks again, and happy computing.

    rextech, Jul 25, 2011
    #9
  10. shasta7

    shasta7 Notebook Evangelist

    Reputations:
    63
    Messages:
    359
    Likes Received:
    1
    Trophy Points:
    31
    You are welcome . I too have posted a query and been ignored so I try to help where I can. Welcome to NBR There is a wealth of information and knowledge here and a lot of people willing to help. the only stupid question is the one not asked!! :)

    shasta7, Jul 26, 2011
