    Lenovo Legion 5 Pro 16" Camera and Logo Light not working

    Discussion in 'Lenovo' started by pitha1337, Mar 20, 2021.

  1. pitha1337

    pitha1337 Notebook Evangelist

    Reputations:
    77
    Messages:
    314
    Likes Received:
    263
    Trophy Points:
    76
    Hello everyone,

    I got my brand new Lenovo Legion 5 Pro 16" with AMD CPU and RTX 3070. Nearly everything is working perfectly and the Laptop ist performing very well. Unfortunately there are some minor issues which are annoying me. I guess they are related to each other.

    1. Camera of the Laptop ist not working
    2. Legion Logo on the back is not lighting up

    I assume it is an hardware error, maybe a cable is not connected correctly because whatever I do the camera is not detected by the system (checked drivers, hardware switch, BIOS, device manager).

    Has someone a hint how I can solve this issue?

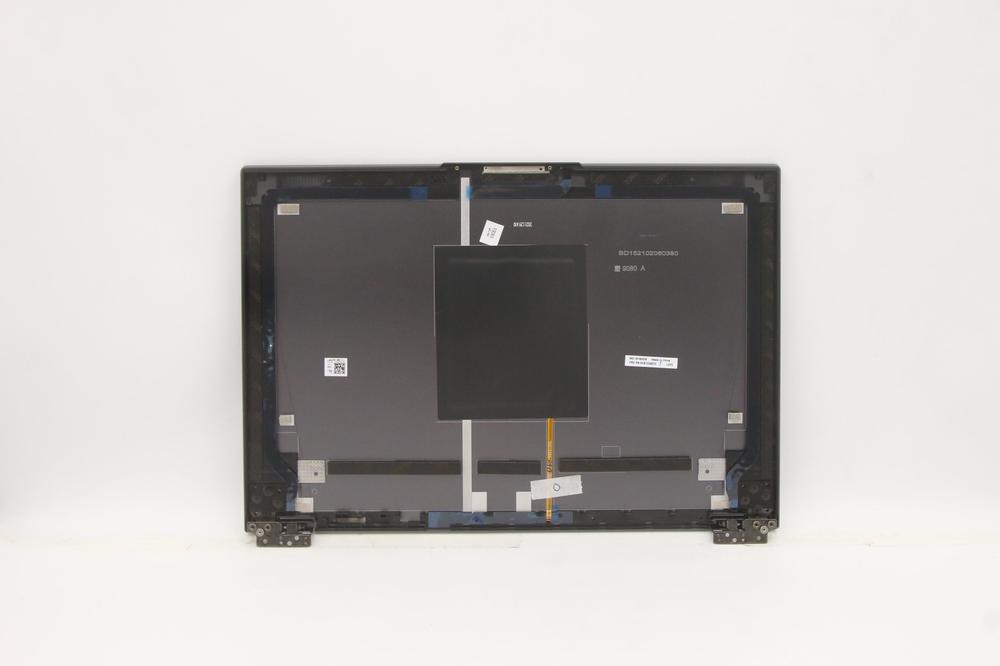

    I have already dissasembled the whole system and checked the motherboard cable but I guess the cables I'm looking for are behind the LCD screen...therfore you have to remove the cover which is very diffucult and could harm the system...


    Attached Files:

    pitha1337, Mar 20, 2021
    #1
  2. pitha1337

    pitha1337 Notebook Evangelist

    Reputations:
    77
    Messages:
    314
    Likes Received:
    263
    Trophy Points:
    76

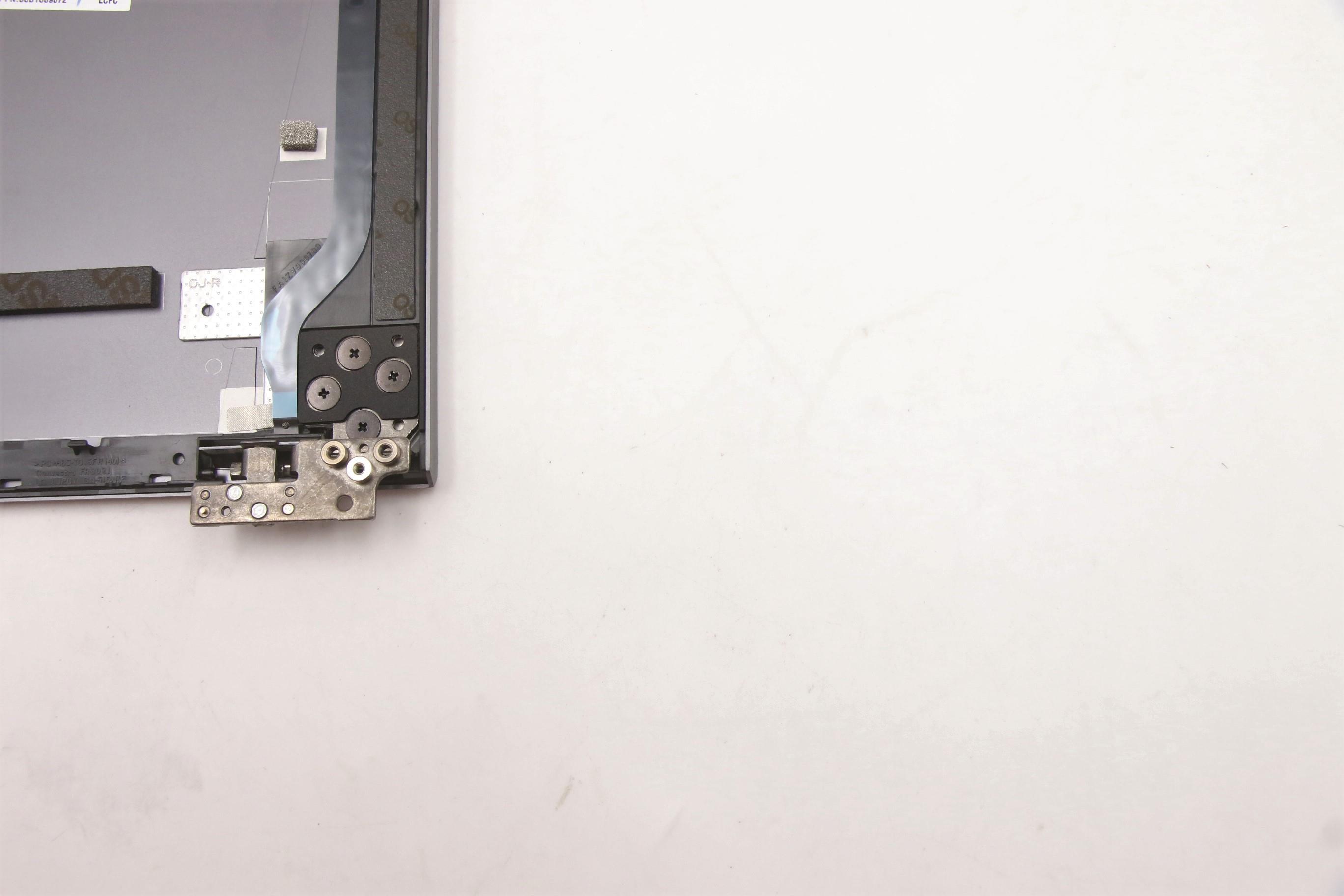

    Fixed the issue on my own. A cable under the hinge cover was not attached.

    pitha1337, Mar 21, 2021
    #2
  3. Layne

    Layne Notebook Geek

    Reputations:
    0
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    15
    I am having some issues with the camera too or to be more precise with the camera physical on/off switch - it does not work at all, there is no indications on the screen too (enable/disable icon does not appear). The camera is working though. Did you experience any similar issues with that switch too?

    Layne, Jul 27, 2021
    #3
  4. Layne

    Layne Notebook Geek

    Reputations:
    0
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    15
    Well, if someone is experiencing this too, I was able to fix it by opening the laptop and moving around the actual usb-camera switch board (USB Board L 82JQ) - the button on the board was not correctly aligned with the physical switch on the chassis. The camera switch is working as expected now.

    Last edited: Jul 30, 2021
    Layne, Jul 30, 2021
    #4
