    Lenovo jipped me?

    Discussion in 'Lenovo' started by gguan, Dec 19, 2008.

  1. gguan

    gguan Notebook Consultant

    Reputations:
    0
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    So as part of my ongoing quest to Clean install my lenovo. I downloaded the CPU-Z programs (cheers to Arkit3kt). And I go to the memory section and it says TYPE is DDR2.


    Funny thing is that I ordered DDR3. and part of customization of the T500 doesnt even offer DDR2. does this mean lenovo jipped me?

    gguan, Dec 19, 2008
    #1
  2. andyasselin

    andyasselin Notebook Deity

    Reputations:
    140
    Messages:
    1,690
    Likes Received:
    0
    Trophy Points:
    55
    from what i recall cpuz id has,nt been up date to pick up ddr

    you t500 most like does have ddr3 it just cpu not pick up it

    andyasselin, Dec 19, 2008
    #2
  3. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,782
    Trophy Points:
    581
    Click over to the SPD tab, and it should be reading it as DDR3 there. That's how it is on my notebook.

    Kevin, Dec 19, 2008
    #3
  4. gguan

    gguan Notebook Consultant

    Reputations:
    0
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    I did that as well Slot 1 and 2 of the SPD section say DDR3. I looked at this other post on this forum and a guy had the similar problem but his SPD told him he had DDR3. I on the other hand dont have it telling me DDR3. So does that mean Lenovo gave me DDR2?

    gguan, Dec 19, 2008
    #4
  5. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    What do you mean?

    namaiki, Dec 19, 2008
    #5
  6. gguan

    gguan Notebook Consultant

    Reputations:
    0
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    [​IMG]

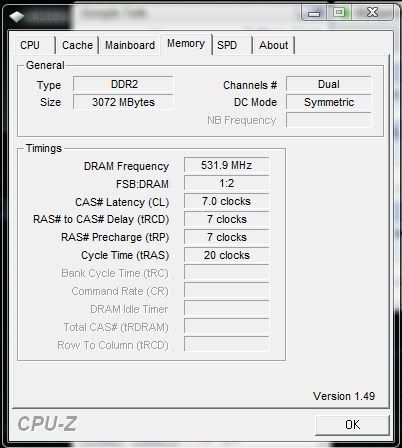

    My memory tab

    [​IMG]

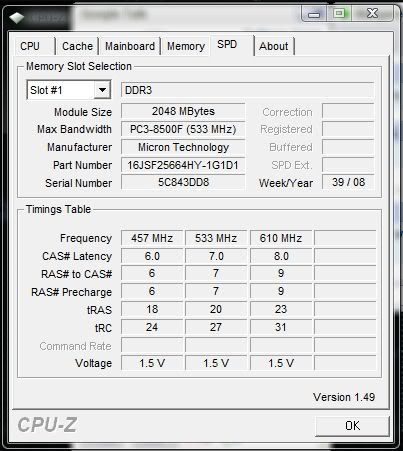

    my SPD tab

    gguan, Dec 19, 2008
    #6
  7. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,782
    Trophy Points:
    581
    Memory
    [​IMG]

    SPD
    [​IMG]


    I'm not sure, but I'd call to find out.

    Kevin, Dec 19, 2008
    #7
  8. gguan

    gguan Notebook Consultant

    Reputations:
    0
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    I called Lenovo and they said I have DDR3 and they said the programs might not be compatable with VISTA. I still dont believe that for some reason. Is there a way I can check?

    gguan, Dec 19, 2008
    #8
  9. MaX PL

    MaX PL Notebook Deity

    Reputations:
    104
    Messages:
    1,042
    Likes Received:
    5
    Trophy Points:
    56
    havent we had this thread already?

    MaX PL, Dec 19, 2008
    #9
  10. gguan

    gguan Notebook Consultant

    Reputations:
    0
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    Not sure. If there is could you link it to me?

    gguan, Dec 19, 2008
    #10
  11. sparta.rising

    sparta.rising Notebook Consultant

    Reputations:
    47
    Messages:
    233
    Likes Received:
    0
    Trophy Points:
    30
    Why don't you just take out the RAM and see if it says DDR2 or DDR3?

    sparta.rising, Dec 19, 2008
    #11
  12. THAANSA3

    THAANSA3 Exit Stage Left

    Reputations:
    171
    Messages:
    1,885
    Likes Received:
    0
    Trophy Points:
    55
    Take this with a grain of salt, but I do believe someone else posted something similar to this and the conclusion was the CPU-Z cannot read (or pick up) DDR3 RAM yet. So, you probably do have DDR3 RAM even though the program is saying you only have DDR2.

    THAANSA3, Dec 19, 2008
    #12
  13. LaptopGun

    LaptopGun Notebook Evangelist

    Reputations:
    34
    Messages:
    362
    Likes Received:
    0
    Trophy Points:
    30
    I too believe there has been a thread or two with this same issue, but this was when the new models had jsut been released so there was a lot less known for sure

    It's DDR 3 memory. When I switched the keyboard on my W500 I saw the RAM sticker list DDR3. Lenovo's tech support guys should know the truth as well. Here's an idea if you still aren't sure and it will take at most 2 minutes. Go to the Lenovo parts look up page, punch your serial number and model type (get those from your confirm email, Lenovo account, invoice; or just use the auto detect feature). Check out the FRU number for your memory. Take that number and punch it into the Lenovo store to see what it is (should be one of the DDR3's).

    parts lookup: http://www-307.ibm.com/pc/support/site.wss/product.do?template=/partslookup/partsLookup.vm

    store: go to Lenovo's homepage. Take the path of Home > Products>Accessories & upgrades>Memory Look for the FRU or just punch for it in search.

    LaptopGun, Dec 20, 2008
    #13
  14. gguan

    gguan Notebook Consultant

    Reputations:
    0
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    OK thanks all sorry if I reposted

    gguan, Dec 20, 2008
    #14
  15. oct

    oct Notebook Evangelist

    Reputations:
    116
    Messages:
    402
    Likes Received:
    15
    Trophy Points:
    31
    just take out ram and look, you'll get an answer right away :)

    oct, Dec 20, 2008
    #15
  16. erik

    erik modifier

    Reputations:
    3,647
    Messages:
    1,610
    Likes Received:
    2
    Trophy Points:
    55
    i'm not sure why someone else hasn't posted this yet but here goes...

    it's physically impossible to install 200-pin DDR2 SODIMMs in a system requiring 204-pin DDR3 SODIMMs.

    therefore, the only memory your system can physically have is DDR3 no matter what any piece of software may say.

    relax... you have DDR3. ;)

    erik, Dec 20, 2008
    #16
  17. jaredy

    jaredy Notebook Virtuoso

    Reputations:
    793
    Messages:
    2,876
    Likes Received:
    1
    Trophy Points:
    56
    Yes we've already discussed this. You have ddr3. If you really want to check, then look at the memory itself.

    jaredy, Dec 20, 2008
    #17
  18. northwood

    northwood Notebook Guru

    Reputations:
    5
    Messages:
    66
    Likes Received:
    0
    Trophy Points:
    15
    northwood, Dec 20, 2008
    #18
  19. jkchang

    jkchang Notebook Enthusiast

    Reputations:
    2
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    DDR2 and DDR3 have different "check pin" locations. DDR2 won't even fit in the motherboard for the T500... The 'check pin' is the small 'empty' slot in the ram where a piece of the motherboard's ram slow will protrude into. DDR1, DDR2 and DDR3 have different 'check pin' locations.

    Done and done.

    jkchang, Dec 20, 2008
    #19
