    List of drives that are compatible with the x220

    Discussion in 'Lenovo' started by noxxle99, Apr 21, 2011.

  1. sml

    sml Notebook Guru

    Reputations:
    17
    Messages:
    73
    Likes Received:
    0
    Trophy Points:
    15
    hmm ... just a few days ago ordered a C300.

    maybe i should have gone for a bare OCZ Vertex 3 !?

    sml, Apr 25, 2011
    #51
  2. Seagalkick

    Seagalkick Notebook Enthusiast

    Reputations:
    13
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    Seagalkick, Apr 25, 2011
    #52
  3. floz23

    floz23 Notebook Evangelist

    Reputations:
    109
    Messages:
    436
    Likes Received:
    0
    Trophy Points:
    30
    floz23, Apr 25, 2011
    #53
  4. ebolamonkey3

    ebolamonkey3 Notebook Consultant

    Reputations:
    23
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30
    Man, didn't realize Newegg is out of 80gb mSATA drives just now :(

    Everybody click on auto-notify so they'll get more in stock quicker!

    ebolamonkey3, Apr 25, 2011
    #54
  5. onewolf

    onewolf Notebook Guru

    Reputations:
    0
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    Done.

    Assuming they get more in stock (interesting that nobody has any - not just newegg)... are you going to install Win7 on the mSata and use the HD for data? I'm looking forward to getting a report on the steps/effort involved.

    onewolf, Apr 25, 2011
    #55
  6. cr2250

    cr2250 Notebook Enthusiast

    Reputations:
    0
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    Where are the intel 310 80gb units? No one has them in stock!

    cr2250, Apr 25, 2011
    #56
  7. Jayayess1190

    Jayayess1190 Waiting on Intel Cannonlake

    Reputations:
    4,009
    Messages:
    6,712
    Likes Received:
    54
    Trophy Points:
    216
    Amazon.com?

    Jayayess1190, Apr 25, 2011
    #57
  8. vinuneuro

    vinuneuro Notebook Virtuoso

    Reputations:
    486
    Messages:
    2,232
    Likes Received:
    25
    Trophy Points:
    66
    vinuneuro, Apr 25, 2011
    #58
  9. cr2250

    cr2250 Notebook Enthusiast

    Reputations:
    0
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15

    I saw that too while looking. I know it has the same That's a intel 320 series, looking for 310 series

    SSDMAEMC080G2C1 That's the product number and no one has them.

    Nor amazon has them either.

    Nice try

    I guess serversupply has them in stock, never heard of them tho

    cr2250, Apr 25, 2011
    #59
  10. vinuneuro

    vinuneuro Notebook Virtuoso

    Reputations:
    486
    Messages:
    2,232
    Likes Received:
    25
    Trophy Points:
    66
    Ah you're right. Makes me glad I bought mine on sale from newegg last week. It must be all the Thinkpad buyers buying them up.

    vinuneuro, Apr 25, 2011
    #60
  11. runemass.ist

    runemass.ist Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    runemass.ist, Apr 26, 2011
    #61
  12. WyrmHF

    WyrmHF Notebook Consultant

    Reputations:
    27
    Messages:
    104
    Likes Received:
    0
    Trophy Points:
    30
    I can't believe my own stupidity. :eek: I've been searching for a good 1.8" SSD to put into X220T, cursing Lenovo that they couldn't make it 2.5" and that there are so few good 1.8" drives available.

    Thanks goodness I'd seen this thread before I pulled the trigger. Thanks to everyone who kept this thread up!

    WyrmHF, Apr 26, 2011
    #62
  13. runemass.ist

    runemass.ist Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5

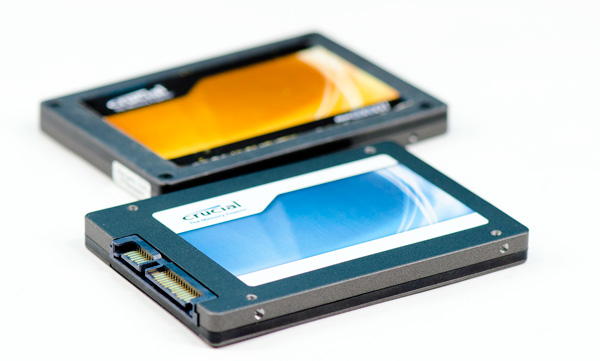

    More evidence:

    [​IMG]

    in which you can clearly see the black spacer.

    runemass.ist, Apr 26, 2011
    #63
  14. dbman190

    dbman190 Notebook Geek

    Reputations:
    18
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    The micron product sheet (a few posts back) has 7mm models of the C400 listed. I hope stores stock those; I'd be willing to pay a premium to not have to void my warranty by modding an SSD.

    dbman190, Apr 26, 2011
    #64
  15. thecrafter

    thecrafter Notebook Consultant

    Reputations:
    59
    Messages:
    259
    Likes Received:
    0
    Trophy Points:
    30
    I just canceled my Intel 320 order for one of these. Hope they show up in stores before the x220s ship

    thecrafter, Apr 26, 2011
    #65
  16. runemass.ist

    runemass.ist Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    It seems that m4 doesn't have such warranty-void sticker. See here.

    runemass.ist, Apr 26, 2011
    #66
  17. dbman190

    dbman190 Notebook Geek

    Reputations:
    18
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    They aren't showing the important shot, which is the edge opposite the SATA connector.

    dbman190, Apr 26, 2011
    #67
  18. triton.

    triton. Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    If you use the compatibility wizard on crucial's site for SSD, it shows the M4 as a compatible drive for the X220. I posted a question on there asking specifically if the drive is compatible with the X220, and also if the warranty would be void if you remove the spacer to make it fit the 7mm height. Lets see if they review and approve the question.

    triton., Apr 26, 2011
    #68
  19. sivikchen

    sivikchen Notebook Enthusiast

    Reputations:
    34
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    sivikchen, Apr 26, 2011
    #69
  20. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    User Retired 2, Apr 26, 2011
    #70
  21. cr2250

    cr2250 Notebook Enthusiast

    Reputations:
    0
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    cr2250, Apr 26, 2011
    #71
  22. User Retired 2

    User Retired 2 Notebook Nobel Laureate NBR Reviewer

    Reputations:
    4,127
    Messages:
    7,860
    Likes Received:
    10
    Trophy Points:
    0
    A deshelled 9.5mm OCZ Vertex 2 confirmed to fit in a 7mm cavity in a T420(s) here.

    User Retired 2, Apr 27, 2011
    #72
  23. liamdye

    liamdye Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    I would also like to note that the m4/C400 does come in 7mm drive flavors as is detailed by this product brief.

    The difference in model numbers is "AK" = 7mm and "AC" = 9mm.

    MTFDDAK256MAM-1K1 = 7mm
    MTFDDAC256MAM-1K1 = 9mm

    Hope this helps.

    liamdye, Apr 27, 2011
    #73
  24. nfree

    nfree Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hey all--first post here.

    I like the specs on the crucial C300--but I also like the Samsung 470. (everybody like options, right?)

    So while investigating the possibilities of de-shelling 9.5mm SSDs to fit in a 7mm slot I came across this picture of a Samsung 470 series drive with the top half of its shell removed--and the circuit board is itself screwed into the bottom shell:

    Samsung 470 Series 256GB SSD Review - Image Gallery - TechSpot

    Looks good 'nuff to me to mount it like that ... I'm sure the top half of the shell is at least 2.5mm high and the bottom half should alone provide at least as much protection as an anti-static bag. Any thoughts?

    Also--bit late for this comment--but one reason NOT to use the mini PCI-e connection in the x220 for an SSD ... cause it is already fitted with a WWAN card like on my machine.

    nfree, Apr 27, 2011
    #74
  25. teddyc27

    teddyc27 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    teddyc27, Apr 27, 2011
    #75
  26. sp00n

    sp00n Notebook Deity

    Reputations:
    512
    Messages:
    1,684
    Likes Received:
    0
    Trophy Points:
    55
    when i bought my intel 40gb ssd, it came some short screws. do those not work?

    sp00n, Apr 27, 2011
    #76
  27. floz23

    floz23 Notebook Evangelist

    Reputations:
    109
    Messages:
    436
    Likes Received:
    0
    Trophy Points:
    30
    floz23, Apr 27, 2011
    #77
  28. TempXM

    TempXM Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    Negative. The smaller of the two screws is to mount the SSD to the 3.5" bracket and the larger is to mount the 3.5" bracket to a desktop case.

    I cut the screws down to size with a dremel.

    TempXM, Apr 28, 2011
    #78
  29. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,839
    Likes Received:
    2,158
    Trophy Points:
    581
    M2 x 3 screws (what I had available) work OK. M2 x 4 may work provided they don't bottom out. What is the length of the threaded part of the existing screws? subtract 2.5mm (the spacer thickness) from that and you get the maximum length of the screws you can use without the spacer.

    John

    John Ratsey, Apr 28, 2011
    #79
  30. triton.

    triton. Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Thanks. I'd like to get one without voiding the warranty. I don't see them available yet on crucials website.

    triton., Apr 29, 2011
    #80
  31. triton.

    triton. Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Any issues with warranty issues and buying Intel 320 OEM Drive from Buy.com? Not the retail box version. I remember reading a thread where there were issues with warranty coverage for the OEM box version of the drives.

    triton., Apr 29, 2011
    #81
  32. thecrafter

    thecrafter Notebook Consultant

    Reputations:
    59
    Messages:
    259
    Likes Received:
    0
    Trophy Points:
    30
    If you want one now, get the Intel 320 series. You can easily remove the spacer (just 4 screws) and it does not void the warranty. But you'll need to get 4 new, shorter screws that are pretty hard to find unless you shop online. Ace and Home Depot don't have them. They're on ebay for some $3.80 shipped for 10 of 'em

    thecrafter, Apr 29, 2011
    #82
  33. triton.

    triton. Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Thanks, Intel 320 is my backup, would like to get the M4 because of performance if I can. Have a link to screws? I think there suppose to be 2x3

    triton., Apr 29, 2011
    #83
  34. hitman_36

    hitman_36 Notebook Consultant

    Reputations:
    1
    Messages:
    235
    Likes Received:
    0
    Trophy Points:
    30
    hitman_36, Apr 30, 2011
    #84
  35. Seagalkick

    Seagalkick Notebook Enthusiast

    Reputations:
    13
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    Seagalkick, Apr 30, 2011
    #85
  36. ZaZ

    ZaZ Super Model Super Moderator

    Reputations:
    4,977
    Messages:
    34,000
    Likes Received:
    1,413
    Trophy Points:
    581
    If you don't need WWAN, I might suggest the Intel mSATA drive and the Hitachi Z5k500. You'll save quite a bit and have more storage.

    ZaZ, Apr 30, 2011
    #86
  37. ferganer80

    ferganer80 Notebook Consultant

    Reputations:
    185
    Messages:
    199
    Likes Received:
    0
    Trophy Points:
    30
    The new Intel 320 SSds fit 7 mm slots.

    ferganer80, Apr 30, 2011
    #87
  38. liamdye

    liamdye Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    I believe your link to the C400 Product brief is off, you have to take out the / at the end for it to work: http://www.crucial.kiev.ua/pdf/c400_ssd_product_brief.pdf

    Also, it isn't the M4 that comes in the 7mm variant, only the C400. The difference is that that the M4 is a drive by Crucial, and the C400 (with the 7 and 9.5mm variants) are by Micron, Crucial's parent company. This makes the C400 challenging to order as there are less vendors since it's mainly meant for OEMs. I am trying to hunt down a 256GB 7mm Micron SSD as we speak.

    liamdye, Apr 30, 2011
    #88
  39. liamdye

    liamdye Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    These are Micron part numbers, Crucial's parent. Crucial doesn't offer a 7mm version at this time (I called them to confirm).

    liamdye, Apr 30, 2011
    #89
  40. thecrafter

    thecrafter Notebook Consultant

    Reputations:
    59
    Messages:
    259
    Likes Received:
    0
    Trophy Points:
    30
    Do you mean new revision? Because Intel 320 isn't new any more. I just got a 320 yesterday and it's definitely 9mm with a spacer that can easily be removed to make it 7mm (but needed to buy shorter screws)

    thecrafter, Apr 30, 2011
    #90
  41. hitman_36

    hitman_36 Notebook Consultant

    Reputations:
    1
    Messages:
    235
    Likes Received:
    0
    Trophy Points:
    30
    yeah I ordered mine with WWAN card. Very easy to use rather than have something sticking out from the laptop

    hitman_36, Apr 30, 2011
    #91
  42. sp00n

    sp00n Notebook Deity

    Reputations:
    512
    Messages:
    1,684
    Likes Received:
    0
    Trophy Points:
    55
    where did you purchase the shortened screws? are you sure the screws that came with the drive won't fit? (the ones used to mount the drive to a 3.5'' bracket)

    sp00n, Apr 30, 2011
    #92
  43. thecrafter

    thecrafter Notebook Consultant

    Reputations:
    59
    Messages:
    259
    Likes Received:
    0
    Trophy Points:
    30
    I bought an OEM version (costs less) that doesn't come with a retail box cables or mounting bracket. So I don't know about the screws for the mounting bracket.

    I got the screws from ebay: 15 NEW M2x3 Laptop Screws Bk DELL IBM HP Compaq sony US | eBay

    You could also simply use tape to tape the case together

    thecrafter, Apr 30, 2011
    #93
  44. sp00n

    sp00n Notebook Deity

    Reputations:
    512
    Messages:
    1,684
    Likes Received:
    0
    Trophy Points:
    55
    i used to have the 40gb x-25v before i sold it. i believe it came with the standard 'short' screws you would use to mount your desktop hard drives to the case's mounting holes.

    i also got the 80gb oem version, so we'll find out.

    sp00n, Apr 30, 2011
    #94
  45. erik

    erik modifier

    Reputations:
    3,647
    Messages:
    1,610
    Likes Received:
    2
    Trophy Points:
    55
    sp00n - laptop hard drive screws are M3x2.5 or M3x3 and too large for this purpose.

    you really do need M2x3 or M2x4 screws sourced elsewhere.

    erik, Apr 30, 2011
    #95
  46. sp00n

    sp00n Notebook Deity

    Reputations:
    512
    Messages:
    1,684
    Likes Received:
    0
    Trophy Points:
    55
    thanks for the clarification erik. looks like i'll be ordering some 2x3 screws from the ebay link posted above.

    sp00n, Apr 30, 2011
    #96
  47. hitman_36

    hitman_36 Notebook Consultant

    Reputations:
    1
    Messages:
    235
    Likes Received:
    0
    Trophy Points:
    30
    I'm confused, why is the intel 510 series cannot be inserted to x220 does the x220 has 1, 8" drive? Sorry for the repeated question

    hitman_36, May 1, 2011
    #97
  48. ZaZ

    ZaZ Super Model Super Moderator

    Reputations:
    4,977
    Messages:
    34,000
    Likes Received:
    1,413
    Trophy Points:
    581
    The X220 is a 2.5" drive, but it only 7mm high. Like most notebook hard drives, the 510 is 9.5mm in height. In other words, it's too tall to fit the bay.

    ZaZ, May 1, 2011
    #98
  49. hitman_36

    hitman_36 Notebook Consultant

    Reputations:
    1
    Messages:
    235
    Likes Received:
    0
    Trophy Points:
    30
    No way ..... really lenovo ..... are they restricting us for some reason ...

    hitman_36, May 1, 2011
    #99
  50. hitman_36

    hitman_36 Notebook Consultant

    Reputations:
    1
    Messages:
    235
    Likes Received:
    0
    Trophy Points:
    30
    this sucks, I've just ordered X220 but turns out that it is limited to 7mm height. I have been looking all over for the right SSD at 256GB but seems only Intel has less complains. Other brand seems having a lot of problem. Checked out newegg, they are out of stock for the 300GB Intel 320, then again Intel 320 is not Sata3 .... sucks really sucks. I wonder if I can modify the Intel 510. Make a new housing using CNC miling machines ...

    hitman_36, May 1, 2011
    #100
← Previous pageNext page →
