    Looking for photo of SD card reader in T61 14"

    Discussion in 'Lenovo' started by Mr. Ico, Dec 15, 2007.

  1. Mr. Ico

    Mr. Ico Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Hi
    I'm looking of a picture of the SD card reader in the ThinkPad T61 14". I couldn't find any T61 14" picture of it with google.
    I have a T61 14" wide with PC Card/ExpressCard slot and I was wonder how the SD card reader looks like.

    Would be possible to replace the PC Card/ExpressCard slot (FRU no. 42X3827) with the PC Card/4-in-1 media reader slot (FRU no. 42X3831)?
    (see Hardware Maintenance Manual)

    I saw the SD slot of the R61 15" and is placed at the front of the R61.

    A picture of the "PC Card/4-in-1 media reader" slot in a T61 14" wide would be greatly appreciated?

    Thanks
    Mr. Ico

    Mr. Ico, Dec 15, 2007
    #1
  2. hehe299792458

    hehe299792458 Notebook Deity

    Reputations:
    175
    Messages:
    1,571
    Likes Received:
    0
    Trophy Points:
    55
    do you realize you can just get an expresscard/pc card SD card reader? You just insert the adapter in the pc card slot

    hehe299792458, Dec 15, 2007
    #2
  3. Mr. Ico

    Mr. Ico Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for your answer.
    Yes, I do and in fact is what I already have, but I'm not happy with it.
    It is a PC card (32bit) but I get only 4 MB/s from a SD card and with that same SD card on a USB reader I get over 10 MB/S. There may be some issues with the standby too (I have still to check). The manufaturer doesn't update the driver either.
    Therefore I'm exploring alternatives.

    Mr. Ico

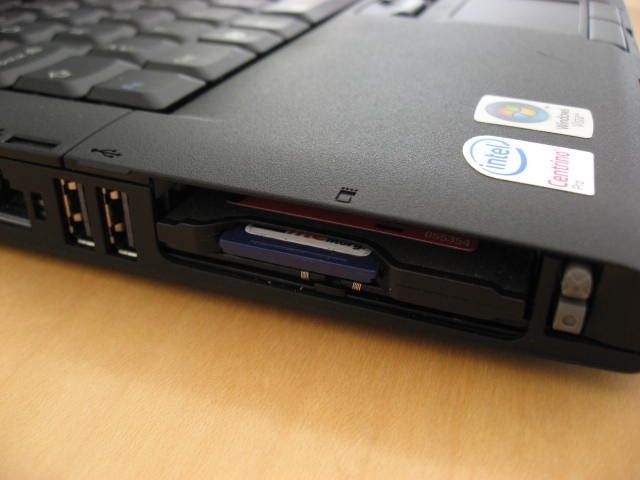

    Attached Files:

    Mr. Ico, Dec 15, 2007
    #3
  4. Mr. Ico

    Mr. Ico Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    is there any body that would be so kind to post a picture?

    Thanks
    Mr. Ico

    Mr. Ico, Dec 17, 2007
    #4
  5. chubbyfatazn

    chubbyfatazn Notebook Evangelist

    Reputations:
    87
    Messages:
    590
    Likes Received:
    0
    Trophy Points:
    30

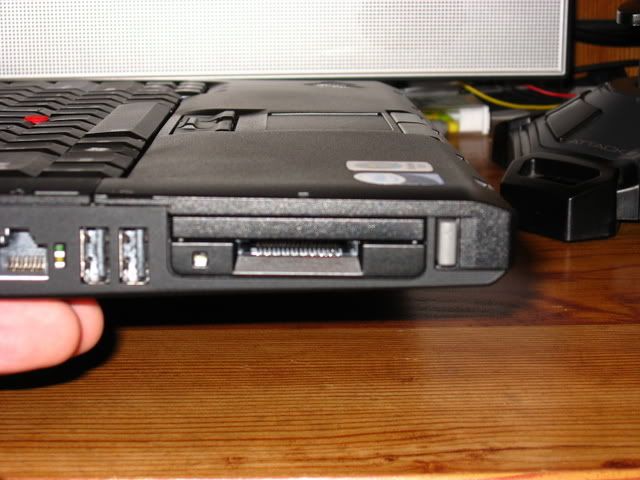

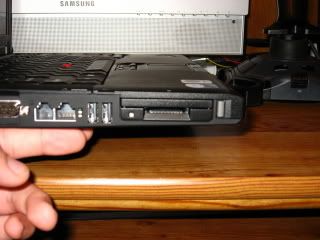

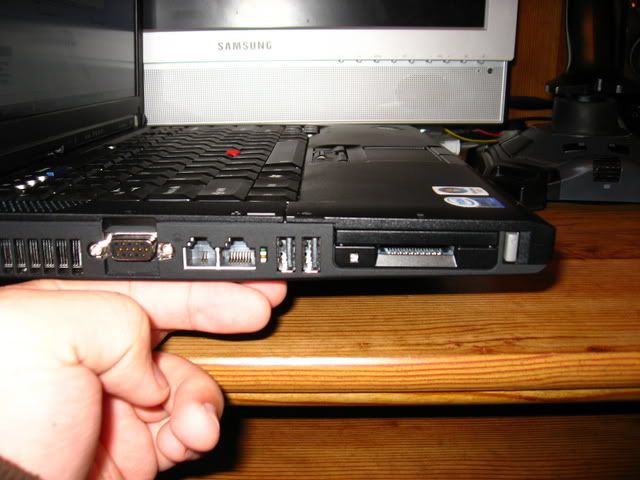

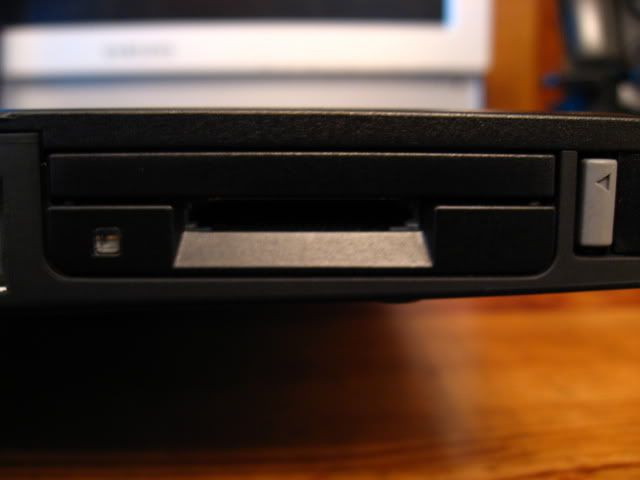

    Sorry for the poor quality.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    chubbyfatazn, Dec 17, 2007
    #5
  6. vi3tscorpian

    vi3tscorpian Notebook Evangelist

    Reputations:
    46
    Messages:
    330
    Likes Received:
    0
    Trophy Points:
    30
    can i buy that kind of media card reader u have in the picture from lenovo? just wondering... :)

    vi3tscorpian, Dec 17, 2007
    #6
  7. Mr. Ico

    Mr. Ico Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    chubbyfatazn: thanks a lot for the pictures!

    vi3tscorpian: you can order thet PC Card/4-in-1 media reader slot from Lenovo spare parts service (FRU no. 42X3831) and install it according the description of the Hardware Maintenance Manual

    cheers
    Mr. Ico

    Mr. Ico, Dec 19, 2007
    #7
