    Need Help with Shunt Modding Legion Y520 with GTX 1050

    Discussion in 'Lenovo' started by Fearsome_Beast, May 24, 2020.

  1. Fearsome_Beast

    Fearsome_Beast Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5

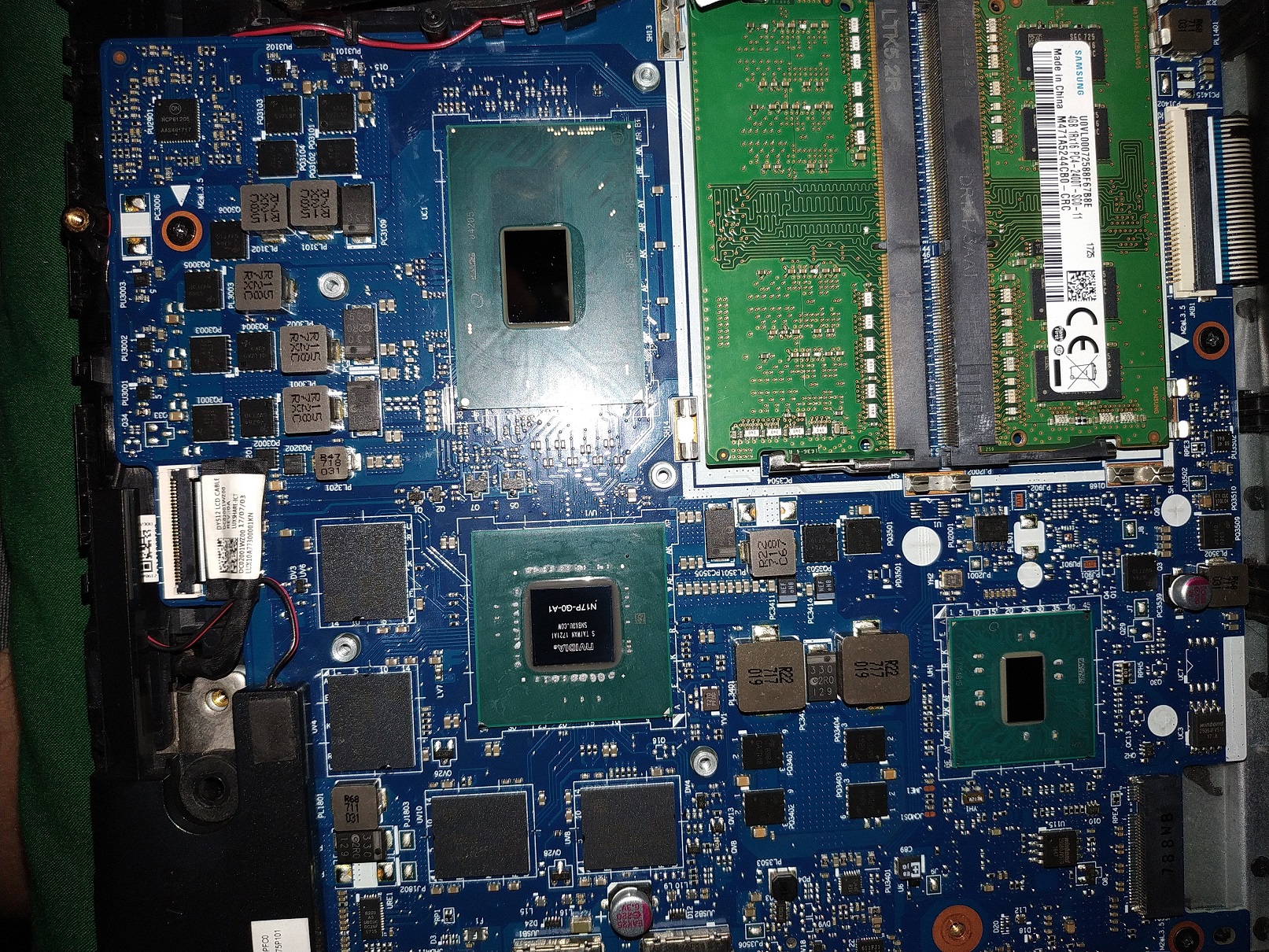

    has anyone done any shunt modding with this particular model? i have attached the mobo picture, if possible could anyone tell me which shunt resistor to be modded or tested. any help is really appreciated


    Attached Files:

    Fearsome_Beast, May 24, 2020
    #1
  2. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    Why lmao

    Mastermind5200, May 26, 2020
    #2
  3. SirLosealot

    SirLosealot Notebook Enthusiast

    Reputations:
    0
    Messages:
    26
    Likes Received:
    4
    Trophy Points:
    6
    Have you got any success with the shunt mod? Mine is a y540 and I am interested too. Do you find any R005 resistors on board? Or maybe the 1050 does not have shunt registers.

    SirLosealot, Jun 4, 2020
    #3
  4. Fearsome_Beast

    Fearsome_Beast Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    power throttling on some games

    that maybe, but there must be a way for the driver to measure power right? maybe the shunt resistor is not like the one on the gtx 1060 and up

    Fearsome_Beast, Jun 9, 2020
    #4
  5. SirLosealot

    SirLosealot Notebook Enthusiast

    Reputations:
    0
    Messages:
    26
    Likes Received:
    4
    Trophy Points:
    6
    Could it be on the otherside of the board?

    According to this disasembly guide, there are lots of... things on the other side (the video quality is not good enough to see what is what) but I saw lots of thing that shape like a shunt registor.
    https://support.lenovo.com/de/en/so...530-81fv-81lb-legion-y540-81sy-81sx-81t3-81q4

    Edit: After looking up the motherboard on aliexpress and check the picture. Still could not find the shunt.

    Last edited: Jun 9, 2020
    SirLosealot, Jun 9, 2020
    #5
  6. seanwee

    seanwee Father of laptop shunt modding

    Reputations:
    671
    Messages:
    1,920
    Likes Received:
    1,111
    Trophy Points:
    181
    Yes, you do need to find the shunt resistors first. But ultimately i dont think there is much to gain from shunt modding the 1050 as its already running very close to desktop clock speeds. Maybe 10% higher clocks overall but thats it.

    The only gpus worth modding are the Max-q gpus which have significantly lower clocks compared to desktop gpus. Comparing shunt modded to stock i gained about 30% more performance on my 2080 Max-q

    seanwee, Jun 20, 2020
    #6
