    Overclocking 4710hq on Y50 by Increasing BCLK

    Discussion in 'Lenovo' started by hdneo, Oct 19, 2015.

  1. hdneo

    hdneo Notebook Guru

    Reputations:
    5
    Messages:
    58
    Likes Received:
    40
    Trophy Points:
    26
    after modding bios i could to unlock 80x multipiler. thanks a lot DUFUS for his help.

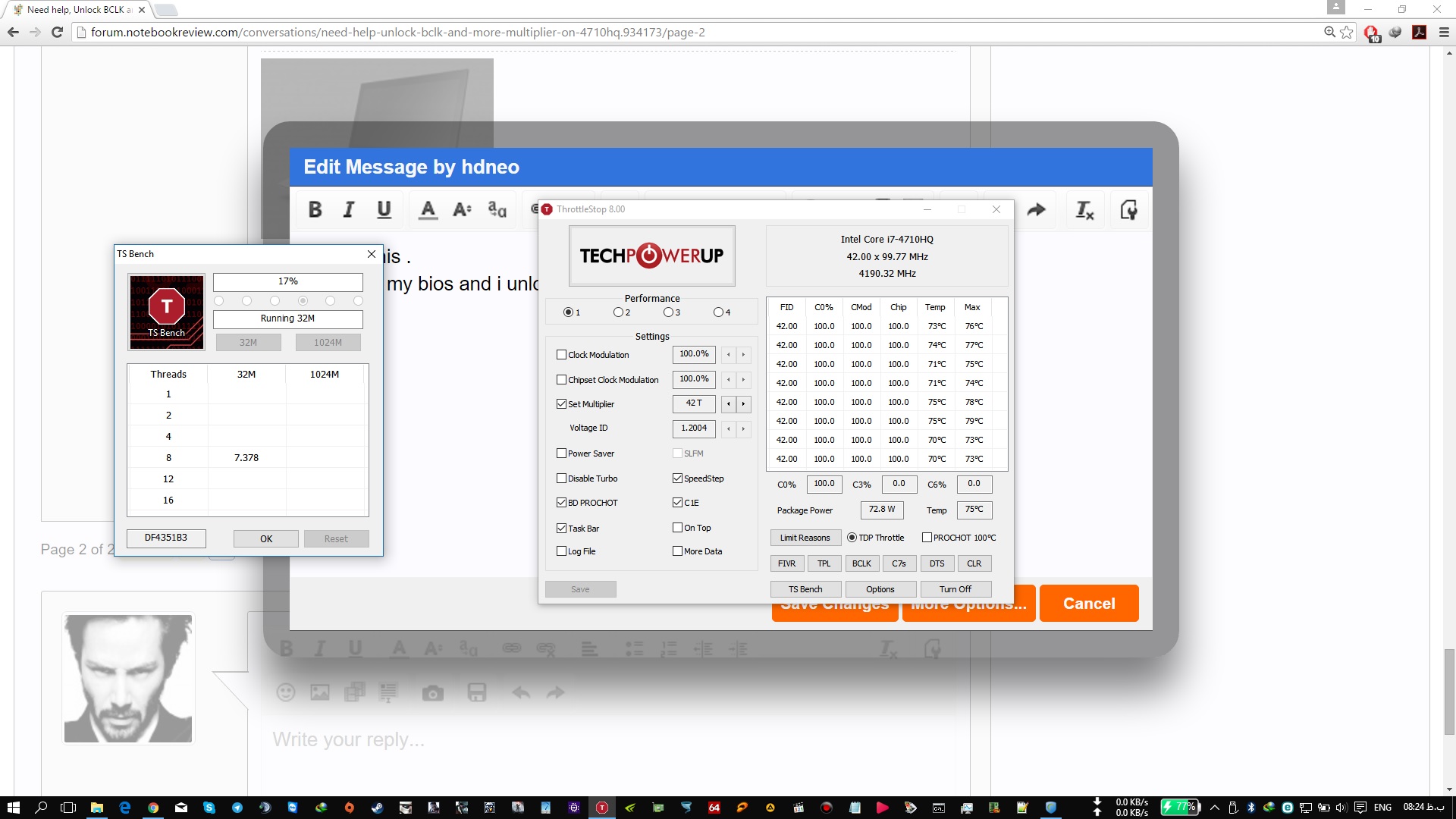

    here is 42x,42x,42x,42x:
    Cpuz validate: http://valid.x86.fr/a30tk1
    [​IMG]

    Last edited: Feb 29, 2016
    hdneo, Oct 19, 2015
    #1
    KeiDash likes this.
  2. hdneo

    hdneo Notebook Guru

    Reputations:
    5
    Messages:
    58
    Likes Received:
    40
    Trophy Points:
    26
    Up!

    hdneo, Feb 29, 2016
    #2
  3. kabangeka

    kabangeka Notebook Enthusiast

    Reputations:
    0
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Holy cow. I'd like to congratulate you on your success.
    I got i5 4200h version.
    My brother have same laptop y50 non-touch screen, i7 4710hq, gtx 860m 2gb.
    How did you unlock bios. And overclock cpu. Can you explain a little bit more.
    Is it run good? Any freezing or blue screen under heavy load?

    Sent from my SGH-M919 using Tapatalk

    kabangeka, Feb 29, 2016
    #3
  4. hdneo

    hdneo Notebook Guru

    Reputations:
    5
    Messages:
    58
    Likes Received:
    40
    Trophy Points:
    26
    yes, there is a bug (hole) to unlock multiplier on first revision of microcode. so i downgrade the microcode. only one problem is tdp so cache ratio clocks down @ 2.1 Ghz. there is no crash or blue screen. i played bf4 and max temp @ 89 Celsius with overclocked GPU.

    Last edited: Mar 2, 2016
    hdneo, Feb 29, 2016
    #4
  5. KeiDash

    KeiDash Notebook Enthusiast

    Reputations:
    0
    Messages:
    13
    Likes Received:
    4
    Trophy Points:
    6
    That's amazing, how do you keep your Y50 from overheating at those clocks?

    KeiDash, Mar 2, 2016
    #5
  6. hdneo

    hdneo Notebook Guru

    Reputations:
    5
    Messages:
    58
    Likes Received:
    40
    Trophy Points:
    26
    my room has low temp, use liquid ultra, use cool pad.I overclock @ 3.8 Ghz 4 Active core for better temp.
    now i am trying to modify EC to run 2 fans @ Max Speed.
    if you noticed, during bios flash via recovery or original update, 2 fans work @ max speed.

    Last edited: Mar 2, 2016
    hdneo, Mar 2, 2016
    #6
    KeiDash likes this.
