    Q: X220 & Kingston 1866Mhz RAM

    Discussion in 'Lenovo' started by Rambler, Feb 24, 2012.

  1. Rambler

    Rambler Notebook Consultant

    Reputations:
    41
    Messages:
    142
    Likes Received:
    3
    Trophy Points:
    31
    Hi,

    I was wondering if anyone is using Kingston's KHX1866C11S3P1K2/8G RAM kit with their X220.

    Also as the SODIMMS are programmed to run at either 1333, 1600 or 1866Mhz, what speed does the RAM run on an X220?

    Thanks

    Rambler

    Rambler, Feb 24, 2012
    #1
  2. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,842
    Likes Received:
    2,172
    Trophy Points:
    581

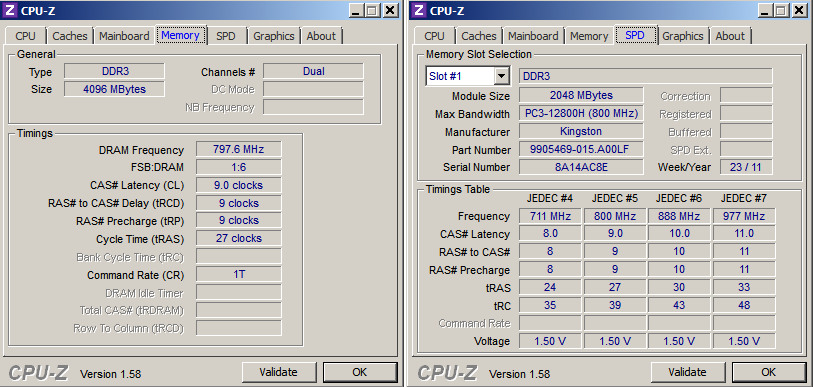

    I've got the 1600MHz modules which include a range of timings (which appear to cover 1866MHz):



    There are actually more timings but CPU-z only shows the four fastest. SiSoftware Sandra reports:

    Timing @ 978MHz : 11-11-11-33 6-47-15-7
    Timing @ 889MHz : 10-10-10-30 5-43-13-7
    Timing @ 800MHz : 9-9-9-27 5-39-12-6
    Timing @ 711MHz : 8-8-8-24 4-34-11-5
    Timing @ 622MHz : 7-7-7-21 4-30-9-5
    Timing @ 533MHz : 6-6-6-18 3-26-8-4
    Timing @ 444MHz : 5-5-5-15 3-21-7-3

    John

    John Ratsey, Feb 24, 2012
    #2
