    T510 Powered USB Port?

    Discussion in 'Lenovo' started by StormShadow, Nov 19, 2010.

  1. StormShadow

    StormShadow Notebook Geek

    Reputations:
    0
    Messages:
    84
    Likes Received:
    0
    Trophy Points:
    15
    I've seen conflicting reports and reviews that the T510 does/does not come with a powered USB 2.0 Port that is "always on" for charging a USB device when on AC power. Can anyone speak to this?

    Thanks!

    StormShadow, Nov 19, 2010
    #1
  2. talin

    talin Notebook Prophet

    Reputations:
    4,694
    Messages:
    5,343
    Likes Received:
    2
    Trophy Points:
    205
    All of your USB ports are "always on", you can select that option in the BIOS. The powered port is the yellow USB port. That just provides more power than a standard USB port does. :)

    talin, Nov 19, 2010
    #2
  3. MidnightSun

    MidnightSun Emodicon

    Reputations:
    6,668
    Messages:
    8,224
    Likes Received:
    231
    Trophy Points:
    231
    Really? I was under the impression that only the yellow USB port is "always on," as selected by BIOS. The other USB ports cut power when the laptop is not powered on. All the USB ports supply the same amount of power, since that's standardized.

    MidnightSun, Nov 19, 2010
    #3
  4. Kaso

    Kaso Notebook Virtuoso

    Reputations:
    744
    Messages:
    3,546
    Likes Received:
    33
    Trophy Points:
    116
    The T510 comes with a powered USB 2.0 that is yellow-coded and located in the back of the notebook. It can be used to charge an external device when the notebook is on, on standby, or off (if plugged in).

    Kaso, Nov 19, 2010
    #4
  5. talin

    talin Notebook Prophet

    Reputations:
    4,694
    Messages:
    5,343
    Likes Received:
    2
    Trophy Points:
    205
    Yep. As a matter of fact, my Asus external blu-ray burner that is USB powered, which has a glowing blue logo on top, stays on when I turn off my computer. I can eject the tray too. That and my external keyboard is plugged into the left side (standard USB ports), and the yellow port on the right is unused.

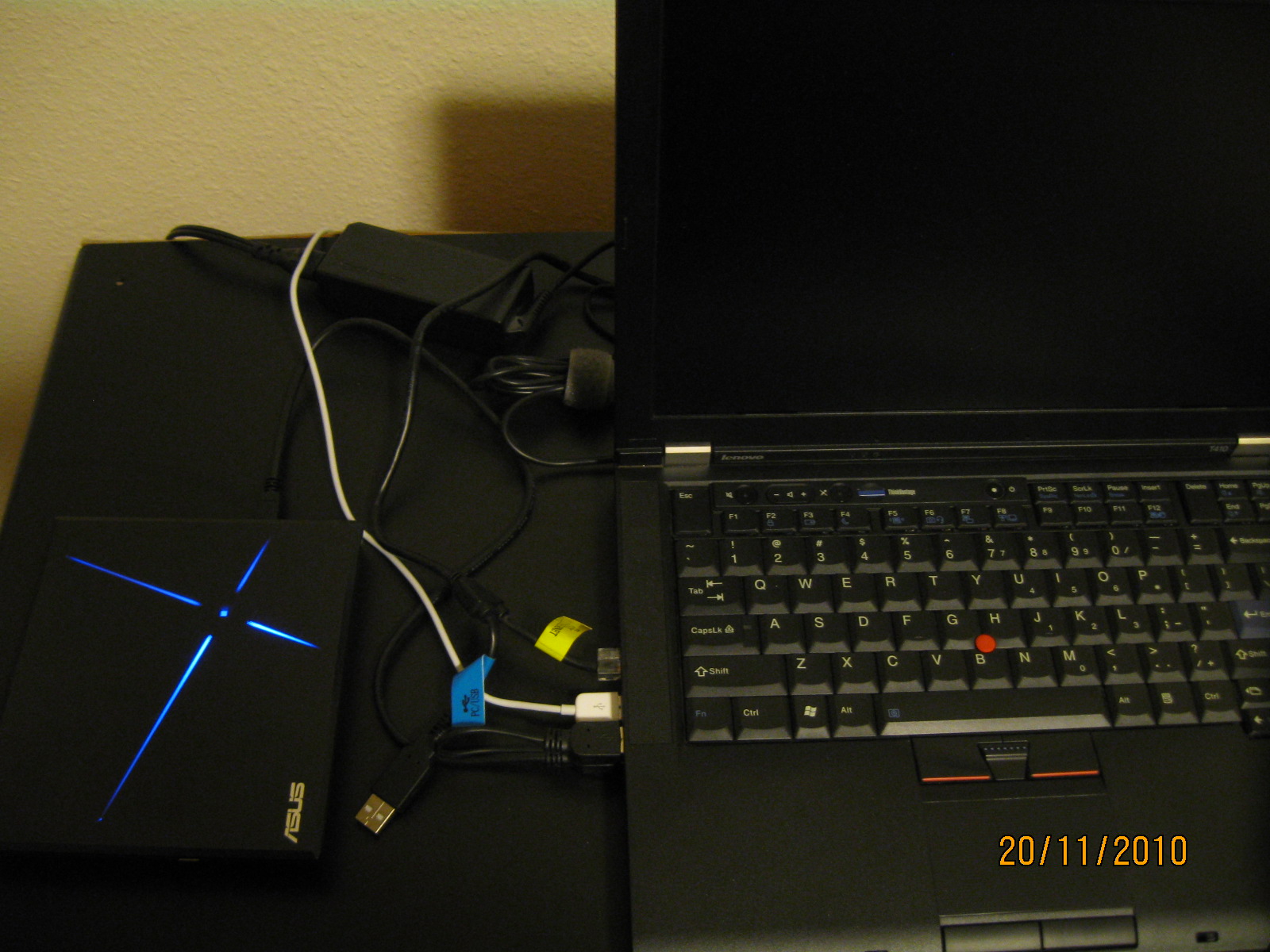

    Edit: I just took a pic, so you don't think I'm full of it. :p


    Attached Files:

    talin, Nov 19, 2010
    #5
  6. lead_org

    lead_org Purveyor of Truth

    Reputations:
    1,571
    Messages:
    8,107
    Likes Received:
    126
    Trophy Points:
    231
    the yellow port can charge iPod, iPad and Blackberry even when the laptop is off, provided the laptop is plugged into the ac power.

    lead_org, Nov 19, 2010
    #6
  7. kevinf

    kevinf Notebook Evangelist

    Reputations:
    11
    Messages:
    662
    Likes Received:
    0
    Trophy Points:
    30
    it doesn't supply more power but it just continues to supply power while in standby or when shut down with the laptop charger plugged in

    kevinf, Nov 20, 2010
    #7
  8. talin

    talin Notebook Prophet

    Reputations:
    4,694
    Messages:
    5,343
    Likes Received:
    2
    Trophy Points:
    205
    But all 4 USB ports on my T410 supply power when it's off...

    talin, Nov 20, 2010
    #8
  9. lead_org

    lead_org Purveyor of Truth

    Reputations:
    1,571
    Messages:
    8,107
    Likes Received:
    126
    Trophy Points:
    231
    The yellow USB can charge blackberry even when the laptop is off. Also I think the yellow USB port can supply 5 watts of power when the laptop is off.

    lead_org, Nov 20, 2010
    #9
  10. kevinf

    kevinf Notebook Evangelist

    Reputations:
    11
    Messages:
    662
    Likes Received:
    0
    Trophy Points:
    30
    yeah but if the laptop is off, the laptop has to be plugged in for it to charge devices off the yellow port. but on standby, you don't need your laptop to be plugged in

    kevinf, Nov 20, 2010
    #10
  11. pnp

    pnp Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    My findings are the same as Roger's. My T510 seems to have all 4 USB ports (the 2 'regular', the 'yellow', and the combined eSATA/USB) powered on when on AC and the system is shut down, so I'm curious about the 'yellow' USB port's special powers.

    I was charging a Sansa clip. Interestingly, and perhaps off topic, I am able to charge and listen at the same time on this device when the laptop is shut down (something I have never been able to do before and even now when the laptop is on).

    pnp, Dec 8, 2010
    #11
