    T530 and Replace Hard Drive with SSD

    Discussion in 'Lenovo' started by brownsl, Sep 11, 2012.

  1. brownsl

    brownsl Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    From reading the forum I am a bit unsure about this so I thought I would seek clarification. I will be ordering a T530 and I want to replace the primary hard drive with an SSD (Samsung 830 256GB).

    I will not be using the removed hard drive so the SSD will be the only drive (other than the DVD) in the laptop. So, I believe I do not need to get the caddy but I want to make sure. Will I need anything else to do the swap out? Will this SSD fit in the space OK?

    Thanks.

    brownsl, Sep 11, 2012
    #1
  2. simplec6

    simplec6 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    1
    Trophy Points:
    6
    You should be good to go as long as you have a plan to either clone the original drive or do a clean install Of win7 with a dvd or usb. Then you should head to lenovos site and get all the updated drivers if you are planning a clean install.

    simplec6, Sep 11, 2012
    #2
  3. Kaso

    Kaso Notebook Virtuoso

    Reputations:
    744
    Messages:
    3,546
    Likes Received:
    33
    Trophy Points:
    116
    This has height of 0.28" or 7mm.

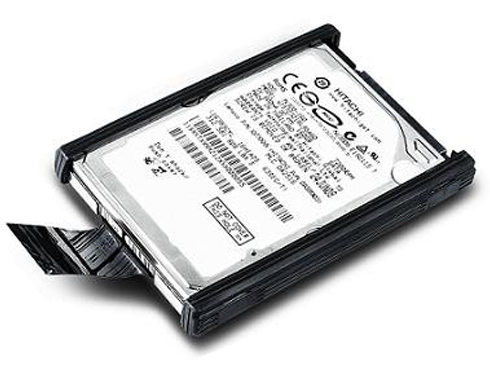

    When you flip your T530 over, pop open the primary bay door and pull out the stock HDD, it will look like this:

    [​IMG]

    Notice the two "rubber spacers" on the two sides of the HDD. Ideally, your replacement SSD's height must match the stock HDD's height.

    Other than that, you do not need to buy anything else.

    Kaso, Sep 11, 2012
    #3
  4. brownsl

    brownsl Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Great! Thanks for the help. I ordered it all today. I am looking forward to having a T530 with a SSD.

    brownsl, Sep 11, 2012
    #4
  5. skriefal

    skriefal Notebook Consultant

    Reputations:
    139
    Messages:
    218
    Likes Received:
    17
    Trophy Points:
    31
    My W530 came with a 7-mm hard drive. Yours probably will too. If so then the rubber bumpers should fit your new Samsung 830. If you ordered a different, 9-mm height SSD then you can purchase bumpers on eBay for a couple dollars -- search for "lenovo rubber bumpers" or "lenovo rubber rails". IIRC the bumpers are the same for all Lenovo laptop models, but you can avoid any uncertainties there by purchasing from a seller who advertises them for your model series (T500/510/520/530).

    skriefal, Sep 11, 2012
    #5
