    T61 LCD panel cover sticking out

    Discussion in 'Lenovo' started by gaconlonton177, Dec 19, 2008.

  1. gaconlonton177

    gaconlonton177 Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    Hi all,

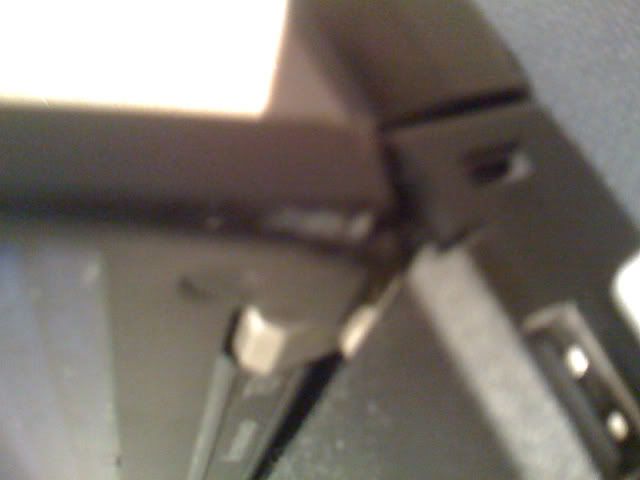

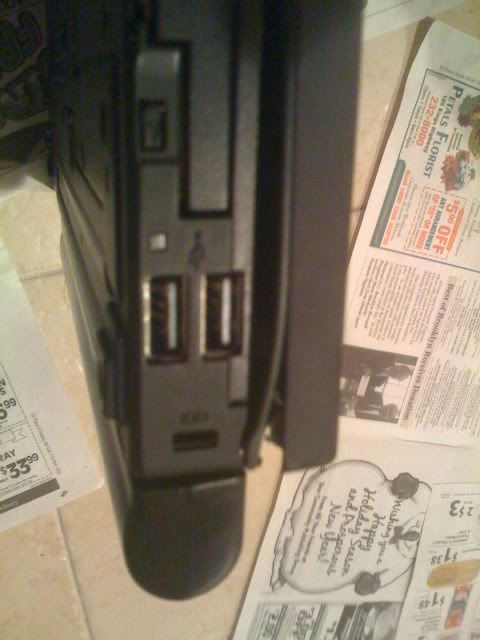

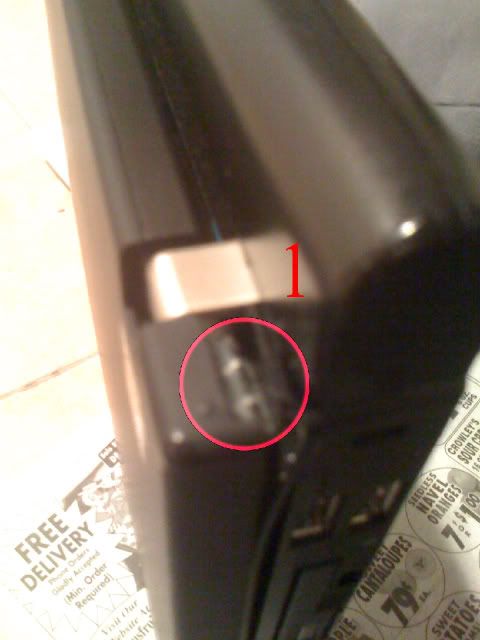

    Yesterday I went to the airport and went through the Xray and there they broke my LCD cover. I don't know how to explain it but the cover of the LCD panel stick out of the panel I am thinking about sending it to Lenovo but as mine was out of warranty so I want to give it a try to fix it myself. I have included some pictures of it

    [​IMG]

    [​IMG]

    [​IMG]

    gaconlonton177, Dec 19, 2008
    #1
  2. ZaZ

    ZaZ Super Model Super Moderator

    Reputations:
    4,982
    Messages:
    34,001
    Likes Received:
    1,415
    Trophy Points:
    581
    Bummer, what did the airport people say?

    ZaZ, Dec 19, 2008
    #2
  3. illini71

    illini71 Notebook Consultant

    Reputations:
    0
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    30
    It looks like it pulled the head of the screw through the bezel. You should just be able to push it back in.

    illini71, Dec 19, 2008
    #3
  4. Blue Diamond

    Blue Diamond Notebook Evangelist

    Reputations:
    39
    Messages:
    312
    Likes Received:
    0
    Trophy Points:
    30
    , did they take a hammer to it?

    Blue Diamond, Dec 19, 2008
    #4
  5. miro_gt

    miro_gt Notebook Deity

    Reputations:
    433
    Messages:
    1,748
    Likes Received:
    4
    Trophy Points:
    56
    SuperGlue FTW

    or you can try with some heat but that can melt stuff too, lol

    miro_gt, Dec 19, 2008
    #5
  6. gaconlonton177

    gaconlonton177 Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    well, the TSA people there said something like Ohh, there is nothing we can do for ya. Ya need to go to the TSA website or call some number and fill out a form. I found their attitude unaceptable because at first, they made me went through the special one-by-one check. So I have one guy did everything for me, including taking stuffs in and out the trays lah blah. I called the number and I'm gonna go up with them there. Too many steps and too much time though, I don't know if they are gonna give me anything or not.

    Well, I tried to push the cover in but there is metal thing prevent me from doing it. The gap between the cover and the panel is at its maximum when I open the lid at around 45 angle. THe metal is shoed as the picture below.
    Thanks for help guys, tell me if you need any information about it like picture or stuffs like that.

    [​IMG]

    gaconlonton177, Dec 19, 2008
    #6
  7. zephyrus17

    zephyrus17 Notebook Deity

    Reputations:
    646
    Messages:
    1,576
    Likes Received:
    0
    Trophy Points:
    55
    Insteal of just pushing it forcefully, you could try unscrewing it and aligning it. If not, call Lenovo and see what they say

    zephyrus17, Dec 19, 2008
    #7
  8. illini71

    illini71 Notebook Consultant

    Reputations:
    0
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    30
    Like i said its the head of the screw you need to unscrew it if you cant push it through. pop off the little screw cover and take out that screw. Its really not a hard fix. You can get a new bezel for around 20 or 30 bucks off ebay.

    illini71, Dec 19, 2008
    #8
  9. gaconlonton177

    gaconlonton177 Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    I am not at home right now so I don't have the tools to unscrew the bezel but I definitely will check it out

    gaconlonton177, Dec 20, 2008
    #9
