    Thinkpad X220 power plug - is this normal? Please check

    Discussion in 'Lenovo' started by thebluesgnr, Dec 5, 2013.

  1. thebluesgnr

    thebluesgnr Notebook Enthusiast

    Reputations:
    21
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Hi all,

    I recently bought this older model at a Lenovo outlet and I'm really enjoying it, but I think I may have a problem.

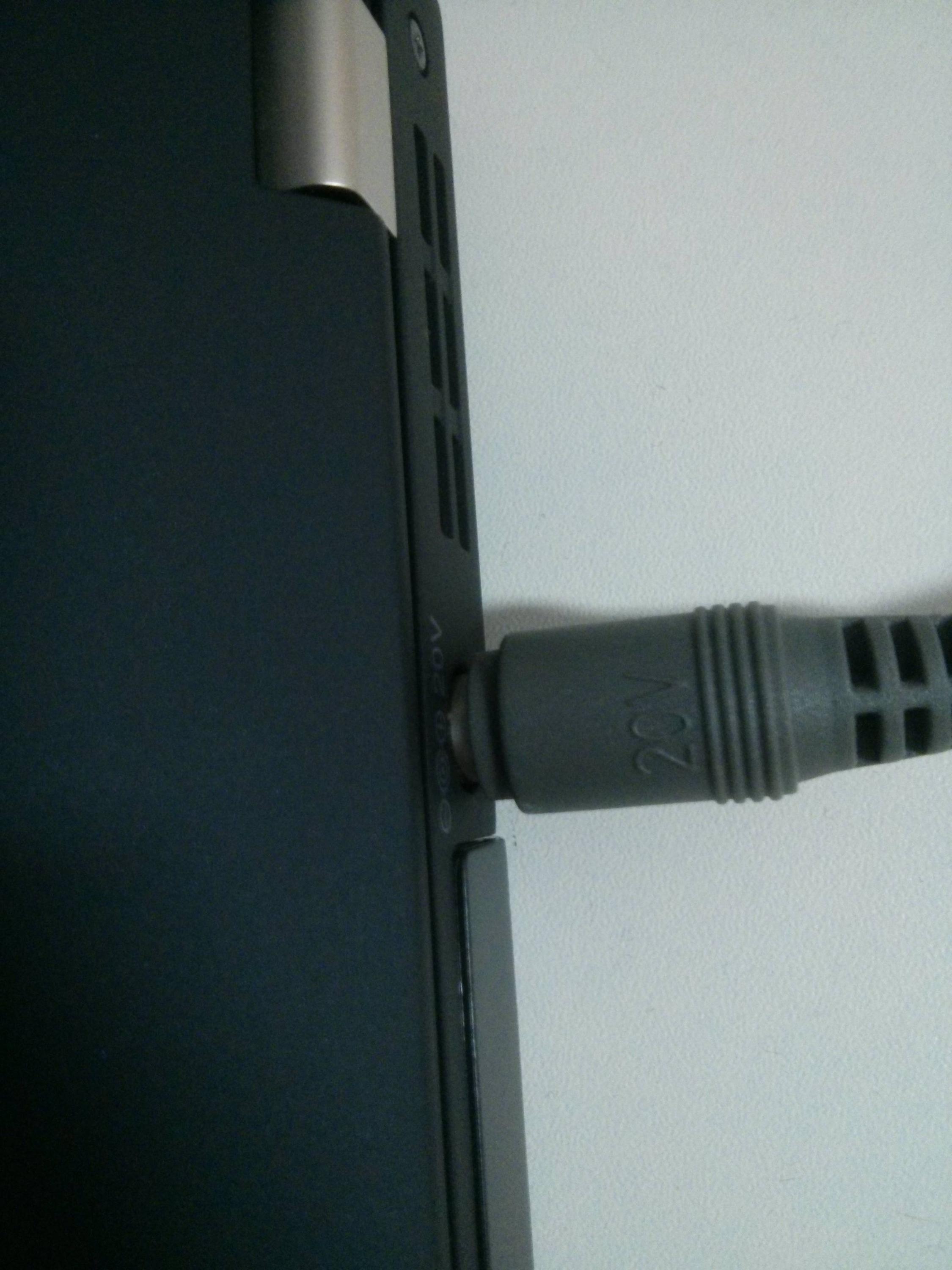

    First is that the power adapter cable doesn't fully go in. Everything apparently works and it charges the battery without a problem. Normally I wouldn't care, but I suspect this may have lead to a second problem.

    The second problem is that the area above the power plug seems to be swollen.

    Anyway, before I call Lenovo for the warranty I was hoping to get some feedback first. I uploaded pictures here, please tell me if your power plug goes in just as much as mine, as pictured.

    Album: imgur: the simple image sharer


    Thanks


    Attached Files:

    thebluesgnr, Dec 5, 2013
    #1
  2. MidnightSun

    MidnightSun Emodicon

    Reputations:
    6,668
    Messages:
    8,224
    Likes Received:
    231
    Trophy Points:
    231
    I believe that's normal, if I remember correctly, the power plug is like that on both my brother's X230 and my dad's X220. What do you mean by "swollen"? Is the plastic itself deformed, or is the piece just bulging out (probably not snapped in properly)?

    MidnightSun, Dec 5, 2013
    #2
  3. thebluesgnr

    thebluesgnr Notebook Enthusiast

    Reputations:
    21
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the reply, that's great to hear! Here's how the case looks: lenovo - Imgur

    thebluesgnr, Dec 5, 2013
    #3
  4. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    I never noticed it until now, but the plug on my x220t doesn't quite go in all the way either... as for the gap, it's probably just some plastic part not fitting quite right; have you flipped the keyboard and looked under it?

    Commander Wolf, Dec 5, 2013
    #4
  5. ALLurGroceries

    ALLurGroceries  Vegan Vermin Super Moderator

    Reputations:
    15,730
    Messages:
    7,146
    Likes Received:
    2,343
    Trophy Points:
    331
    My X220's port looks a little worse than yours and it's completely normal. It's even sagging a bit now with old age. :D

    I am not sure what you are talking about re: "swollen" -- it looks like your battery may not be fully inserted into the bay and locked in place. On the top of your keyboard near the thinkvantage button, that piece of border plastic looks like it may be warped a bit, or just not fully clicked into place. You can see if pushing down on it a bit will make its tab click into place. If not you can try removing and reinserting the keyboard (not fully from the connectors, just to reseat the keyboard itself inside the chassis).

    http://download.lenovo.com/ibmdl/pub/pc/pccbbs/mobiles_pdf/0a60739.pdf#889248558

    ALLurGroceries, Dec 5, 2013
    #5
