    W520 warning: don't load firmware 1.25

    Discussion in 'Lenovo' started by plympton, May 28, 2011.

  1. plympton

    plympton Notebook Guru

    Reputations:
    4
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    15
    It disables turbo boost. Reverting to 1.06 restores turbo boost functionality.

    Went through most of yesterday wondering why my machine was dog slow never going above 2.2 ghz, and a quick Google search revealed the answer. Oh well, so much for rigorous testing before release....

    plympton, May 28, 2011
    #1
  2. ferganer80

    ferganer80 Notebook Consultant

    Reputations:
    185
    Messages:
    199
    Likes Received:
    0
    Trophy Points:
    30
    You can still get turbo boost with 1.25 by choosing max performance for the cpu and fan in the BIOS and using "turbo" or "max turbo" in TP Power Manager.

    ferganer80, May 28, 2011
    #2
  3. huberth

    huberth Notebook Deity

    Reputations:
    57
    Messages:
    898
    Likes Received:
    49
    Trophy Points:
    41

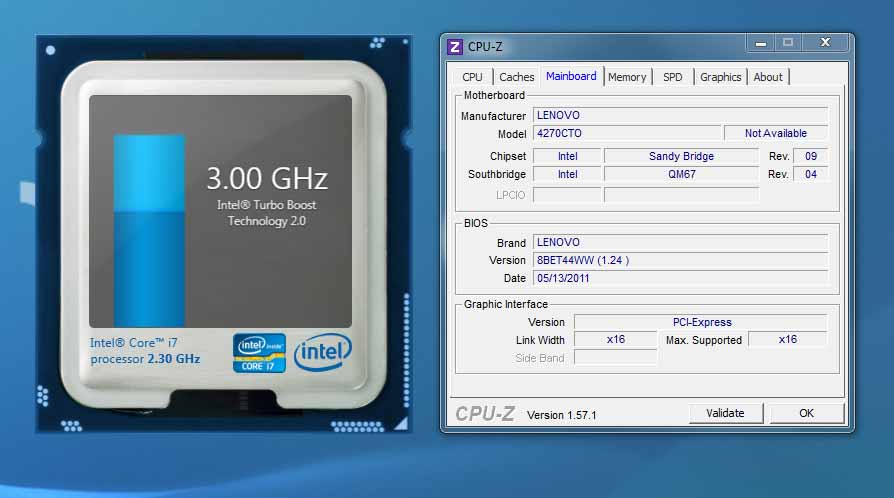

    I am doing 3GHZ with BIOS 1.25 (mislabeled as 1.24). Did you have the power supply plugged in at boot time?


    Attached Files:

    huberth, May 28, 2011
    #3
  4. bogatyr

    bogatyr Notebook Evangelist

    Reputations:
    85
    Messages:
    693
    Likes Received:
    0
    Trophy Points:
    30
    I haven't had any speed issues under 1.25(24). Whether or not it jumps past 2.2 is unknown to me though... it's lightning fast regardless and I run a minimum of 3 virtual machines when my laptop is on.

    bogatyr, May 28, 2011
    #4
  5. plympton

    plympton Notebook Guru

    Reputations:
    4
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    15
    Weird. I know I tried all the permutations, and believe that Max Performance is on in the BIOS. I'm 99% plugged in, and was plugged in when I was trying to get it to work. On battery, it was not going much over 800 MHz, too.

    I'm not the only one experiencing it... could it be a configuration-based thing? My machine was originally a RAID setup (but not anymore)

    W520 TurboBOOST not working after updates. - Page 5 - Lenovo Community

    plympton, May 28, 2011
    #5
  6. huberth

    huberth Notebook Deity

    Reputations:
    57
    Messages:
    898
    Likes Received:
    49
    Trophy Points:
    41
    I have a RAID enabled system too. No problem.

    PS: Perhaps you could you put your system specs in your signature line.

    huberth, May 28, 2011
    #6
  7. wesmain

    wesmain Notebook Consultant

    Reputations:
    1
    Messages:
    126
    Likes Received:
    1
    Trophy Points:
    31
    wesmain, May 28, 2011
    #7
  8. ferganer80

    ferganer80 Notebook Consultant

    Reputations:
    185
    Messages:
    199
    Likes Received:
    0
    Trophy Points:
    30
    I have 2720QM and I did get the downthrottling after the uodate but with a few tweaks in the BIOS and PM I got the turbo boost back.

    ferganer80, May 28, 2011
    #8
  9. wesmain

    wesmain Notebook Consultant

    Reputations:
    1
    Messages:
    126
    Likes Received:
    1
    Trophy Points:
    31
    Hmm. Mine is also set to max performance in Bios and Power Manager. Huh.

    wesmain, May 28, 2011
    #9
  10. huberth

    huberth Notebook Deity

    Reputations:
    57
    Messages:
    898
    Likes Received:
    49
    Trophy Points:
    41

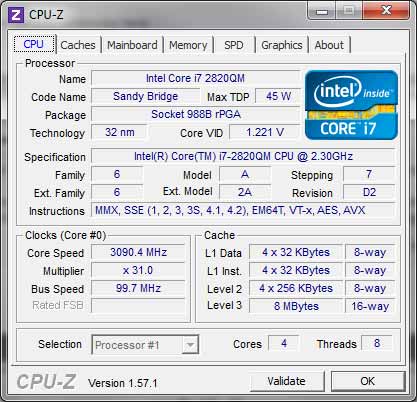

    and here are the pictures to prove it ;)

    I have the motherboard version with the RAID controller. Maybe that makes a difference?


    Attached Files:

    huberth, May 29, 2011
    #10
  11. ST_Jim

    ST_Jim Notebook Enthusiast

    Reputations:
    1
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    So let me see if I've got this straight:
    • I need 1.25 to properly recognize Kingston 1866MHz ram
    • 1.25 prevents turbo boost from working

    Looks like a no win for me. Guess I better settle for 1600 or 1333MHz ram and not worry about it - or wait for Lenovo to sort all this out...

    ST_Jim, May 29, 2011
    #11
  12. huberth

    huberth Notebook Deity

    Reputations:
    57
    Messages:
    898
    Likes Received:
    49
    Trophy Points:
    41
    I am running 1.25, Kingston 1866MHz and Turboboost! Se my earlier post.

    huberth, May 30, 2011
    #12
