    WWAN for my T61

    Discussion in 'Lenovo' started by aoitenshi, Jun 27, 2012.

  1. aoitenshi

    aoitenshi Notebook Enthusiast

    Reputations:
    0
    Messages:
    18
    Likes Received:
    1
    Trophy Points:
    6
    Hello,

    I want to ask about "free PCIe" slot in my T61 7663-DL6
    this is what I get from Sisoft Sandra software

    Computer Buses
    Interface Version : 2.30
    PCI Bus(es) : 8
    PCIe Bus(es) : 6
    CardBus Bus(es) : 1

    System Bus 0
    Type : PCI
    Multiplier : 1x

    System Bus 1
    Type : PCIe 1.00 x16 2.5Gbps
    Multiplier : 3x
    Bridge : Intel Mobile PM965/GM965/GL960 Express PCI Express Root Port
    Device Connected to Port : Lenovo ThinkPad T61

    System Bus 2
    Type : PCIe 1.00 x1 2.5Gbps
    Multiplier : 3x
    Bridge : Intel 82801H (ICH8) PCI Express Port 1


    System Bus 3
    Type : PCIe 1.00 x1 2.5Gbps
    Multiplier : 3x
    Bridge : Intel 82801H (ICH8) PCI Express Port 2
    Device Connected to Port : Intel Wireless WiFi Link 4965AGN

    System Bus 4
    Type : PCIe 1.00 x1 2.5Gbps
    Multiplier : 3x
    Bridge : Intel 82801H (ICH8) PCI Express Port 3

    System Bus 5
    Type : PCIe 1.00 x1 2.5Gbps
    Multiplier : 3x
    Bridge : Intel 82801H (ICH8) PCI Express Port 4

    System Bus 13
    Type : PCIe 1.00 x1 2.5Gbps
    Multiplier : 3x
    Bridge : Intel 82801H (ICH8) PCI Express Port 5

    System Bus 21
    Type : PCI66
    Multiplier : 1x
    Bridge : Intel 82801HBM Hub Interface to PCI Bridge (ICH8M B1 step)
    Device Connected to Port : 65024 RL5c476 CardBus Controller

    System Bus 22
    Type : PCMCIA/CardBus
    Multiplier : 1x
    Bridge : 65024 RL5c476 CardBus Controller
    --

    I want to ask with the blue highlighted items, are those meant that my T61 have spare PCIe slot? can I add a set of WWAN module (like unlocked sierra mc8775 module+antena+sim card slot) into my old T61?

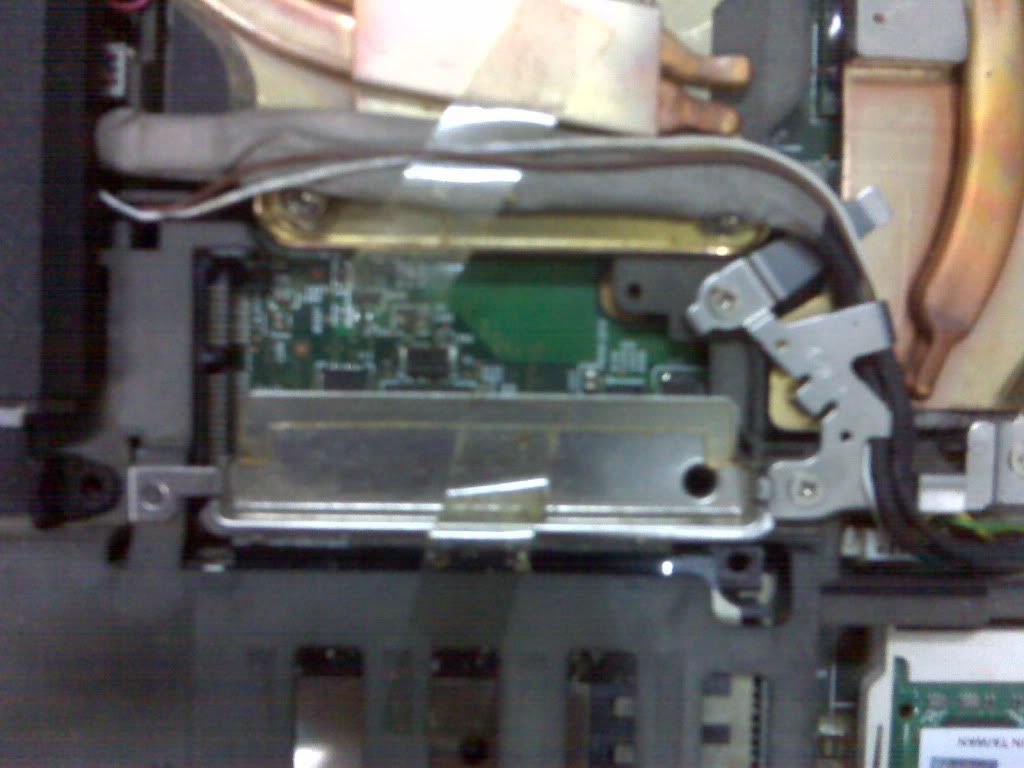

    I took a picture inside my T61 ..
    free PCIe slot on my T61

    does anyone have experience installing WWAN module in their T61 using middleton's bios? :D

    thank you for your answer :D
