    Which display is better?

    Discussion in 'Lenovo' started by higgledy, Nov 17, 2009.

  1. higgledy

    higgledy Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    I read in this forum how an LED backlight is prefered over the CCFL backlight. Is this true? Why does Levovo recommend the CCFL backlight?


    15.4 WXGA TFT, w/ LED Backlight [subtract $49.50]
    15.4" WSXGA+ TFT, w/ CCFL Backlight [Lenovo recommended]

    higgledy, Nov 17, 2009
    #1
  2. Lithus

    Lithus NBR Janitor

    Reputations:
    5,504
    Messages:
    9,788
    Likes Received:
    0
    Trophy Points:
    205
    The first one has a 1280x800 resolution. The second, 1680x1050.

    Lithus, Nov 17, 2009
    #2
  3. ZaZ

    ZaZ Super Model Super Moderator

    Reputations:
    4,982
    Messages:
    34,001
    Likes Received:
    1,415
    Trophy Points:
    581
    There's nothing magical about LEDs. They're brighter and offer some more battery life, but image quality is not necessarily any better.

    ZaZ, Nov 17, 2009
    #3
  4. t30power

    t30power Notebook Deity

    Reputations:
    190
    Messages:
    778
    Likes Received:
    0
    Trophy Points:
    30
    I believe old 4:3 panels were crappier than 'new' 16:10 CCFL powered panels, they have better contrast and more brilliant, even though LED ones offer superior battery life.

    I would pick up a high res CCFL against a low res (WXGA) LED one.

    t30power, Nov 17, 2009
    #4
  5. Stewie Griffin

    Stewie Griffin Notebook Consultant

    Reputations:
    48
    Messages:
    296
    Likes Received:
    0
    Trophy Points:
    30
    Here are some things to consider:

    Size: LED monitors are thinner than CCFL

    Brightness: LED has that glossy finish, making it more susceptible to glare but offers more vibrant colors

    Lifespan- LED again wins in this category. CCFL output decreases over time. End of life is when they are half as bright. LEDs are solid state devices, so that problem wont occur

    Power: LED draws more power

    Cost: LED is more expensive

    You can read all of this at this website.

    http://gamers-underground.com/forum...ticle-about-ccfl-vs-led-wled-lcd-screens.html

    [​IMG]

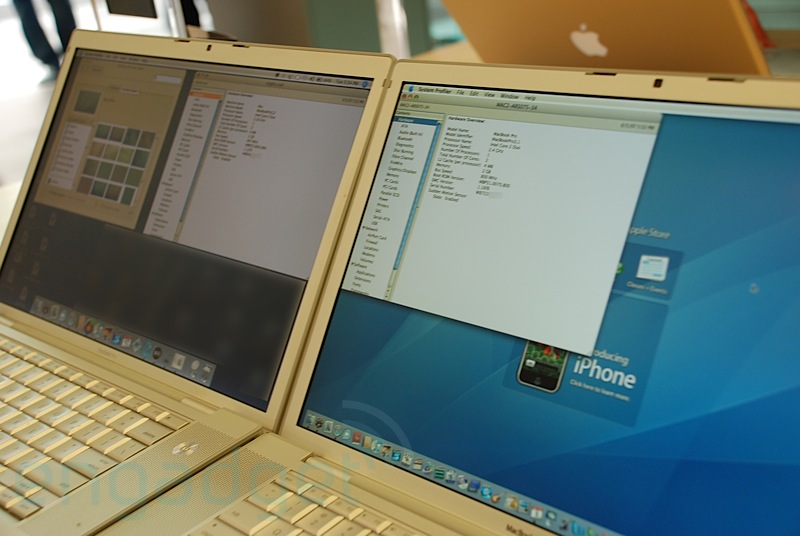

    CCFL left, LED right

    [​IMG]

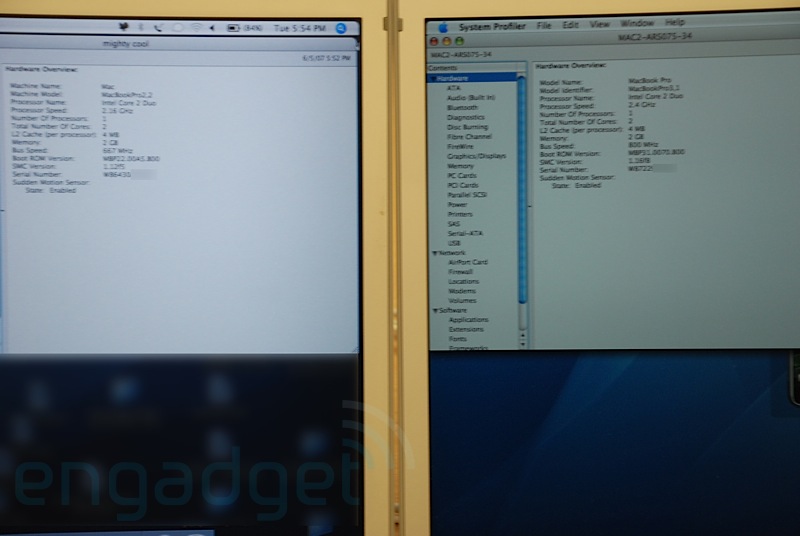

    CCFL left, LED right

    Stewie Griffin, Nov 17, 2009
    #5
  6. ZaZ

    ZaZ Super Model Super Moderator

    Reputations:
    4,982
    Messages:
    34,001
    Likes Received:
    1,415
    Trophy Points:
    581
    That would depend on the panel. The FlexViews on the ThinkPads A31 to T60 were better than anything being offered on a mainstream notebook nowadays.

    ZaZ, Nov 17, 2009
    #6
  7. Thaenatos

    Thaenatos Zero Cool

    Reputations:
    1,581
    Messages:
    5,346
    Likes Received:
    126
    Trophy Points:
    231
    The resolution on the CCFL is why its recommended. 1280x800 in anything bigger then 12in is painful for multi-taskers.

    Thaenatos, Nov 17, 2009
    #7
  8. mtneer

    mtneer Notebook Consultant

    Reputations:
    65
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    How long is that "over time"? I have a CCFL WSXGA+ that's getting to 3 years old and I can barely see whats on the screen in a fluorescent lamp lit office. Its much better under older yellow lamps that I have at home. Working on battery is even worse - no viewing angles.

    mtneer, Nov 17, 2009
    #8
  9. sgogeta4

    sgogeta4 Notebook Nobel Laureate

    Reputations:
    2,389
    Messages:
    10,552
    Likes Received:
    7
    Trophy Points:
    456
    Viewing angle isn't dependent on backlight. It is dependent on the panel type and pretty much all notebooks use TN panels, which have the worst viewing angles.

    sgogeta4, Nov 17, 2009
    #9
  10. Stewie Griffin

    Stewie Griffin Notebook Consultant

    Reputations:
    48
    Messages:
    296
    Likes Received:
    0
    Trophy Points:
    30
    That, I'm not sure of.

    Stewie Griffin, Nov 17, 2009
    #10
  11. cassiohui

    cassiohui Notebook Evangelist

    Reputations:
    32
    Messages:
    378
    Likes Received:
    0
    Trophy Points:
    30
    LED / CCFL backlight has nothing to do with the glossy/matte surface.

    i'm also highly skeptical of that article, in particluar the power consumption bit. according to what i know (and wikipedia http://en.wikipedia.org/wiki/LED-backlit_LCD_television ), led uses less power (up to 40%, says wikipedia). it is literally the first time i've read that led uses more power...

    cassiohui, Nov 17, 2009
    #11
