    Why does Lenovo use such low-quality screens in their notebooks?

    Discussion in 'Lenovo' started by Elite Cataphract, Aug 21, 2008.

  1. Elite Cataphract

    Elite Cataphract Notebook Evangelist

    Reputations:
    9
    Messages:
    511
    Likes Received:
    0
    Trophy Points:
    30
    I'm very interested in the Lenovo T500 notebook. However, after checking several reviews, the screen-quality is not that good. The brightness is low and contrast is not the best it could have been.

    T500 screens resolutions:

    WXGA - 1280×800, 98dpi

    WSXGA+ resolution - 1680×1050, 129dpi

    WXGA w/LED Backlight - 1280×800, 98dpi

    Why does Lenovo use such low-quality screens? A WSXGA+ resolution screen on the T500 only has 129dpi compared to a notebook like the Sony FW190, which has a similar screen with about 350dpi (both use CCFL screens).

    Is there any particular reason why Lenovo uses such low-quality screens?

  2. Aleman

    Aleman Notebook Evangelist

    Reputations:
    84
    Messages:
    319
    Likes Received:
    0
    Trophy Points:
    30
    Uh, 1680x1050 (16:10 aspect ratio) is an industry standard for a 15.4" screen. The Sony's screen has a 16:9 aspect ratio and it's one of the only laptops out there (besides the 13.1 inch Sony Z) that actually has this.

    **edit: I think you're confusing brightness (nits) with pixel density (dpi). Those "dpi" numbers you gave for the Thinkpads are correct but the "dpi" number you gave for the Sony is its brightness in nits.

  3. Elite Cataphract

    Elite Cataphract Notebook Evangelist

    Reputations:
    9
    Messages:
    511
    Likes Received:
    0
    Trophy Points:
    30
    I meant the overall quality of the screen (brightness, contrast etc.) I realize the resolution is different. Even the HP Pavilion Dv5t has better screen quality than the T500 (both having same resolution and screen size). Is there a reason for this?

  4. Aleman

    Aleman Notebook Evangelist

    Reputations:
    84
    Messages:
    319
    Likes Received:
    0
    Trophy Points:
    30
    Uhh, they use different suppliers? Different screen qualities for different price points?

  5. Elite Cataphract

    Elite Cataphract Notebook Evangelist

    Reputations:
    9
    Messages:
    511
    Likes Received:
    0
    Trophy Points:
    30
    My point is, Lenovo should have used high-quality screens for once.

  6. UltraCow

    UltraCow Notebook Consultant

    Reputations:
    12
    Messages:
    275
    Likes Received:
    0
    Trophy Points:
    30
    I can't speak for all of the other resolutions and sizes that Lenovo uses, but atleast for 15.4" WSXGA LCD's, what Lenovo uses are usually pretty decent at minimum.

    They use either LG or Samsung panels for this size and resolution and if you get an LG panel, the quality is probably the best out of any 15.4" WSXGA made. The Samsung is about average quality, but the LG is very good out of the box and superb (at least for a notebook LCD) after some moderate tweaking. :)

  7. Arki

    Arki Super Moderator

    Reputations:
    3,639
    Messages:
    4,135
    Likes Received:
    0
    Trophy Points:
    105
    They did. They used IPS (FlexView) screens for the T60 series.

  8. ColMaki

    ColMaki Notebook Consultant

    Reputations:
    8
    Messages:
    142
    Likes Received:
    1
    Trophy Points:
    31
    I really don't get the point in this questions. Assuming that Lenove CEO is not reading these forums, no one here has any influence on which screen lenovo choose for its laptops. So if you don't like the screens why not buy another brand? I'm saying it for you own good. there is a huge selection of laptop manufacturer out there, and anyone can chose what he likes.

  9. dietcokefiend

    dietcokefiend DietGreenTeaFiend

    Reputations:
    2,291
    Messages:
    3,023
    Likes Received:
    2
    Trophy Points:
    106
    I think they use the same panels as everyone else, but without the glossy treatment they look worse.

  10. cischico

    cischico Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    What the manufacturer puts on paper doesn't necessarily make it a high quality screen. As others stated Lenovo has used IPS in their notebook lineup before. The reason they don't now is because no one makes 15.4" IPS screens. For any given resolution there are only a couple of panels to choose from. For WSXGA+ there is LG and Samsung and Lenovo utilizes both.

    There will be a 15.4" WUXGA RGB LED screen coming soon though. I don't think you can get better than that.

  11. iove

    iove Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    How soon? I'm looking to pick one up in a few weeks.

  12. Paul386

    Paul386 Notebook Evangelist

    Reputations:
    38
    Messages:
    440
    Likes Received:
    0
    Trophy Points:
    30
    I saw that Dell will be using this as well. I wonder how long it will be until it is available. It would definately be worth waiting for the W500 purchase to have a WUXGA LED screen.

  13. ed_h

    ed_h Notebook Consultant

    Reputations:
    0
    Messages:
    175
    Likes Received:
    0
    Trophy Points:
    30
    I have an LG screen for my T61p and I have no issues with it. How can I tweak it to make it better? Thanks :D

  14. UltraCow

    UltraCow Notebook Consultant

    Reputations:
    12
    Messages:
    275
    Likes Received:
    0
    Trophy Points:
    30
    These settings are basically what I use on my T61p on a daily basis.

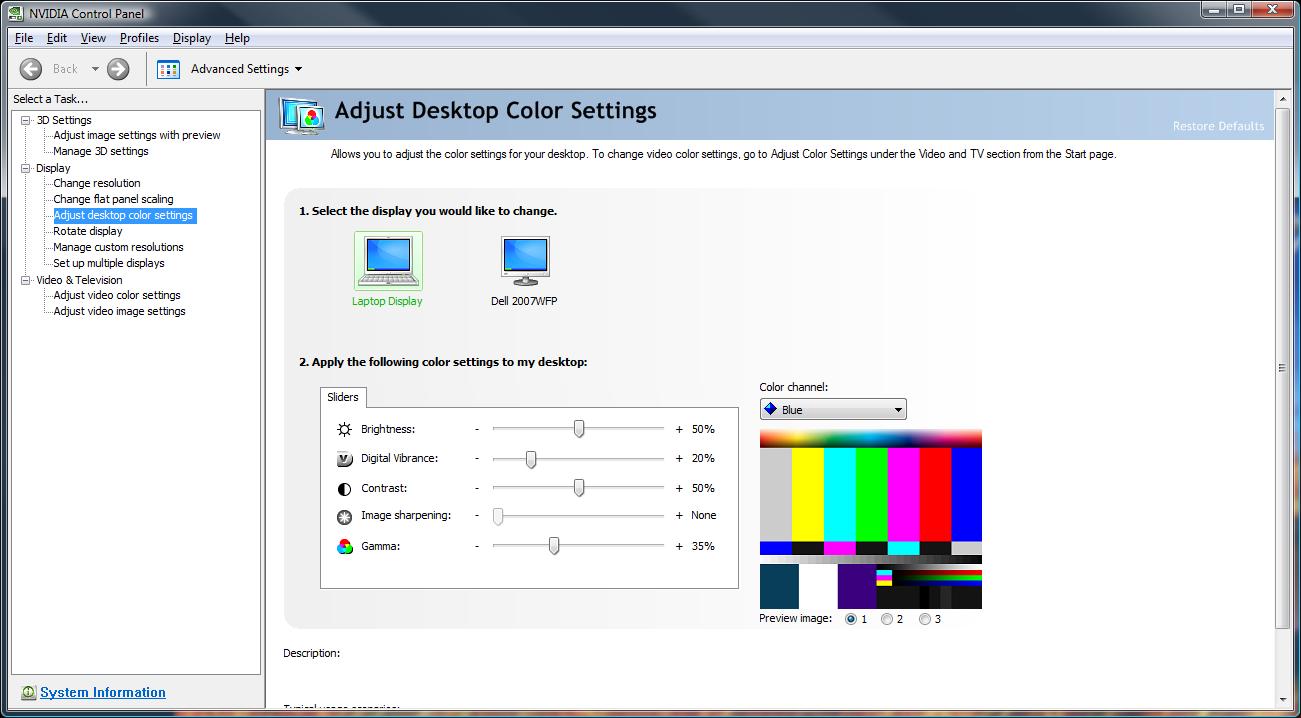

    The only two things I usually tweak in the nVidia Control Panel color settings are:

    Digital Vibrance: 20 (this is more personal preference so play with it a bit and see what you like better)

    Blue gamma: 35% is what I'm using right now and if that's a bit much of a blue cut try 38-40%.

    :EDIT:

    Grabbing a pic to make it easier...
    There we go.

    Sorry about the off-topic! *pushes thread back on the topic of LCD quality*


    Attached Files:
